Move into a new era of possibilities

Simply the best-in-class tractor between 105hp and 145hp, the new MF 5S Series offers a choice of five models with a totally new, upgraded design incorporating the iconic sabre line livery.

Agile and nimble, it offers best-in-class visibility combined with excellent manoeuvrability from its tight, 4m turning radius. Delivering great performance, the MF 5S combines economy with high levels of comfort and control along with a wide choice of equipment and options to suit all applications.

Developed to tackle all challenges and tasks on the farm efficiently and economically, the MF 5S is indisputably the first choice for contractors, dairy, livestock and arable farmers as well as other producers.

Key Benefits

Straightforward and Dependable

The muscle to tackle any task
AGCO Power Engine

AGCO Power Engine

All MF 5S tractors are powered by a new AGCO Power four cylinder, 4.4 litre, Stage V engine, which delivers maximum powers from 105hp to 145hp and up to 550Nm of torque on the largest model.

All-in-One SCR Technology

All-in-One SCR Technology

These compact engines use the advanced and highly efficient All-In-One SCR Technology.

Performance

Performance

Further improving performance and emissions control is the electronic wastegate on the turbocharger, while the automatic low idle engine speed also cuts fuel consumption.

After-Treatment Components

After-Treatment Components

All the after-treatment components are located on the right side, below the cab, so there is no impact on visibility or cab access. This position maintains the good ground clearance and service access and allows fuel tank capacity to be increased to 200L.

Airflow System

Airflow System

A new optimised airflow system improves engine cooling, which increases performance and boosts efficiency.

Dyna-4

Dyna-4

The impressive performance and efficient design of the Dyna-4 transmission provides unbeatable productivity, control and convenience, with completely clutchless shifting of 16 forward and 16 reverse speeds.

Power Control

Power Control

The Power Control lever provides convenient three-in-one, straightforward operation. Operators can shuttle between forward/reverse, shift Dynashift speeds and ranges and select neutral, leaving the right hand free.

Right-Hand T-Handle

Right-Hand T-Handle

Renowned for its outstanding, robust reliability with smooth and effortless operation, Dyna-4 is easy to operate using the left-hand Power Control Lever or the T-lever on the right-hand console on Essential models.

Multipad - Control at the Palm of your Hand

Multipad - Control at the Palm of your Hand

As standard on Efficient and Exclusive, the Multipad lever operates the transmission as well as controlling cruise control, the rear linkage, PTO, headland management, spool valves through the integrated mini-joystick.

Speedmatching as Standard

Speedmatching as Standard

Speedmatching automatically selects the correct Dyna-4 speed to match the forward speed when changing gears.

Brake to Neutral

Brake to Neutral

Brake to Neutral switch (Option) simultaneously operates the clutch as soon as the brake pedal is pressed. This eases the load on the operator, while increasing efficiency and convenience and is particularly useful for loader operations.

Supercreep

Supercreep

Close control in specialist low-speed tasks is assured with additional supercreep gears, enabling forward speeds as low as 100m/hr to be achieved.

Comfort Control

Comfort Control

Smooth or quick shuttling – you choose by simply adjusting the Comfort Control that suits the job – slow and smooth or fast and efficient.

Dyna-6

Dyna-6

Delivering class-leading dynamic performance and reliability, the semi-powershift transmission consists of six Dynashift ratios, optimally stepped in four ranges and changed without recourse to the clutch pedal.

Automatic mode

Automatic mode

Taking automatic care of up and downshifting to maximise versatility and output. Response point is adjustable according to desired engine rpm parameters.

SuperEco

SuperEco

Automatic mode also cuts costs, with standard SuperEco ensuring top speed is achieved at a very low engine rpm, cutting fuel consumption – achieving 40km/hr @ 1,550rpm and 50km/hr @ 1,800rpm (depending on tyres).

The MF 5S Series is engineered for hard work with uprated lift capacities that allow it to carry heavier loads and work faster with modern machines and implements.
High Capacity Rear Linkage

High Capacity Rear Linkage

Specifically optimised for the new MF 5S, the rear linkage now boasts an impressive lift capacity of up to 6,000kg (+14% vs previous range), in some specific circumstances, enabling it to lift and handle heavy mounted equipment with ease.

Hydraulics Adjustment

Hydraulics Adjustment

Fully adjustable lift rods and heavy-duty stabilisers provide plenty of adjustment for the perfect attachment and setting for a wide range of mounted and semi-mounted implements.

Auxiliary Spool Valves

Auxiliary Spool Valves

A wide choice of spool valves and control options help you make the most of using modern implements as well as ease operation. Depending on your tractor’s specification, you’ll find up to four spool valves to meet all your requirements.

Essential Version - Spool Valves

Essential Version - Spool Valves

There’s straightforward mechanical control of the spool valves on Essential versions, with the addition of a comfortable dedicated joystick option for precise loader control.

Efficient Version - Spool Valves

Efficient Version - Spool Valves

In Efficient models you’ll find new, armrest-mounted fingertip switches for the 1st & 2nd spool valves, which work in combination with mechanically operated levers for the 3rd & 4th spool valves.

Exclusive Version - Spool Valves

Exclusive Version - Spool Valves

Exclusive version operators benefit from a new armrest-mounted electronic joystick for the control of the four spool valves.

Heavy-duty Integrated Front Linkage System

Heavy-duty Integrated Front Linkage System

With its 3,000kg lift capacity (+17% vs previous range), at the ball ends, the new stronger, compact Integrated Front Linkage System enables you to take full advantage of the power of the MF 5S Series.

Close-Coupled Front Linkage

Close-Coupled Front Linkage

Redesigned to match the new optional front suspension, the close-coupled front linkage is an integral part of the design, maintaining the tractor’s compact dimensions, while enhancing stability and manoeuvrability.

Industry-leading Electronic Linkage Control (ELC)

Industry-leading Electronic Linkage Control (ELC)

The latest Electronic Linkage Control (ELC) system provides precise and responsive operation of the linkage functions, ensuring accurate control of the working depth for soil-engaging implements and working height for mounted implements.

ELC Potentiometer

ELC Potentiometer

Accurate electronic control provides convenient linkage operation. The ELC potentiometer is positioned to the right of the operator for comfortable and easy use, providing precise control of implement depth as well as lifting and lowering the linkage.

Electronic Lift Control Panel

Electronic Lift Control Panel

The Electronic Lift Control panel provides straightforward adjustment of other rear linkage functions helping to improve productivity.

ELC Standard Features

ELC Standard Features

Useful standard features include Active Transport Control, which automatically absorbs shocks on the road, as well as external lift/lower controls, located on the right and left-hand fenders.

Standard Open-Centre 58 litre/min system

Standard Open-Centre 58 litre/min system

The system provides plenty of flow and pressure to the linkage and external hydraulic functions for lifting heavy equipment or powering ancillary accessories.

Optional Open-Centre Combined Flow 100 litre/min

Optional Open-Centre Combined Flow 100 litre/min

This system employs a simple, novel design to generate continuous flow. This provides full flow to separate functions, such as the linkage and spool valves, as well as provide higher efficiency and power for loader applications.

Optional Closed-Centre, high-flow 110 litre/min

Optional Closed-Centre, high-flow 110 litre/min

This system with the fastest hydraulic response. This employs a variable displacement swash plate pump and load-sensing control to deliver high flowrates at low engine speeds, helping to maintain high output with economy.

High efficiency PTO

High efficiency PTO

A straightforward driveline to the Independent PTO delivers maximum power and efficiency. There is a choice of three speeds, selected easily using rocker switches, conveniently located on the console.

PTO Engagement

PTO Engagement

The PTO is engaged electro-hydraulically, using a three-position safety switch (On, Off, and Lock/Brake). The PTO can also be engaged and disengaged using external fender-mounted switches.

Compact and manoeuvrable, MF 5S tractors are easy and comfortable to use – in the field, on the road and around the farmyard and buildings.
Automated Control

Automated Control

A smart transmission controller automates frequently-used functions, including differential lock, PTO and Speedmatching transmission.

Hydralock

Hydralock

Hydralock delivers true four-wheel drive with fast and fully simultaneous engagement of the front and rear differential locks.

Driveshaft

Driveshaft

Centre-mounted (enclosed) driveshaft offers excellent ground clearance.

Front Axle Suspension

Front Axle Suspension

A new, stronger suspended front axle offers an industry-leading 4m turning radius. Working with the new 3t capacity front linkage, which can now lift an extra 500kg, it helps improve efficiency, enabling the tractors to use larger front-mounted equipment.

Hydraulic Suspension

Hydraulic Suspension

Extra comfort is offered by the electronically-controlled hydraulic suspension, which uses two longer stroke cylinders (100 mm) and three accumulators to absorb shocks.

SpeedSteer

SpeedSteer

This new, optional feature enables the operator to adjust the steering ratio and select the optimum number of turns of the steering wheel required for a given amount of steering angle turns.

Tight Turning Circle

Tight Turning Circle

Specially designed cutaways in the chassis and bonnet help deliver a turning radius of 4m - one of the best on the market, making it easier to access confined areas and buildings - helping you work more easily.

Fade Free Braking

Fade Free Braking

Safe and efficient braking from large disc brakes cooled by constant pressure lubrication. For even better safety in transport applications, this system is now completed by pneumatic or dual hydraulic lines as well as an ABS socket.

Rear Hitches to match any application

Rear Hitches to match any application

The rear hitch has been completely redesigned and increased to make coupling quicker, easier and safer and comes with a new choice of pintle pin, pick-up hitch, clevis, K80 ball or drawbar.

Operators of the new MF 5S series sit comfortably in a high quality, productive environment that is quiet and cool with straightforward controls making it easy to get the best from the tractor.
Ergonomics

Ergonomics

Large doors and wide, well-spaced steps offer easy access to the MF 5S cab. Here you will find all operating information is where you need it on the comprehensive new dashboard.

Armrest

Armrest

The new armrest houses all the key elements, offering a blend of simplicity and ease of use, with all main functions ergonomically grouped. Here you will also find quick and convenient controls for other items such as Bluetooth phone and radio.

Benefit from top class comfort

Benefit from top class comfort

The MF 5S helps you to boost productivity, save time and improve performance thanks to its 360° visibility, easy access and new cab suspension.

Comfort Features

Comfort Features

Features include automatic beacon activation on the road and a ‘return home’ function, which automatically switches off the worklights and has a comfort cab light delay so you can safely leave.

Cab Features

Cab Features

There’s also extra sockets for mobile phones or laptop, radio and MP3 player (USB, Aux and CD), Bluetooth connection, DAB + digital radio, telescopic side mirrors and electric de-icing, plus automatic air conditioning.

Optional 12 LED Lights

Optional 12 LED Lights

The addition of the option of up to 12 LED working lights provides outstandingly bright illumination.

Seats

Seats

For top class comfort, you’ll find a choice of seats to suit the work you do. Mechanical suspension is ideal for road applications, while a choice of automatic, air suspended seats give extra comfort for long working days.

Dashboard with SIS – Setup and Information Screen

Dashboard with SIS – Setup and Information Screen

The clear, sharp and easy to read 70mm x 52mm colour screen shows a range of information including tractor performance, working area, working distance, fuel and AdBlue® consumption as well as engine and transmission temperature.

Select the roof to suit

Select the roof to suit

A choice of cab heights and roof types allow you to tailor your MF 5S Series tractor to offer excellent access to buildings and suit your exact needs.

Standard Cab Position

Standard Cab Position

The standard cab position has a fully flat floor and, combined with the standard roof and cab suspension option, offers optimum comfort.

Low Cab Position

Low Cab Position

The low position cab structure is the same, but the frame is mounted lower down, reducing the overall height and providing excellent access to buildings.

Better by design

Better by design

With the introduction of the MF 5S, Massey Ferguson continues its striking new era design first seen on the advanced, new MF 8S Series, following the same striking ‘neo-retro’ livery with modern headlights and LED signature.

Heritage

Heritage

This design pays tribute to the brand’s heritage, incorporating an interpretation of the iconic MF grey sabre stripe on the side and horse head collar motif on the bonnet, which dates back to the MF 100 series.

The MF 5S Series is equipped to a high standard specification, which is complemented by useful optional equipment packages that help you get job done more easily and efficiently. All information regarding these packages can be found in the table below.
Essential Specification

Essential Specification

Essential is the base specification for the MF 5S Series, but it is anything but basic. It provides all the key elements you would expect from MF, with a blend of simplicity, ease of use and versatility to fit the needs that require power and performance.

Essential Panoramic cab

Essential Panoramic cab

The Essential Panoramic cab option provides ultimate, all-round visibility for maintenance operations. The wide, one-piece polycarbonate screen is extremely tough and protects operators from flying debris.

Efficient specification

Efficient specification

Equipped with key, productivity enhancing features, the Efficient package helps you to work faster, to a higher standard and with more accuracy.

Exclusive specification

Exclusive specification

Exclusive tractors, equipped with many advanced features, are designed for more intensive, larger-scale operations seeking cost-effective benefits for the business.

A range of technology in the MF 5S helps you manage your operations and business more effectively and efficiency. Offering these advanced systems in the 105hp to 145hp sector clearly shows the pace of innovation and progress being set by Massey Ferguson. More than ever before, modern progressive farmers are relying on data and information to keep vital records, improve efficiency and productivity to increase yields, reduce costs and increase returns. Massey Ferguson’s straightforward, dependable and intuitive technology is easy to use helping owners and operators to operate equipment more effectively, analyse operations and make informed decisions to increase profits.
Datatronic 5 - Standard on Exclusive, Optional on others

Datatronic 5 - Standard on Exclusive, Optional on others

The Datatronic 5 system literally puts all the functions of the MF 5S tractor at the operator’s fingertips via its smart 9in touch-screen.

Fieldstar 5

Fieldstar 5

The new Fieldstar 5 terminal is designed in order to create a more intuitive Precision Farming experience, providing a system that delivers a straightforward an easy to use experience, improving efficiency, productivity and profitability.

MF Guide

MF Guide

MF Guide is MF’s full featured, hands free steering system, available on new tractors or as an after-market installation. It is capable of delivering sub-metre, decimetre and centimetre accuracy, increasing the efficiency of your farming.

MF Section Control

MF Section Control

With the fully automatic Section Control for ISOBUS implements, operators can apply seeds, fertilizer or Crop protection products without overlapping. This prevents double treatment and areas worked outside of the field edges.

MF Task Doc

MF Task Doc

The MF Task Doc system has a real place in the future of agriculture, helping farmers to become more productive through the knowledge brought by putting precision-measured data at the business owner’s fingertips.

MF Connect

MF Connect

MF Connect service enables you — and your dealer — to coordinate, optimize and seamlessly connect your fleet, to better manage maintenance and remotely monitor equipment in the field.

Operator Environment - Package Specifications







Essential



Efficient



Exclusive

Information about

the different packages

Essential is the base specification for the MF 5S Series, but it is anything but basic. It provides all the key elements you would expect from Massey Ferguson, with a blend of simplicity, ease of use and versatility to fit the needs that require power and performance.

Equipped with key, productivity enhancing features, the Efficient package helps you to work faster, to a higher standard and with more accuracy.

Available for all MF 5S Series tractors, Efficient versions can come with either a Dyna-4 or Dyna-6 transmission, both with Automatic mode as standard.

Loader-ready tractors can be specified with an electronic multi-function joystick option, which is integrated into the armrest console. As well as operating the loader and transmission functions, this can also be used to control the optional front linkage.

Exclusive tractors, equipped with many advanced features, are designed for more intensive, larger-scale operations seeking cost-effective benefits for the business.

The Exclusive armrest provides a range of useful features, offering extra comfort and convenience for the operator when operating a range of frequently-used controls.

The ISOBUS compatible Datatronic 5 terminal is standard. With its new design and easy to use intuitive icons, the 9in touch-screen monitor displays key machine operating information and records as well as providing memory functions. Datatronic 5 can operate any ISOBUS compatible implement and also oversees the automation of headland management, trailed implement control (TIC) and Dual Control. The display can be connected to a camera for improved visibility of rear mounted implements and trailers.

Standard Features

- Control Centre with T-handle transmission lever.
- Dyna-4 with Speedmatching or Dyna-6 - 40km/hr Eco with Automatic mode.
- Brake to Neutral disengages transmission into neutral when you brake.
- Mechanical control of spool valves.
- Air Conditioning.
- Telescopic large side mirrors, with wide angle.
- Radio aerial and speakers.
- Air Suspended Swivel Seat with armrest.
- Mechanical cab suspension.
- Multi-function armrest with Multipad.
- Dyna-4 or Dyna-6 transmission with Automatic mode.
- Air-conditioning with manual adjustment.
- Auto Air-suspended swivel seat with armrest.
- Electrical and mechanical controls of spool valves.
- Large, telescopic side mirrors with wide angle.
- Radio/ CD / MP3 Front Aux-in / Bluetooth with micro and controls in armrest.
- Two USB ports.
- Mechanical cab suspension.
- Multi-function armrest with Multipad lever.
- Dyna-4 or Dyna-6 transmission with Automatic mode.
- Auto Air Conditioning.
- Superluxe air suspended seat.
- Four electrically operated spool valves.
- Large, telescopic side mirrors, with wide angle, electric de-icing & adjustment.
- Radio/ CD / MP3 Front Aux-in / Bluetooth with micro and controls in armrest.
- Two USB ports.
- New Datatronic 5 ISOBUS terminal to manage all tractor functions.

Optional Features

- Integrated Front Linkage System and PTO.
- Mechanical multi-function loader joystick.
- MF Connect Telemetry system ready.
- ISOBUS compatible Fieldstar 5 terminal for full precision farming package including video, MF Guide guidance system, MF Section Control, MF Rate Control and MF TaskDoc™.
- Panoramic cab with polycarbonate right-hand side window.
- Integrated Front Linkage System (IFLS) and PTO.
- MF Connect Telemetry system ready.
- ISOBUS compatible Fieldstar 5 terminal for full precision farming package including video, MF Guide guidance system, MF Section Control, MF Rate Control and MF TaskDoc™.
- Superluxe Air Suspended Seat.
- Integrated Front Linkage System (IFLS) and PTO.
- MF Connect Telemetry system ready.
- ISOBUS compatible Fieldstar 5 terminal for full precision farming package including MF Guide guidance system, MF Section Control, MF Rate Control for variable rate applications and MF TaskDoc™ as well as video.
- Superluxe Air Suspended Seat.

Tractor-loader

The MF 5S Series tractors are specifically designed to deliver optimum handling ability when working with MF FL Series loaders. Together they are the best-in-class combination, with the fully integrated loader now available factory-fitted to deliver ultimate performance.

Unrivalled loader features

• Excellent visibility down to just 4m ahead of the tractor over new slim dashboard and the narrowest steep-nose bonnet in the sector
• Highly manoeuvrable, agile design
• Two cab positions and a choice of Standard or Visio roof
• A choice of three hydraulic systems providing exceptional pressure, flow and response
• Left-hand Power Control lever or right-hand T-handle to change direction, shift speeds and select neutral
• A choice of joysticks operate the loader as well as change direction and speeds
• Brake to Neutral – braking system puts the transmission into neutral when the brake pedal is pressed, making loader operation safer, easier and much more comfortable
• ‘Comfort-Control’ - Adjustable shuttle sensitivity – from slow and smooth to fast and dynamic direction changes
• Tractors can be ordered with factory-fitted loaders.

MF FL Series loaders

• Designed for fitting to MF 5S Series tractors
• Clean loader arm design offers unrivalled visibility and safety
• Enclosed pipework reduces the risk of damage
• ‘Lock & Go’, semi-automatic connection and removal system simplifies mounting
• Fast coupling of all hoses
• Soft Drive protects operators and the machine from shock loads
• Fully integrated operation through the range of MF 5S Series joysticks
• Simple fitting of a wide range of implements.

Ultimate loader specification

The MF 5S Series is available complete with a factory-fitted loader. Alternatively, the tractors can also be ordered as ‘loader ready’, equipped with a range of unrivalled factory-fitted features, only requiring mounting the loader and attachments
• Fully integrated loader sub-frame
• Pre-installed hoses to the spool valves mounted on the loader bracket
• Choice of mechanical or electronic joysticks

Mechanical or Electronic control provides:
• Additional functions set on the dashboard SIS display
• Automatic bucket shaking system*
• Automatic engine speed selection when joystick is moved*
• Hydraulic in-cab implement locking
• Hydraulic flowrate setting*
• Loader suspension on/off
• Brake to Neutral
• Operation of the 3rd and 4th loader functions

*Available with electro-hydraulic loader valve.

Available Models

Model

Max Power (hp)*

Engine

Transmission

Max Torque (Nm)**

Lift Capacity (kg)

MF 5S.105 105 AGCO Power 4.4L, 4 cylinders Dyna-4, Dyna-6 440 6,000
MF 5S.115 115 AGCO Power 4.4L, 4 cylinders Dyna-4, Dyna-6 460 6,000
MF 5S.125 125 AGCO Power 4.4L, 4 cylinders Dyna-4, Dyna-6 520 6,000
MF 5S.135 135 AGCO Power 4.4L, 4 cylinders Dyna-4, Dyna-6 540 6,000
MF 5S.145 145 AGCO Power 4.4L, 4 cylinders Dyna-4, Dyna-6 550 6,000
* @2,000rpm | ** @1,600rpm | Choice of ESSENTIAL, PANORAMIC CAB, EFFICIENT OR EXCLUSIVE SPECIFICATION FOR ALL MODELS

YOUR COURTESY FLEET

- BEST-IN-CLASS CUSTOMER SUPPORT
- MAXIMUM EFFICIENCY
- TOTAL TRUST

THE ULTIMATE PROOF OF DEPENDABILITY

Available through participating MF Dealers, MF Always Running provides a temporary replacement machine to ensure owners can continue working with minimum interruption, maximising uptime while their tractors, round balers or telehandlers are being serviced or repaired.

Find out more

Straightforward and dependable service

The MF Always Running courtesy fleet include tractors, balers and telehandlers, which are selected by dealers to cover the widest needs in its local area.

Following the series, the tractors can come equipped with front linkage with spool valves.

Livestock/ dairy/ mixed

85hp-145hp sector

Mixed farm

140hp-180hp sector

Arable farm

150hp-210hp

Arable/ contractor

200hp-305hp sector

Arable/ contractor

320hp-425hp sector

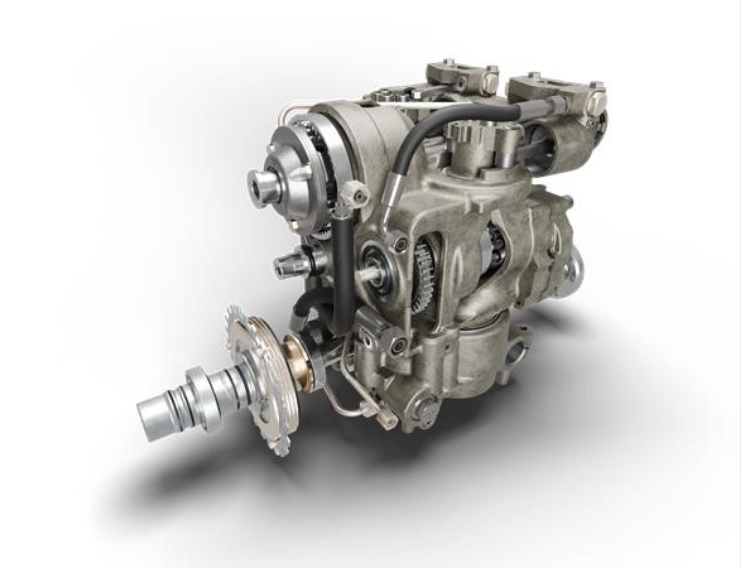

(Dyna-VT)

MF 4710 M, 100hp MF 6S.180, 180hp MF 7S.180, 180hp MF 8S.265, 265hp MF 9S.425, 425hp
MF 5711 M, 115hp MF RB 4160V MF 7S.210, 210hp MF 8S.305, 305hp MF RB 4160V
MF 5S.145, 145hp MF TH.7038  MF RB 4160V MF RB 4160V MF TH.7038
MF RB 4160V   MF TH.7038 MF TH.7038
MF TH.7038

* Please contact your local Massey Ferguson Dealer to check availability in your area. Terms and conditions apply that might vary according the market or country.

Exclusive Screen Savers

Download exclusive screen saver to your computer or to your mobile device here.

Download Desktop Screen Saver (2560x1600 dimensions)

Download Mobile Screen Saver (1080x1920 dimensions)

Download exclusive screen saver to your computer or to your mobile device here.

Download Desktop Screen Saver (3413x2133 dimensions)

Download Mobile Screen Saver (1656x2944 dimensions)

Download exclusive screen saver to your computer or to your mobile device here.

Download Desktop Screen Saver (3413x2133 dimensions)

Download Mobile Screen Saver (1656x2944 dimensions)

Download exclusive screen saver to your computer or to your mobile device here.

Download Desktop Screen Saver (3413x2133 dimensions)

Download Mobile Screen Saver (1656x2944 dimensions)

Find a Dealer
