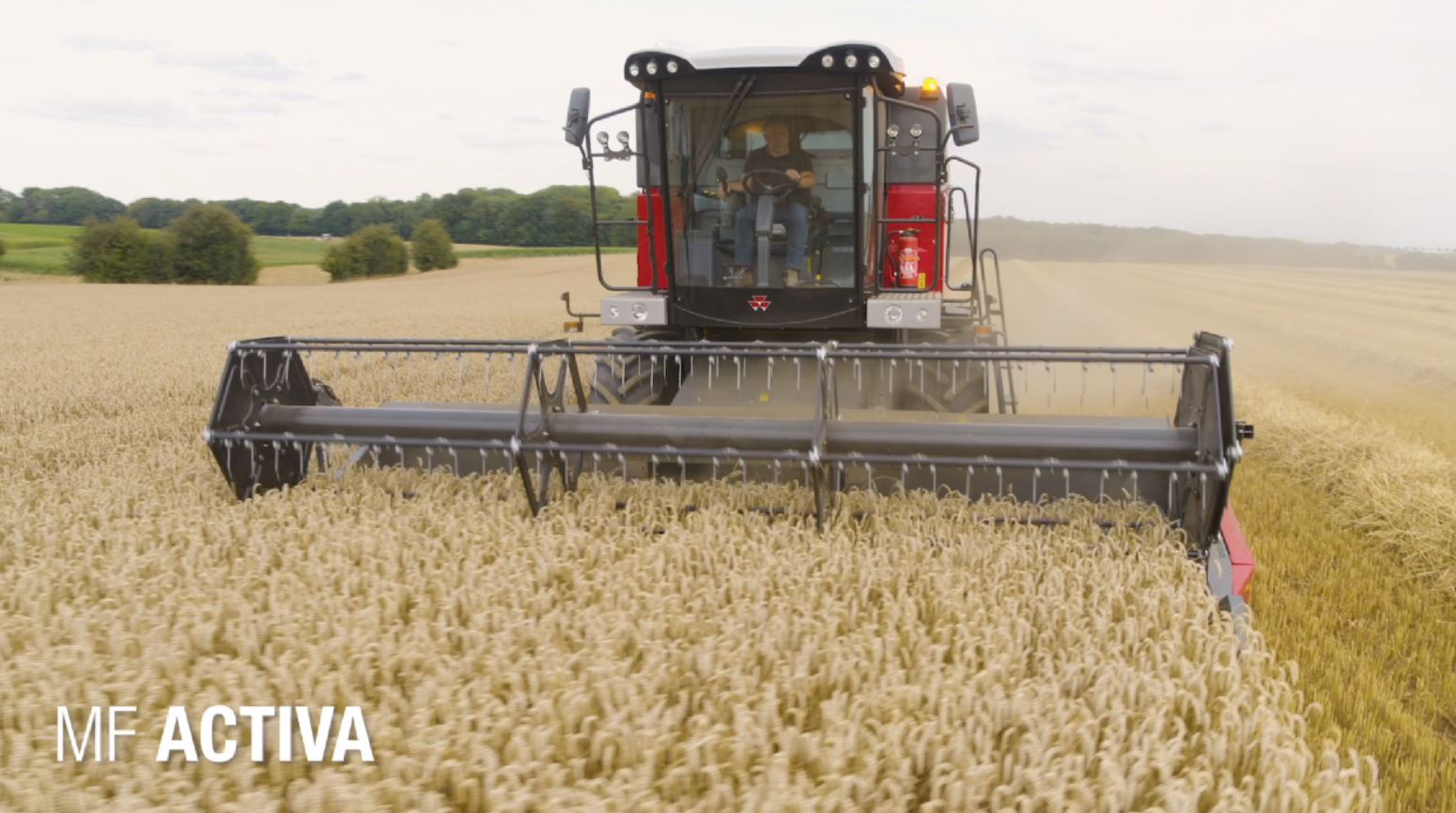

A MACHINE YOU CAN RELY ON
The new MF Activa series provides a choice of high output combine harvesters for farmers who are looking for straightforward and dependable harvesting performance with low running costs.
Built to the highest standards, these versatile machines are ready to work in a wide range of crops and conditions, from small grains to maize, soybeans and rice. Gentle on grain and straw they are the perfect choice for owners and operators with smaller to medium-sized areas to harvest. With combines from the MF Activa range, you can be sure you are making the right choice.

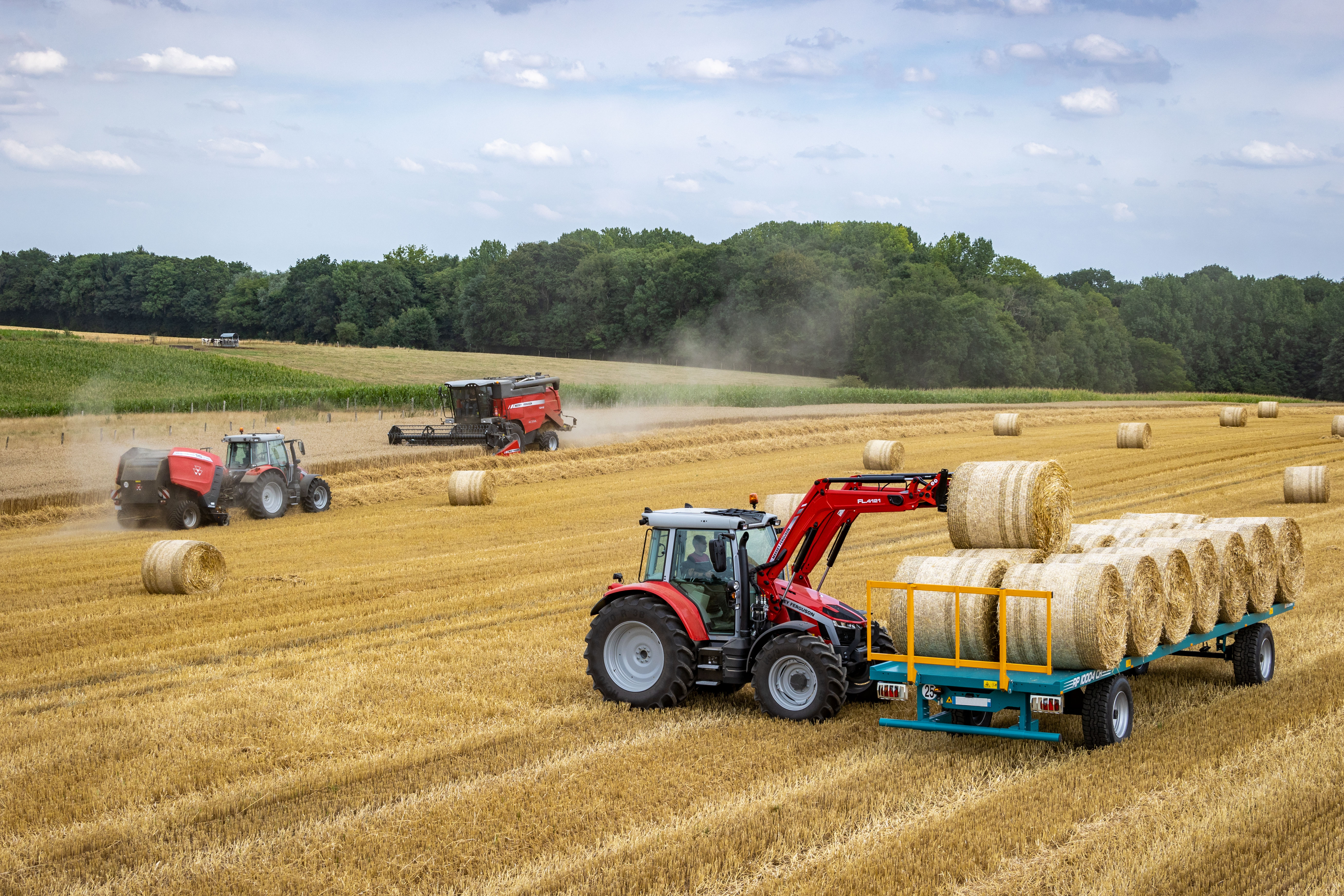

Straw quality is preserved by the gentle threshing system and the even swath is perfect for baling round, small or large square bales. Standard swath gates allow the row width to be set to achieve swaths of the ideal size. Risers can be easily fitted for damp conditions. Conserving the straw in this way makes the fuel consumption figures even lower to further reduce harvesting costs.
How much importance do you place on your combine engine?
We can promise you that your AGCO POWER engine has been designed to match the latest emission regulations using third generation SCR technology meaning that it actually has one of the most advanced designs on the market. It's better for the environment and running costs will be one of the lowest in the business. These are important parameters.
High Separation Performance

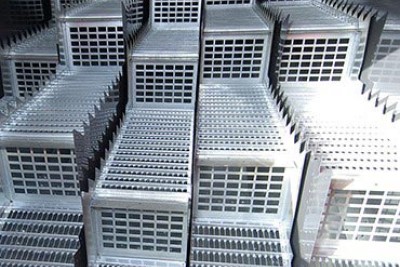

The long straw walkers feature four steps with 'active walls'. The 21cm high, vertical sections of the walker steps are made up of permeable grids. These are the highest for any conventional combine. The front steps of the straw walkers are reinforced for maize.
HIGH CAPACITY SIEVE DESIGN
The grain pan with an opposed action agitates the material from the concave making two separate layers of grain and chaff to be separated by the powerful volumetric fan. The fully adjustable sieves have a special design with tags which gives a very clean sample whatever the crop, and removing them for cleaning is very simple with a minimum of effort.
Threshing quality at the heart of the combine
The threshing components have been optimised to suit all crops. A robust cylinder 600mm by 1340mm wide, with eight rasp bars threshes gently and positively. It can handle a wide range of crops from grass seed through small grain to maize.
My space to work
The new Comfort Cab provides an ideal operator environment. User-friendly controls and a high level of comfort reduce fatigue during long working days. There is a superb view of the header, stubble and unloading auger from the air-suspended operator seat, and all the main controls are conveniently located on the new seat-mounted armrest.
Technology & Innovation
PowerFlow™ is the industry benchmark table for high capacity in all conditions with a cutting width of 5.5 m or 6.2 m. The proven belt drive powers the crop into the combine ensuring seamless feeding.
With cutting widths from 4.8 m to 7.6 m, the FreeFlow™ table features a welded frame to which bolt-on panels (such as the table bottom plates) are mounted, making it extremely easy to replace parts when necessary.
SCHUMACHER KNIFE - FREEFLOW TABLE
The Schumacher knife is the best performing knife in the business at 1,254 cuts a minute. Self-cleaning and consistently sharp, this keeps the crop moving in tough conditions.
AUTOMATIC CUTTING HEIGHT CONTROL
All 3 models are equipped with automatic cutting height control as standard to maximise cutting performance over all terrain, and MF’s optional AutoLevel feature allows the table to follow variations in slope angle of up to 8%.
OPTIONAL RAPE AUGER
The optional rape auger for the PowerFlow table ensures a consistent flow of tall crops into the elevator thereby increasing the output considerably. Two electrical side knives complete the rapeseed kit.
Combined multicoupler is standard for quick table dismount.
FULL WIDTH AUGER FINGERS
Full width auger fingers on the Freeflow™ table increase auger throughout, ensuring positive and fast feed into the main crop elevator.
The cylinder is 600 mm diameter x 1340 mm wide meaning that peak loads will not slow down the drum and affect threshing ability.
MULTICROP SEPARATOR - MCS
The MCS provides a massive separation area to remove as much grain as possible before it reaches the walkers. The MCS has the ability to rotate the concave over the top of the rotary separator when it is not required.
A Sectional Concave option allows a quick change from small to large seed crops.
The new modular grain pan is fitted with removable, hard-wearing plastic sections. These further improve versatility making it much easier to clean when working in difficult conditions and in crops such as soybeans and maize.
HIGH CAPACITY SIEVE DESIGN
The fully adjustable sieves have a special design with tags which ensures a very clean sample whatever the crop. Electric adjustment from the cab is an option, and the sieves are easily and quickly removed for cleaning.
High capacity grain tanks up to 6,500 litres are quickly unloaded at speeds up to 85 l/sec. The turret auger copes with the highest of trailers in the field or on the road.
The long straw walkers feature four steps with ‘active walls’. The 21 cm high, vertical sections of the walker steps are made up of permeable grids. The front steps of the straw walkers are reinforced for maize.
The straw chopper is specifically designed to provide chopping and spreading performance suitable for reduced tillage operations. The knives are serrated to give a clean chop and reduce the power requirement.
RICE CYLINDER - CONCAVE VERSION
A special Rice cylinder and concave with a unique peg and tooth profile is an option. Designed to achieve maximum separation in tough conditions, it comes with MCS as standard.
The MF Activa comes with a high level of equipment to ensure maximum driver comfort. A heater and air-conditioner, an air-suspended operator seat, a passenger seat and electric mirrors are all included as standard.
All models come with the pillar-mounted Agritronic terminal. This user-friendly, on-board computer provides convenient monitoring of all aspects of operation including grain losses.
Superb visibility with a panoramic view from the operator seat of the header, stubble, unloading auger, and to the rear through adjustable heated mirrors, and cameras which are available as an option.
A new seat-mounted armrest improves operation. The Multi-function lever at the front allows smooth, electronic control of the hydrostatic transmission, and includes unloading auger activation among its many other functions.
TURN NIGHT INTO DAY
Improved lighting packages extend the working day so that harvesting can continue when conditions are suitable, and crops are in peak condition.
HYDROSTATIC THREE-SPEED TRANSMISSION
The transmission has been updated with an electronically controlled hydrostatic pump. This makes it easier for the operator to precisely match the harvesting speed to the conditions for maximum productivity, and performance on the road is enhanced too.

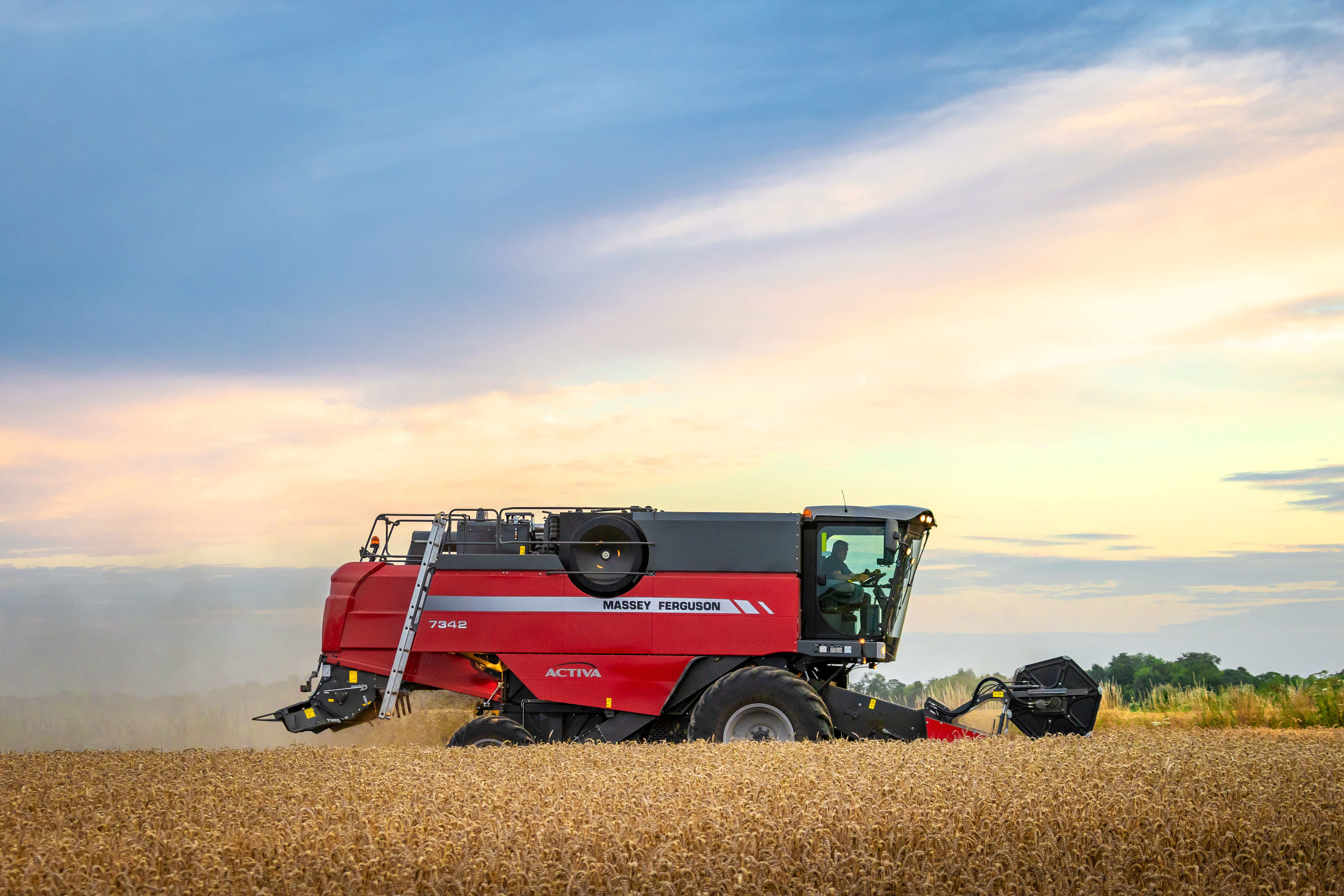

AGCO POWER ENGINE
We can promise you that your AGCO Power engine has been designed to match the latest emissions regulations using SCR technology – one of the most advanced systems on the market.
AGCO POWER ENGINE PERFORMANCE
The engines produce a flat torque curve, which means the power delivery remains constant as the working load varies. This coupled with the efficient, low friction drives will give you incredibly low fuel consumption per tonne of crop harvested.
7.4 litre, six-cylinder engines power the MF Activa 7343 and MF Activa 7344, and a 4.9 litre, four-cylinder version ensures economical operation of the MF Activa 7342. Four valves per cylinder with hydraulic adjustment reduce maintenance requirements.
An optional engine-driven* compressor provides a convenient, high-pressure air supply for use during maintenance and servicing. Air is stored in a large 30-litre tank, and available through three outlets around the machine. *belt-driven on MF 7342
Max Power* (hp)
Grain Capacity (l)
Unloading speed (l/s)
Max cutting width (m)
|MF 7342||185||5,200||72||6.0||AGCO Power 4.9L, 4 Cylinder|
|MF 7343||226||5,200 / 6,500*||72 / 85*||7.6||AGCO Power 7. 4L, 6 Cylinder|
|MF 7344||260||6,500||85||7.6||AGCO Power 7. 4L, 6 Cylinder|
|*MF 7343 standard with 5,200 litres grain tank capacity and unloading speed of 72 litres/sec; available as an option with 6,500 litres grain tank capacity and unloading speed of 85 litres/sec.|
