MF 3700 AL

Tailored for your specific needs

With a choice of 75hp, 85hp or 95hp the new MF 3700 AL tractors are designed specifically to combine stability and comfort with a high specification as standard for those working in mountainous or hilly terrain. They are available with flat-floor or a low-profile cab option that reduces the height to less than 2.44m.

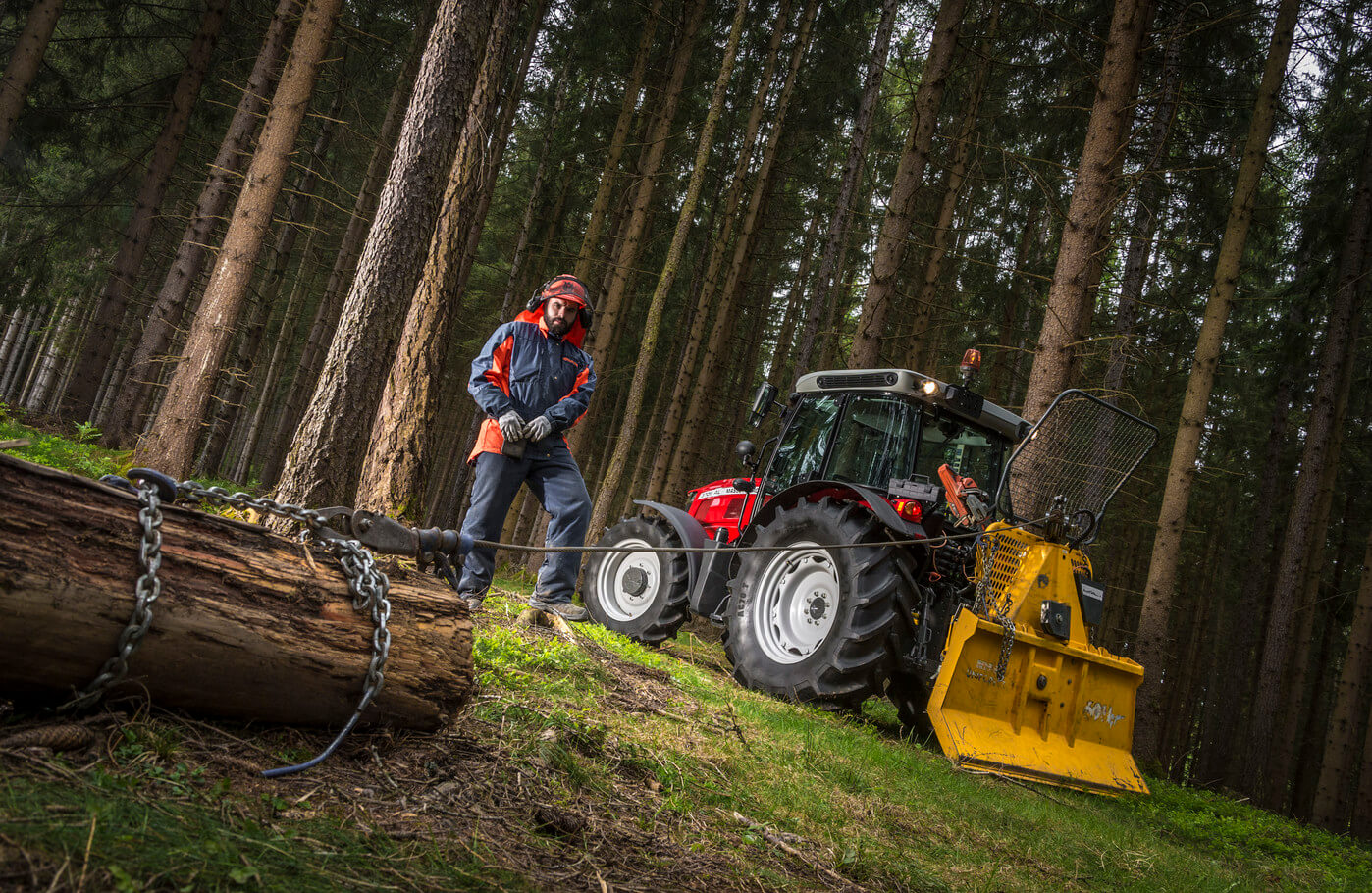

Superb stability is provided by a new wider chassis and larger tyres. With their powerful engines compact dimensions you can rely on the versatile MF 3700 AL to deliver the performance you need for demanding work in mountainous areas, out in the field or around the farmyard. They’re also perfect for working in specialist applications as well as for forestry, municipal and amenity applications.

Key Benefits

High Performance Workhorse

High Performance Workhorse

Power for all models is delivered by a straightforward 3.4 Litre, four cylinder engine.

Slick changing, efficient Transmission

Slick changing, efficient Transmission

All MF 3700 AL models are equipped with Massey Ferguson's 24/12 PowerShuttle transmission, which comes with SpeedShift - a two speed powershift. This offers simple operation of eight 'clutchless' changes in each of three range, using buttons on the gear lever.

Strong in-field performers

Strong in-field performers

It has a strong chassis and 3 tons capacity, electronically operated three-point linkage. A 540/540E PTO is standard, while a number of options make it suitable for to power a range of implements, including those requiring a ground-speed PTO.

Outstanding stability

Outstanding stability

A new chassis, with rear track widths from 1,337 to 1,884mm on a 2,156mm long wheelbase, allows the fitting of 30 inch tyres to ensure maximum stability.

Make your choice

Make your choice

At 1.4m wode, the cab is available either with a flat floor or with a low profile. Equipped with the flat floor the cab height is 2.53m on 16.9 R30 tyres. Selecting the low profile version reduces that to 2.44m on the same tyres.

Technology & Innovation

Like any good partnership the MF 3700 AL is there to help you get the job done. Versatile, reliable, robust and with low running costs, it’s the straightforward and dependable partner that won’t let you down.
SpeedShift

SpeedShift

Efficient and easy to use buttons on the gear lever enable operators to de-clutch and change between Hi and Lo SpeedShift steps - offering a total of eight clutchless changes in each of the three ranges.

3.4l 4 Cylinder Stage 3B

3.4l 4 Cylinder Stage 3B

This Series is powered by new generation Stage 3B four cylinder engines, delivering more power and torque to handle more demanding operations and high output implements.

24x12 PowerShuttle and Speedshift

24x12 PowerShuttle and Speedshift

24x12 PowerShuttle and Speedshift offers slick changing from the 24/12 SpeedShift, two-speed powershift transmission, with PowerShuttle making it simple to shuttle between forward and reverse.

All MF 3700 AL models benefit from the high specification ‘Efficient’ package, which provides a wide range of comfort and performance enhancing features. There is a choice of the standard flat-floor or the optional low-profile version, which can cut the overall height to less than 2.44m. Coupled with the great maneuverability and visibility this makes it ideally suited to working in confined spaces.
Low Profile Cabin

Low Profile Cabin

With a maximum height of less than 2.44m the MF 3700 AL low profile version is one of the lowest cabs on the market.

Multi-Function Joystick

Multi-Function Joystick

Advanced control is provided by a multi-function joystick, which operates all the transmission functions as well as the spool valves or a loader. Operators can focus on the task and getting the most from the implement.

Air-Suspended seat

Air-Suspended seat

An air-suspended seat is standard and, along with the standard telescopic and tiltable steering column, operators can ensure they are always sitting in the most comfortable position.

Flat Floor Cabin

Flat Floor Cabin

At 1.40m wide the flat-floor, high specification cab brings big tractor features to the compact and powerful MF 3700 AL Series.

Compact, manoeuvrable, rock-solid stability combined with the low-profile cab option, make the MF 3700 AL series the perfect partner for a Massey Ferguson Front Loader. Increase tractor versatility even further with the addition of the Front Linkage and PTO option. For mowing, pruning or sweeping, Front-Mounted machines increase output and productivity, making the most of your investment.
Open-Centre System

Open-Centre System

A straightforward open-centre system provides high performance hydraulic power, enabling the MF 3700 AL Series to operate a wide range of modern implements and equipment.

triple pump system

triple pump system

The standard triple pump system generates up to 125 litres/min of hydraulic flow.

Front Axle Suspension Option

Front Axle Suspension Option

Employing experience gained on our high hp tractors, our engineers have developed a new suspension system, which ensures best-in-class operator comfort and traction. This keeps the tractor stable, while the hydraulic suspension maintains operator comfort.

Available Models

Model

Max Power (hp)

Engine

Transmission

Max Torque (Nm)

Lift Capacity (kg)

MF 3707 75 3.4L Stage 3B Four-Cylinder 24 x 12 Speedshift 320 3,000
MF 3708 85 3.4L Stage 3B Four-Cylinder 24 x 12 Speedshift 365 3,000
MF 3709 95 3.4L Stage 3B Four-Cylinder 24 x 12 Speedshift 395 3,000
