Setting New Standards. Extending Expectations.
Massey Ferguson has always provided innovative, but practical solutions to the farmer’s needs to answer the challenges of the time. The MF 4700 Global Series continues this tradition by offering a highly modern, high performance, heavy duty, straightforward range of tractors that provide exceptional efficiency for every type of farmer all over the world.
With its entirely new - yet simple- design, manufactured in state of the art factories across the Globe, with efficient drivelines and high level of comfort, the MF 4700 is definitely designed to be the new workhorse of the world - it really brings exceptional value for money for any sector!
Your Next Steps
New AGCO power engine
Renowned for reliability, ruggedness and fuel economy, the 3.3-litre and 4.4 litres AGCO Power engines provide the heart of the MF 4700 Series.
Modern and efficient transmission
The MF 4700 Series tractors feature an all-new synchronised transmission which provides a total of 12F x 12R and 8F x 8R speeds depending on the model.
Power Shuttle Gearbox
The Power Shuttle gearbox shares the same layout as the 12 x 12 mechanical gearbox. The input section differs to allow the incorporation of the Power Shuttle dual wet clutch unit located at the front of the gearbox. The wet clutch contains a clutch pack for forward and a separate clutch pack for reverse and is controlled by an Electronic Control Unit (E.C.U) modulating the speed of engagement of the clutch packs to ensure smooth changes between forward and reverse. The Power Control Lever located to the left of the steering column, gives the operator smooth clutch less direction changes.
Power Control Lever
The Power Control Lever located to the left of the steering column gives the operator smooth clutch less direction changes.
Highly efficient two pump system as standard ensures optimum efficiency when operating a number of services at the same time.
Electric Linkage Control (ELC)
As the link between the various components of the control system is electronic rather than mechanical, the ELC can react quicker and more accurately to changing draft forces with soil engaging implements maintaining traction, improving implement depth control and enhancing productivity.
Easy to operate
New, intuitive and ergonomic controls, your tractor will respond to your slightest command. If you recognise the driving feel, it’s most likely similar to driving your car.
Technology & Innovation
Every component of the chassis has been designed from a blank sheet of paper to boast immense strength, a major factor in an agricultural tractor’s overall performance. This modern design provides versatility, power, durability and outstanding capability.
AGCO POWER 4 Cylinder Engine
Renowned for reliability, ruggedness and fuel economy, a 4.4-litre AGCO Power four-cylinder engine provides the heart of this Tractor Series.
AGCO POWER 3 Cylinder Engine
3.3 Litre AGCO POWER 3 Cylinder Engine - Renowned for reliability, ruggedness and fuel economy.

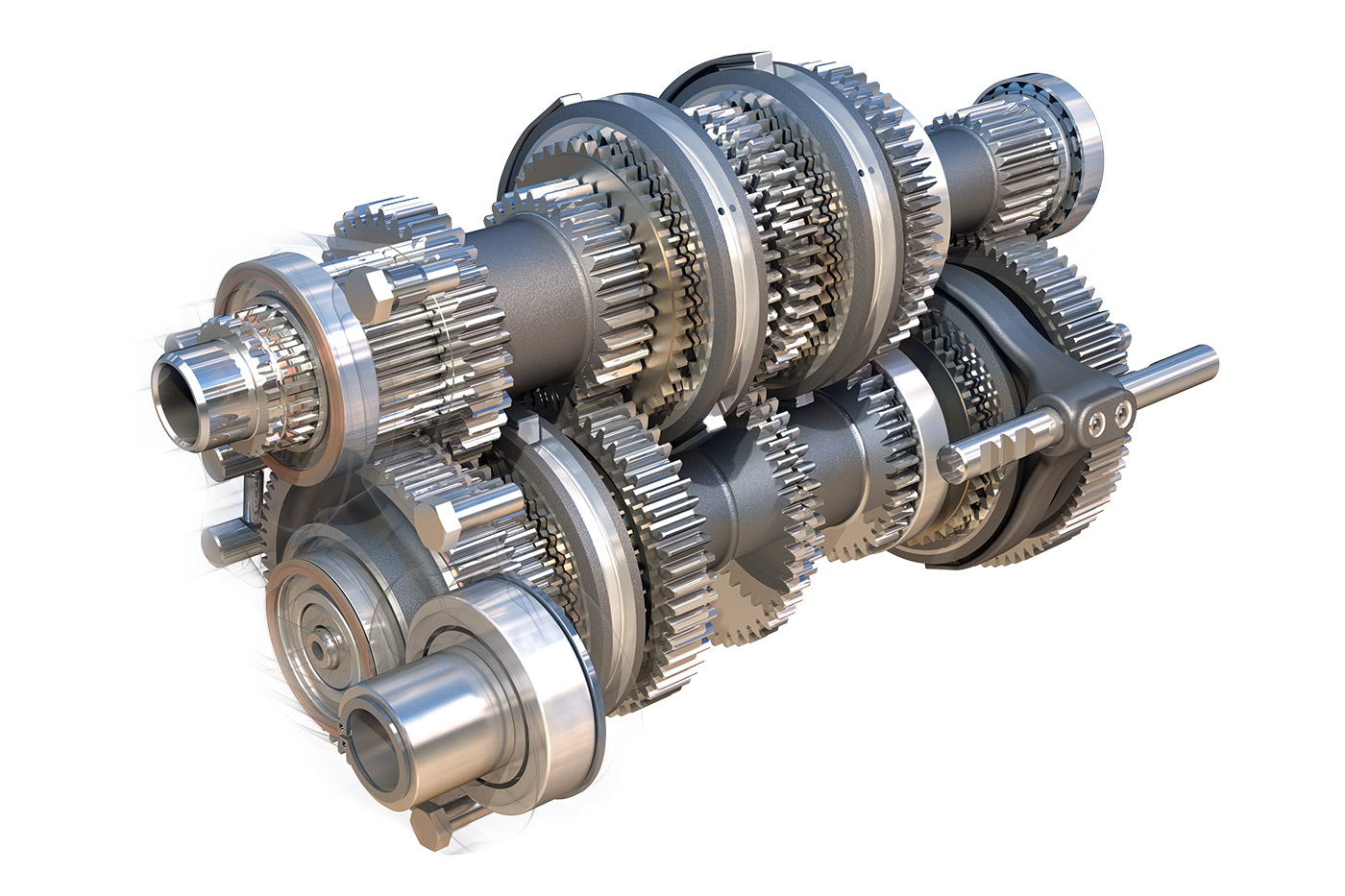

All-New Synchronised Transmission
All-new synchronised transmission which provides a total of twelve forward and twelve reverse speeds courtesy of two ranges.
Power Control Lever
The Power Control lever provides convenient three-in-one, straightforward operation. Operators can shift between forward/reverse ranges as well as select neutral, leaving the right hand free.
Super Creeper Option
A Super Creeper option is also available when the slowest speeds, down to 140m/hr, are required for the job in hand.
Smooth or quick shuttling – you choose by simply adjusting the Comfort Control to suit the job – slow and smooth or fast and efficient.
Neatly Positioned Gear Levers
The right speed for each job is easily selected using gear levers that are within easy reach, yet positioned neatly to hand of the driver, ensuring an unimpeded passage when mounting / dismounting.
Low Transmission Tunnel
A low transmission tunnel creates a spacious operator environment.
Once seated, manually-operated controls are sited in the most ergonomic positions, making them comfortable to operate and reliable even over the course of many thousands of tractor hours.
Grab rails mounted outside the operator station provide easy access to the footsteps, mounted directly to the machine.
4WD Front Axle
Specified with a limited slip differential, the front axle boosts traction and stability with maximum simplicity and minimal maintenance.
55 Degree Steering Angle
Manoeuvrability is maximised by the front axles 55° steering angle.
Open-Centre Hydraulic System
A simple open-centre hydraulic system, powered by two gear pumps, the 27 litres/min pump provides all the internal services, whist the 65 litres/min pump allows the electronically-controlled rear linkage to lift 3,000kg.
Auxiliary Spool Valves
The oil flow is also available via the two standard auxiliary spool valves to operate implement hydraulic functions while the other pump operates the steering operation of the 4WD clutch reverse shuttle and the PTO.
Control is via a modern independent PTO (IPTO) clutch, which is electro-hydraulically engaged and ‘eases’ the engagement, to protect the driveline by gradually taking up the drive.
Electronic Linkage Control - ELC
The industry leading ELC is provided as standard. The system provides precise and responsive control of linkage functions ensuring accurate management of working depth for soil engaging implements.
Max Power hp (kW)*
Max Torque (Nm)***
Lift Capacity (kg)
|MF 4708 Essential - Platform||82 (61)||AGCO Power 4.4L, 4 cylinders||12 x 12 Synchronised Mechanical Shuttle||342||3,000|
|MF 4708 Essential - Cab||82 (61)||AGCO Power 3.3L, 3 cylinder||12 x 12 Synchronised Mechanical Shuttle||342||3,000|
|MF 4709 Essential - Platform||92 (69)||AGCO Power 3.3L, 3 cylinder||12 x 12 Synchronised Mechanical Shuttle||355||3,000|
|MF 4709 Essential - Cab||92(69)||AGCO Power 3.3L, 3 cylinder||12 x 12 Synchronised Mechanical Shuttle||355||3,000|
|* @ 2,200 RPM | ** 12F X 12R SYNCHRONIZED POWER SHUTTLE TRANSMISSION IS AVAILABLE IN ALL MODELS | *** @ 1,320 RPM | ALL MODELS ARE AVAILABLE IN ONLY 4WD|
