MF 9300

MF 9300 Self-propelled Sprayer

At Massey Ferguson, we understand the need for simplicity. Each feature of the MF 9300 Plus self-propelled sprayer has been designed, tried and tested to meet your needs.

The MF 9300 Plus is synonymous with technology, durability and performance.

Delivering precision, capacity and comfort, this is straight-forward machinery to cover more hectares per day while minimizing operating costs.

Key Benefits

Fuel efficient Engine

Fuel efficient Engine

The MF 9300 Plus is equipped with the distinguished AGCO POWER 6.6 liter Tier 3 engine. The engine is programmed to create maximum torque where the drive system requires, providing healthy torque at low revs with 210 HP and 790 Nm of torque at 1,800 rpm.

Cross Drive Transmission

Cross Drive Transmission

The MF 9300 Plus Sprayer utilises Bosch Rexroth components in its effective cross drive transmission. Two large capacity 90cc variable displacement pumps drive opposing wheel motors on the front and rear of the machine. The hydrostatic drive system has a poly link between the flywheel and the first pump, providing a fail-safe in the event of a pump failure.

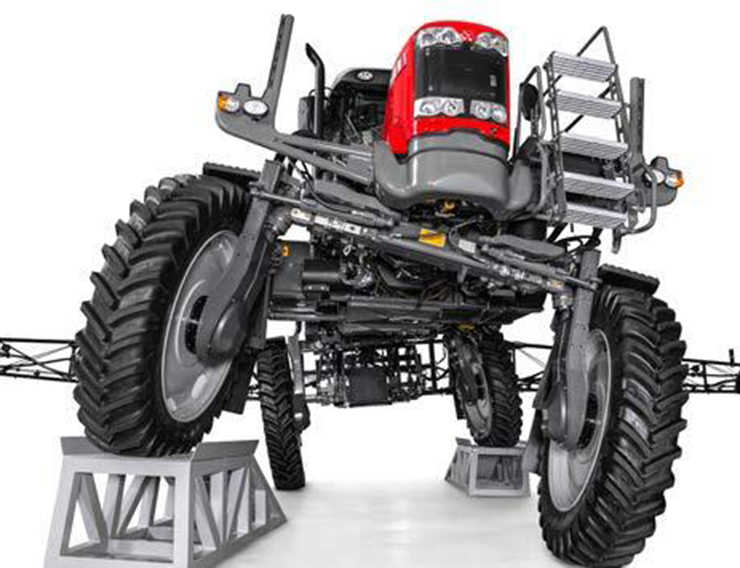

C-Flex Chassis

C-Flex Chassis

The fully bolted C-Flex chassis gives the MF 9300 Plus Sprayer the ability to traverse channels, banks and contours most would not attempt. The frame is not welded at any point, so when the suspension runs out of travel, the chassis itself will flex, allowing all wheels to stay in contact with the ground, ensuring the safety of the sprayer even in the most adverse conditions.

High Ground clearance.

High Ground clearance.

The sprayer has a ground clearance of 1.65 m which enables it to spray efficiently in fields with tall crops.

Application accuracy

Application accuracy

The MF 9300 arrives from the factory fitted with autonomous auto steer. However, the options don’t end there; this can be upgraded to sub-meter at any time. If at any point, higher precision is required, it can be upgraded to RTK.

30 Metre Boom

30 Metre Boom

The boom is a design used by AGCO for many years with added strength to handle arduous South American conditions. Consequently, the boom is strong, reliable and floats exceedingly well even in high speed spraying applications. 32 Metre boom is available upon request.

Comfortable Operator Environment

Comfortable Operator Environment

The cabin of the MF 9300 Plus Sprayer is simple, uncluttered and functional to maximise operator comfort and safety. Controls are ergonomically arranged, within easy reach and the cabin provides a generous amount of space to increase daily productivity and reduce fatigue, especially when spending long hours behind the wheel. The adjustable air ride seat combined with the air-conditioning system and low levels of noise and vibrations ensures a comfortable and pleasant work station at any time of the year.

Technology & Innovation

Built for ultimate performance
AGCO POWER 6.6 litre Tier 3 engine

AGCO POWER 6.6 litre Tier 3 engine

The engine is programmed to create maximum torque where the drive system requires, providing healthy torque at low revs. With 210 HP and 790 Nm of torque at 1,800 rpm, there‘s no hill too steep to navigate.

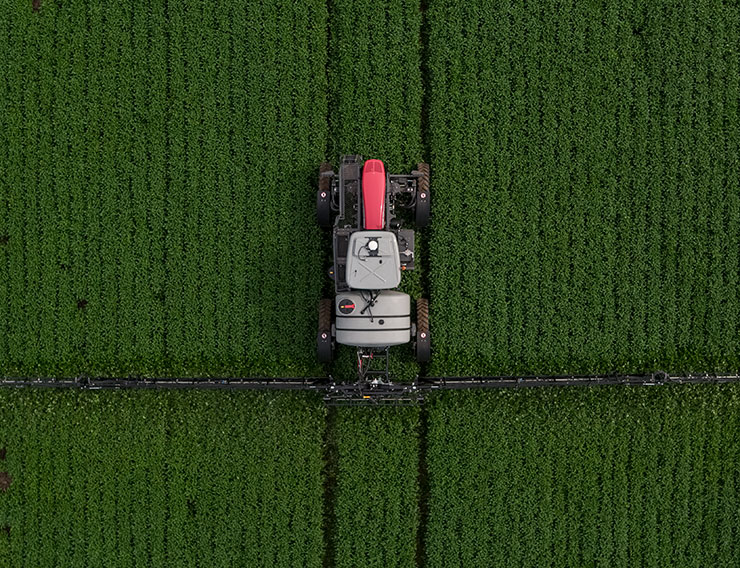

Bosch Rexroth Transmission

Bosch Rexroth Transmission

The MF 9300 Plus Sprayer utilises Bosch Rexroth components in its effective cross drive transmission. With huge amounts of torque and no loss of traction, the sprayer gives you the control in even the toughest conditions.

4X4 Hydrostatic Drive System

4X4 Hydrostatic Drive System

The hydrostatic drive system has a poly link between the flywheel and the first pump, providing a fail-safe in the event of a pump failure.

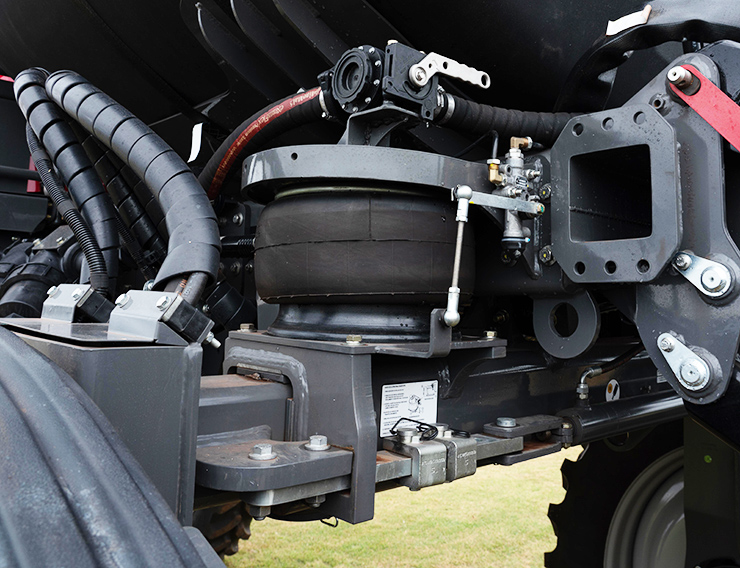

Active Airbag Suspension

Active Airbag Suspension

Each airbag is controlled by its own dedicated mechanical valve making sure the ride is adjusted to every change in condition. It offers a longer service life as shock loads are soaked up by the suspension, not the chassis and boom.

A good working environment improves productivity

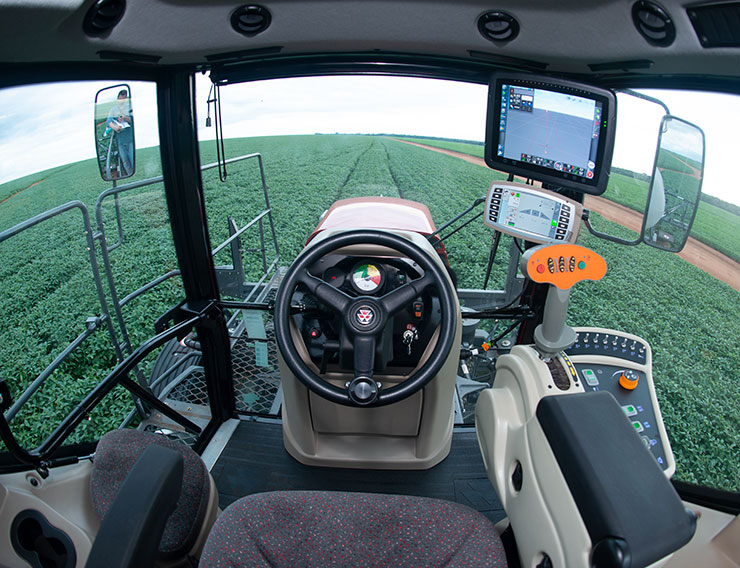

MF 9300 Sprayer Cabin

MF 9300 Sprayer Cabin

Controls are ergonomically arranged, within easy reach and the cabin provides a generous amount of space to increase daily productivity and reduce fatigue, especially when spending long hours behind the wheel.

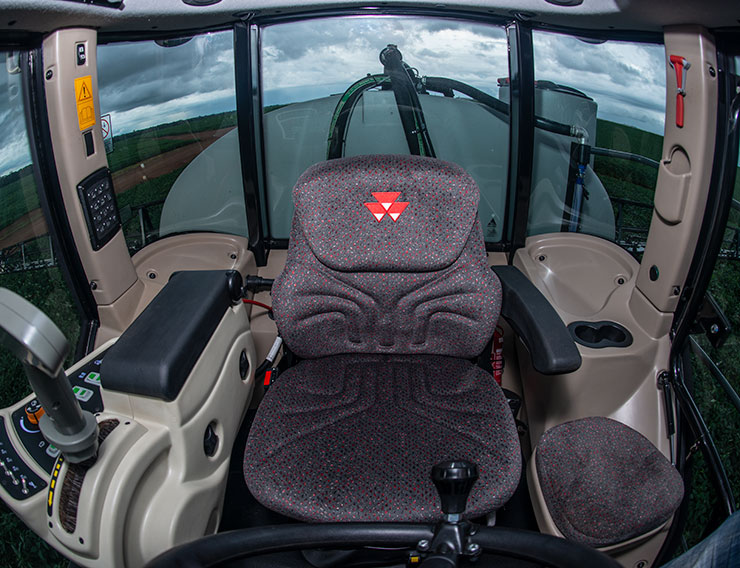

Cabin Comfort

Cabin Comfort

The adjustable air ride seat combined with the air-conditioning system and low levels of noise and vibrations ensures a comfortable and pleasant work station at any time of the year.

Main Commodity Tank

Main Commodity Tank

The 3000 & 3500 liter tanks have dual hydraulic agitators and a single oscillating tank rinse nozzle fed by a 240 litre fresh water reservoir. The tank sits in a cradle which allows the chassis to flex if required beneath the tank.

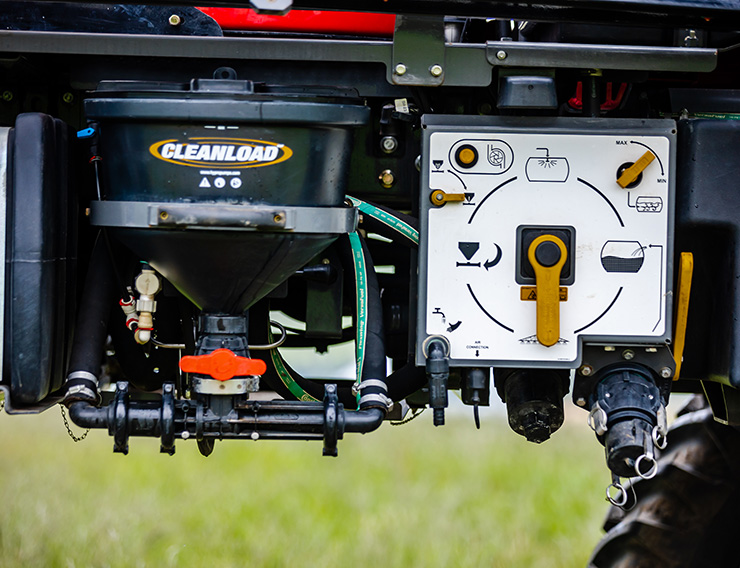

Filling Station

Filling Station

The filling station of the MF 9300 is simple to understand and operate. It Features include: 2” and 3” cam lock fill point, 568 l/min reload pump, Unload point, 26.5 litre hypro chem hopper, adjustable agitation rate, Fresh water pump on/off, Tank rinse.

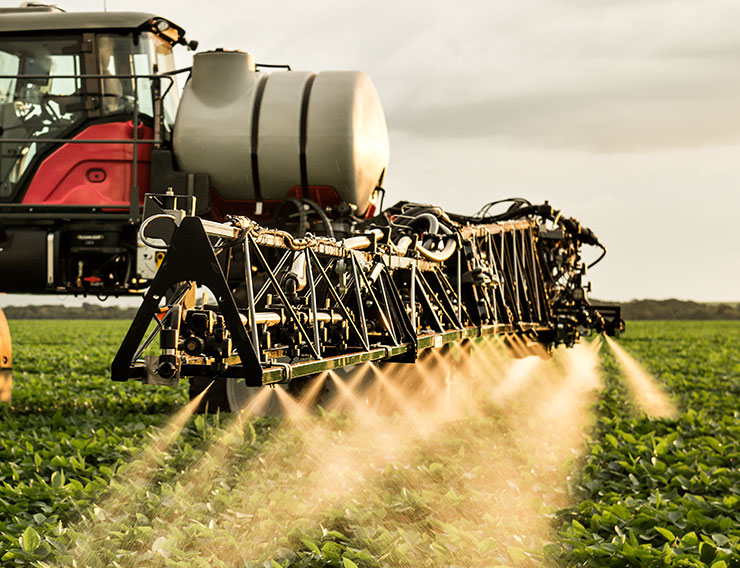

Sprayer Boom Design

Sprayer Boom Design

The boom is strong, reliable and floats exceedingly well even in high speed spraying applications. The booms are fitted with section control and fence line nozzle. The boom is available in 30 metre width as standard, and 32 metres as optional.

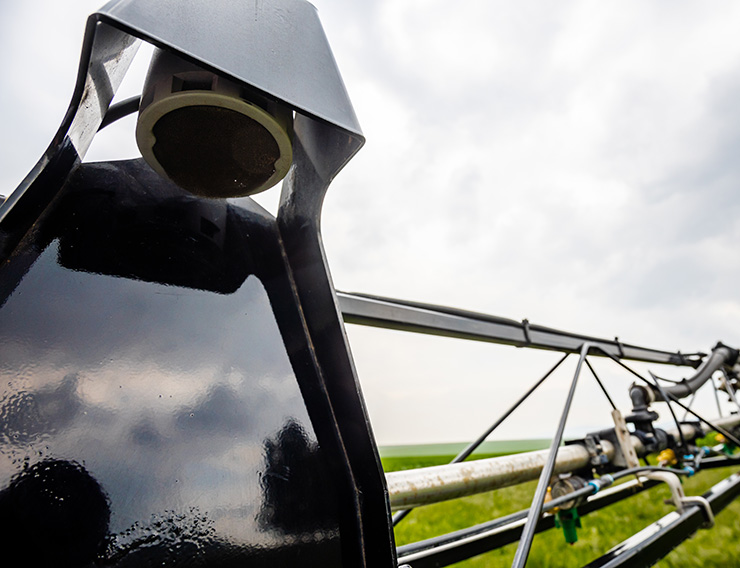

Norac Auto Boom Levelling

Norac Auto Boom Levelling

Norac auto boom levelling with 5 sensors.

Boom Lines

Boom Lines

1" stainless steel boom lines.

MF Guide

MF Guide

Massey Ferguson’s complete guidance system for hands-free steering, available factory fit on new tractors or as an after-market installation. The system uses Trimble, RangePoint, center point and RTK corrected signals to increase efficiency.

Section Control

Section Control

With the fully automatic Section Control , operators can apply crop protection products without overlapping. This prevents double treatment and areas worked outside of the field edges.

Available Models

Model

Max Power hp (kW)

Engine

Transmission

Boom Width (m)

Tank Capacity (litres)

MF 9330 Plus 210 (157) AGCO Power 6 Cylinder, 6.6 Liter Tier 3 Bosch Rexroth Hydrostatic Fulltime 4x4 30 3000
MF 9350 Plus 210 (157) AGCO Power 6 Cylinder, 6.6 Liter Tier 3 Bosch Rexroth Hydrostatic Fulltime 4x4 30 3500
