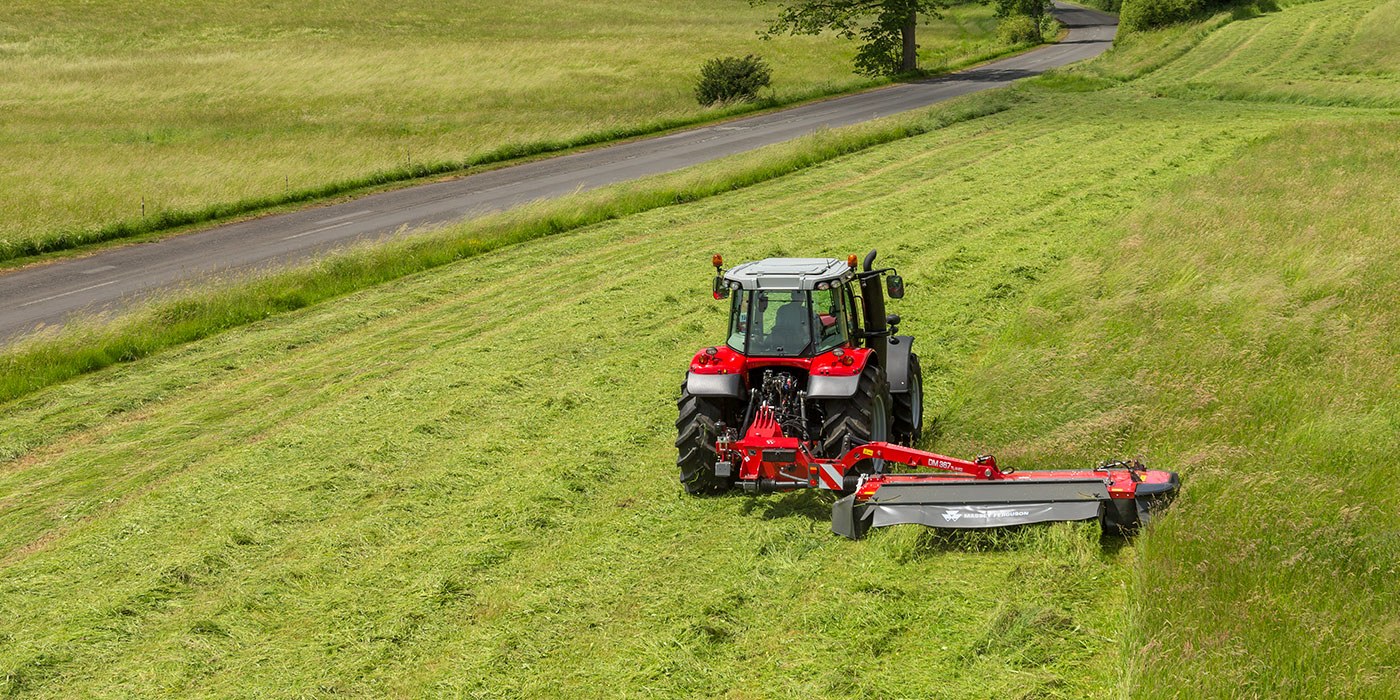

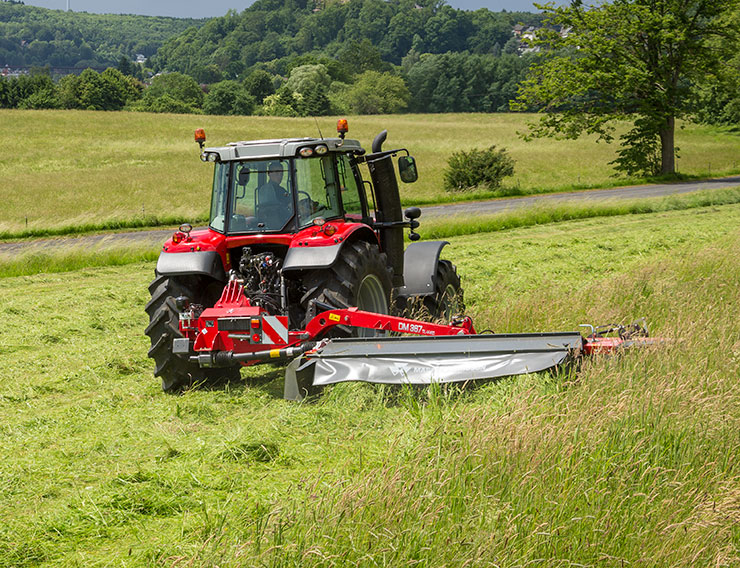

MF DM & M SERIES

Disc Mowers

Massey Ferguson DM Series Disc Mowers and conditioners offer uncompromising quality.

Designed for smaller operations through to professional contractors. MF mowers feature innovations that drive high performance, increase productivity and lower operational costs.

The DM series have a cutting width ranging from 2.5 to 3.6 meters. Optional conditioners are available.

Key Benefits

Low weight – wide coverage

Low weight – wide coverage

Massey Ferguson disc mowers with spur gear drive ensure a long working life and low operating costs. The lightweight construction maximises the yield, even with smaller tractors wider working widths can be used. The simple low maintenance design of these mowers also make sure downtime is kept to a minimum.

Precise mowing – even under difficult conditions

Precise mowing – even under difficult conditions

The precision engineered gear bed cutter bar, with elliptical discs, rotating swath formers and robust conveyor drums make sure it is possible to achieve a clean cutting pattern and good throughput even on difficult terrain.

Key features of our cutter bar

Key features of our cutter bar

Low wear and simple to maintain. The bolted cutter bar has all components mounted in the base plate with a simple-to-remove cover plate.

Optimum ground following across the most difficult terrain

Optimum ground following across the most difficult terrain

With the 3 dimensional ground following pull type linkage. The hitch is free to pivot both longitudinally and transversely ensuring a clean cut.

A mower that can adapt to the most varied of field conditions

A mower that can adapt to the most varied of field conditions

The MF mower utilises a centre attachment hitch designed so that the mower unit is attached and towed from its centre of gravity. The centre attachment allows for a +/- 13° lateral pivot. Ground pressure is controlled with the Massey Ferguson TurboLift system. This system incorporates an adjustable hydropneumatic accumulator to control cutter bar pressure, ensuring the mower can adapt to the most varied of field conditions.

MF Disc Mowers - Technology & Innovation

MF Farmer Series (F)

MF Farmer Series (F)

Ideally suited to farmers with lower horsepower tractors or a limited amount of mowing to carry out, these mowers boast a host of features you would expect to find on larger, more expensive machines.

PTO Shaft - (F)

PTO Shaft - (F)

A PTO shaft with a free wheel clutch, which transfers power through a V belt from the tractor to the in-line cutterbar.

Shear Pin Protection - (F)

Shear Pin Protection - (F)

Each individual cutting head is fitted with shear pin protection, preventing damage in case obstacles are hit. These pins can easily be replaced in the field.

Flat Profile - (F)

Flat Profile - (F)

The flat profile is ideal for heavy crops and, combined with the standard stone guard and large hardened skid, ensures years of trouble-free service.

Built for Difficult Conditions - (F)

Built for Difficult Conditions - (F)

Built to perform under the most difficult conditions.

No Material Build-Up - (F)

No Material Build-Up - (F)

Provides an exact cut and high material flow without material build-up, leaving fluffy swaths and high quality forage.

Wide Coverage - (F)

Wide Coverage - (F)

Massey Ferguson disc mowers with spur gear drive ensure a long working life and low operating costs. The lightweight construction maximises the yield, even with smaller tractors wider working widths can be used.

Cutter Bar - (F)

Cutter Bar - (F)

The precision engineered gear bed cutter bar, with elliptical discs, rotating swathformers and robust conveyor drums make sure it is possible to achieve a clean cutting pattern and good throughput even on difficult terrain.

MF Professional Series (P)

MF Professional Series (P)

Designed for contractors and larger farms and built to tackle the big jobs, the MF Professional Series offers many exclusive features that provide high performance and low operating costs.

Angle Drive - (P)

Angle Drive - (P)

At the heart of this system is a continuous, large-dimensioned hexagonal shaft and a robust angular gearbox under each mower disc. This results in even power distribution to all mower discs and the smoothing of torque loads.

Angle Drive - High Output Mowing - (P)

Angle Drive - High Output Mowing - (P)

The Massey Ferguson disc mowers with compact angle drive are durable with a low PTO power requirement, ensuring high output cost efficient mowing at all times.

Cutter Bar - (P)

Cutter Bar - (P)

The engineers at MF have succeeded in developing a perfectly streamlined cutter bar with the optimum profiles on the underside. As a result, even in adverse conditions, the formation of mounds of soil in field forage crops or on wet land is prevented.

Cutter Bar - Advantages - (P)

Cutter Bar - Advantages - (P)

The soil is cleanly separated from the forage and flows away under the cutter bar. With a Massey Ferguson cutter bar, you can continue to work when others have had to give up or have not even been able to start working.

Knife Overlap - (P)

Knife Overlap - (P)

A perfect cut is achieved due to the large overlap of the mower discs, which are positioned well towards the front. MF mowers use large mower discs and their special shape means that they can handle large volumes of forage.

Axial or Paired Running - (P)

Axial or Paired Running - (P)

The mower discs are converted from axial running to paired running by simply switching the angle drive – all without any additional components. You can flexibly adapt your Massey Ferguson mower to changing general conditions.

Wedge Shaped Bar - (P)

Wedge Shaped Bar - (P)

The wedge-shaped bar provides the added benefit of a low cut and the ‘Big Disc’ design ensures a large overlap, which results in a clean cut even when faced with high volume and difficult crops.

Angular Gears - (P)

Angular Gears - (P)

The MF Professional Series disc mowers feature individual compact angular gears that provide an extremely smooth power transfer to all discs, resulting in less wear than a conventional gear drive and ensuring a longer and more reliable cutter bar life.

MF DM 255 P - Optional Conditioners

MF DM 255 P - Optional Conditioners

As an option, the MF DM 255 P can be quickly and easily retrofitted with a Roller Conditioner (RC).

Rear-Mounted Centre Attachment - Support Frame

Rear-Mounted Centre Attachment - Support Frame

The cutter bar is supported and guided by the support frame. This is manufactured from high-quality, warp-resistant steel and is designed for extremely high loads.

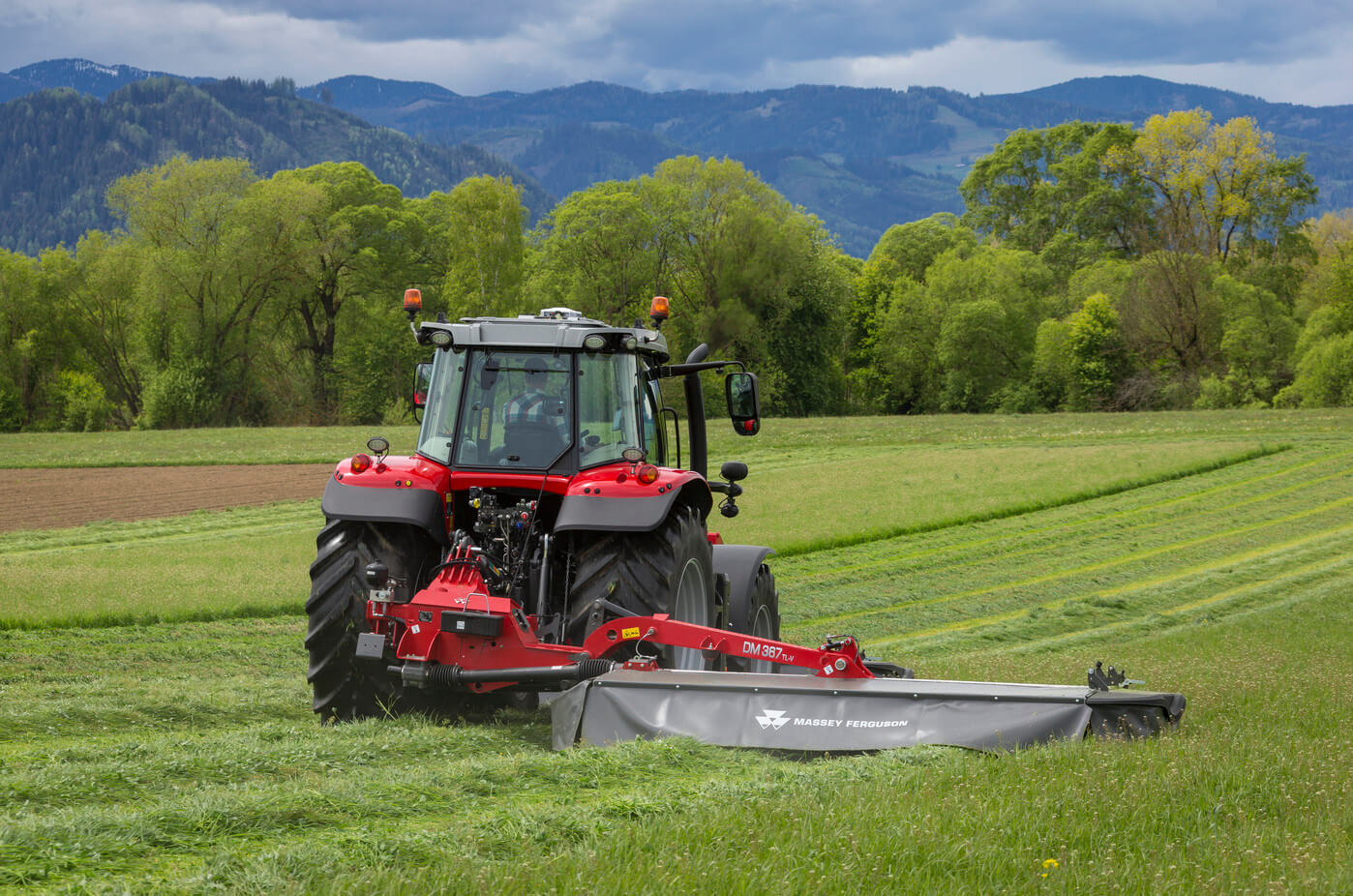

Rear-Mounted Side Attachment - P

Rear-Mounted Side Attachment - P

Lateral suspension with a controlled lifting linkage results in a compact transport position and low transport height. A quick change knife system is standard on the Professional Series mowers, increasing the efficiency of operation.

Sturdy Exterior Support - Rear-Mounted Side Attachment

Sturdy Exterior Support - Rear-Mounted Side Attachment

A sturdy exterior support guarantees the long working life of the protective covers thus increasing the operational safety of the machine.

Centre Support with Vertical Folding

Centre Support with Vertical Folding

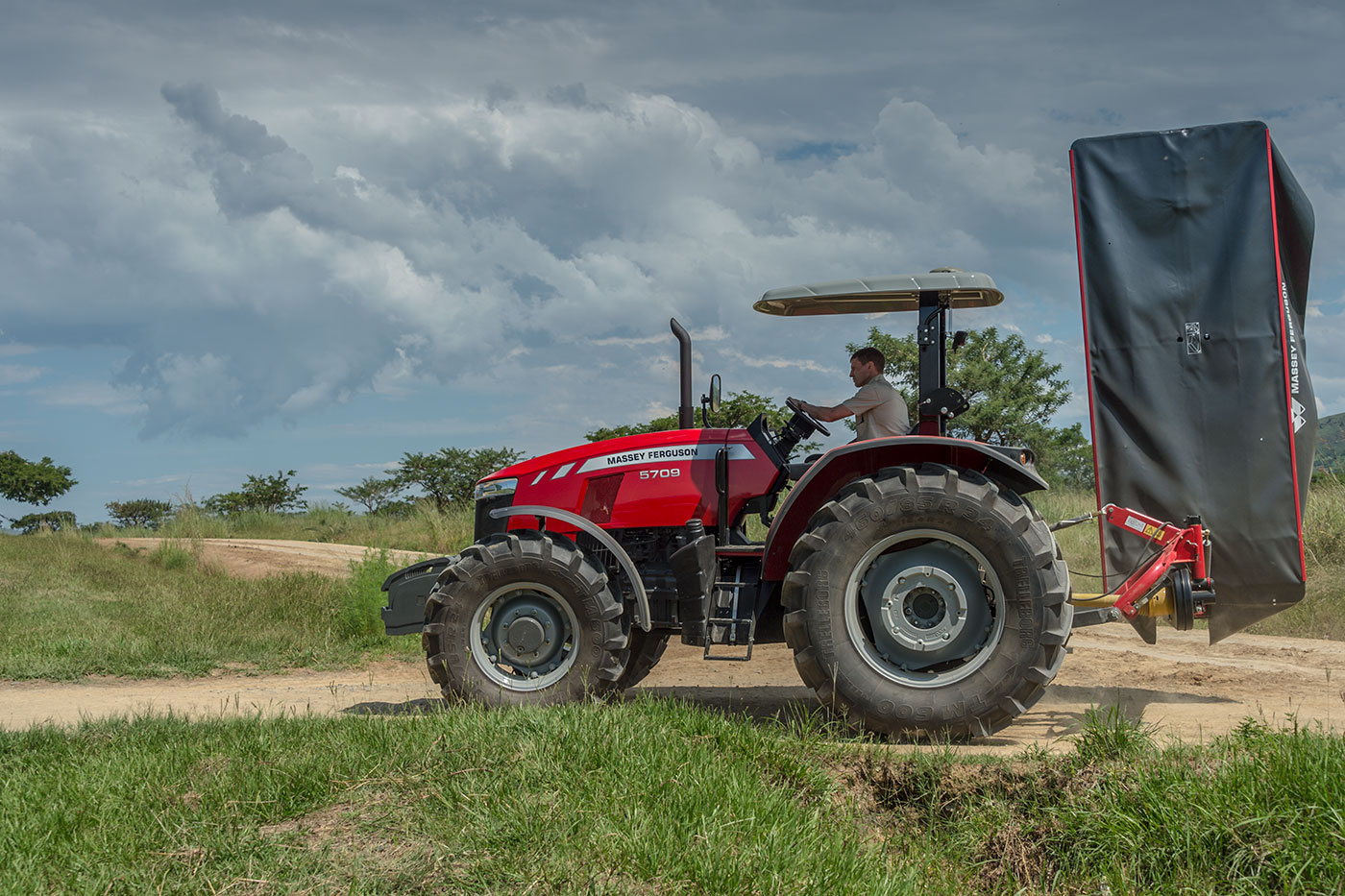

MF DM TL-V mowers fold vertically for transporting within the machine’s centre of gravity and provide excellent weight distribution of the tractor / mower combination with compact transport dimensions and a low transport height.

SafetySwing Protection System - Centre Support Vertical Lift

SafetySwing Protection System - Centre Support Vertical Lift

Prevents damage in the event of hitting an obstruction by moving backwards and upwards. Automatically re-engages into the working position through its own weight.

Hydro-Pneumatic Suspension System - Centre Support

Hydro-Pneumatic Suspension System - Centre Support

Turbolift system for infinitely variable ground pressure control. Adapts to varying field conditions and eliminates damage to the swath.

MF DM Trailed Mowers

MF DM Trailed Mowers

The MF DM 306 TR & MF DM 357 HS TR are trailed mowers with a centrally controlled drawbar linkage. These machines are characterised by ease of handling and superb agility. The mower can be pivoted at the rear of the tractor both to the left and right.

Trailed Suspension Mounting

Trailed Suspension Mounting

With the specially developed trailed suspension mounting of the cutter bar, the ground pressure is reduced to a minimum – whatever the pivot movement is.

Adaptable Contact Pressure

Adaptable Contact Pressure

You can perfectly adapt the contact pressure of the mower to the conditions. Due to the high lift height of the mower, turning manoeuvres on the headland can be carried out seamlessly without causing any damage to transverse swaths.

Adjustable Cutting Height

Adjustable Cutting Height

The working height can be set over an infinitely adjustable cutting height of 3.5-7.0 cm. As a result, you can react flexibly to changing working conditions. In addition, you can perfectly adapt the contact pressure of the mower to the conditions.

MF DM 306 TR and MF DM 357 HS TR - Optional Conditioners

MF DM 306 TR and MF DM 357 HS TR - Optional Conditioners

The MF DM 306 TR & MF DM 357 HS TR can be fitted with a roller conditioner (RC) as standard. With a roller conditioner (RC), you achieve quality forage faster because the water loss from your crop is accelerated.

The new and expanding Massey Ferguson range of hay and forage equipment includes a wide array of high quality and energy-efficient front mowers.
MF Front Mower

MF Front Mower

These machines are specifically designed to meet the precise requirements of grassland farmers and contractors harvesting a wide range of crops in different conditions.

MF DM 306 FP - Ample Pivot Travel

MF DM 306 FP - Ample Pivot Travel

Perfect for operating in different terrain conditions.

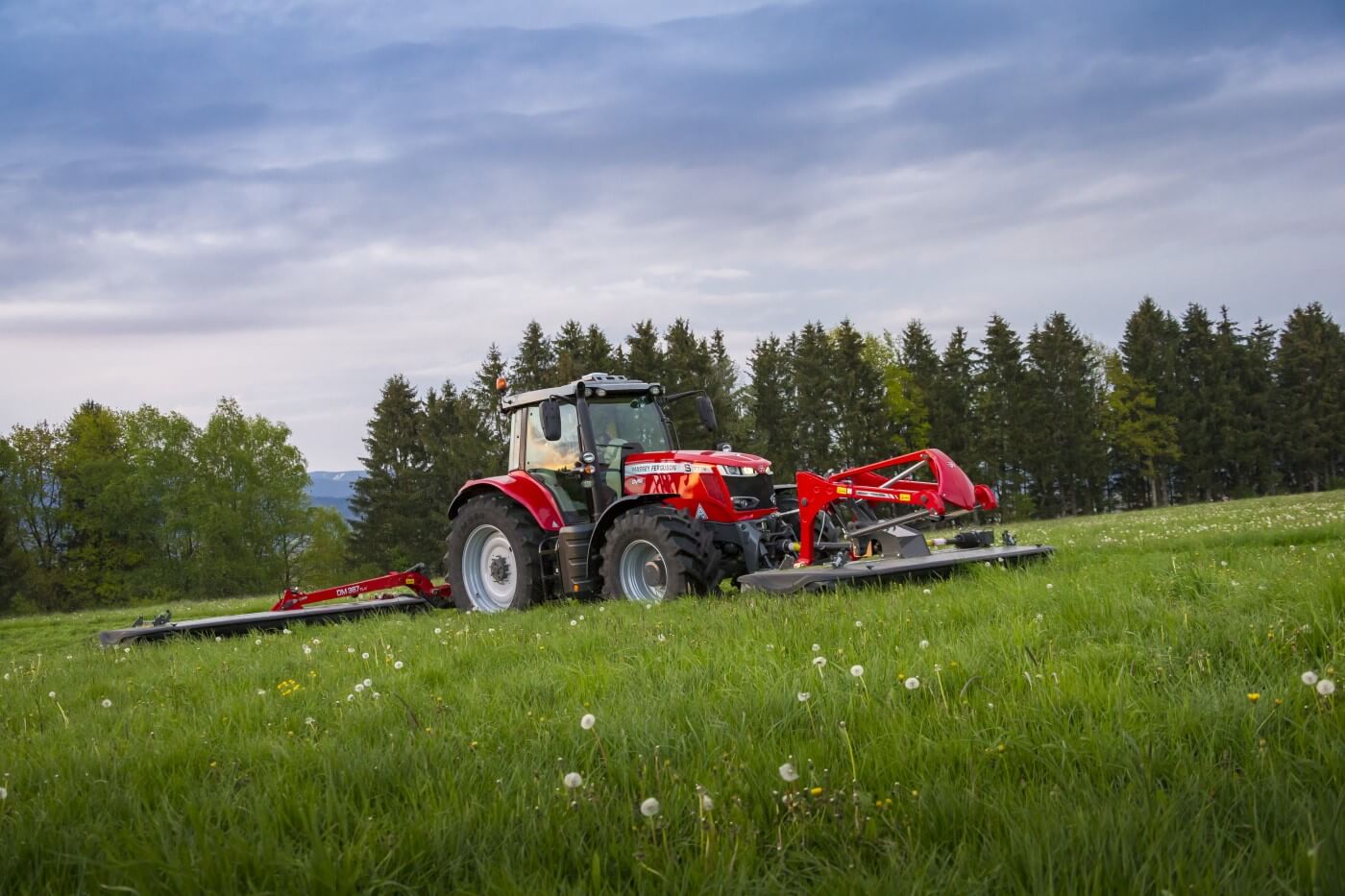

Rear-Mounted Butterfly

Rear-Mounted Butterfly

The MF DM 9314 rear-mounted 3PL butterfly disc mower with RC tine rotor conditioner is a perfect companion to the front-mounted MF DM 316 FQ mower conditioner with trailing linkage. The two provide a total cutting width of 9.3 m.

Free-Floating Cutting

Free-Floating Cutting

The MF Butterfly mowers feature free-floating cutting, which reduces the load on the support frame, support tube and the 3-point linkage hitch.

One-Lever Operation

One-Lever Operation

Both mowers feature one-lever operation for quick change at the headlands, making the transition from working to turning fast and simple.

Available Disc Mower Models

Model

Machine designation

Working Width (m)

Number of mower discs

Additional equipment variants

Minimum Power Required - hp (kW)

MF DM 205 (F) Spur gear drive, Rear mounted with Inner drive shoe 2.06 5 41 (31)
MF DM 246 (F) Spur gear drive, Rear mounted with Inner drive shoe 2.42 6 50 (37)
MF DM 287 (F) Spur gear drive, Rear mounted with Inner drive shoe 2.82 7 60 (45)
MF DM 255-P (P) Rear mounted, Side attachment, Compact angle drive 2.55 5 RC 54 (40)
MF DM 306-P (P) Rear mounted, Side attachment, Compact angle drive 3 6 61 (45)
MF DM 357-P (P) Rear mounted, Side attachment, Compact angle drive 3.5 7 61 (51)
MF DM 408 TL (P) Rear mounted, Centre attachment, Compact angle drive 4 8 99 (72)
MF DM 316 TL-V (P) Rear mounted, Centre attachment, Vertical Fold 3.1 6 RC 85 (63)
MF DM 357 HS TR (P) Compact angle drive, Trailed, With Transport Chassis 3.5 7 RC 120 (90)
MF DM 8312 TL (P) Mower Combination 8.3 12 RC 180 (132)
(F) - Farmer Series | (P) - Professional Series
