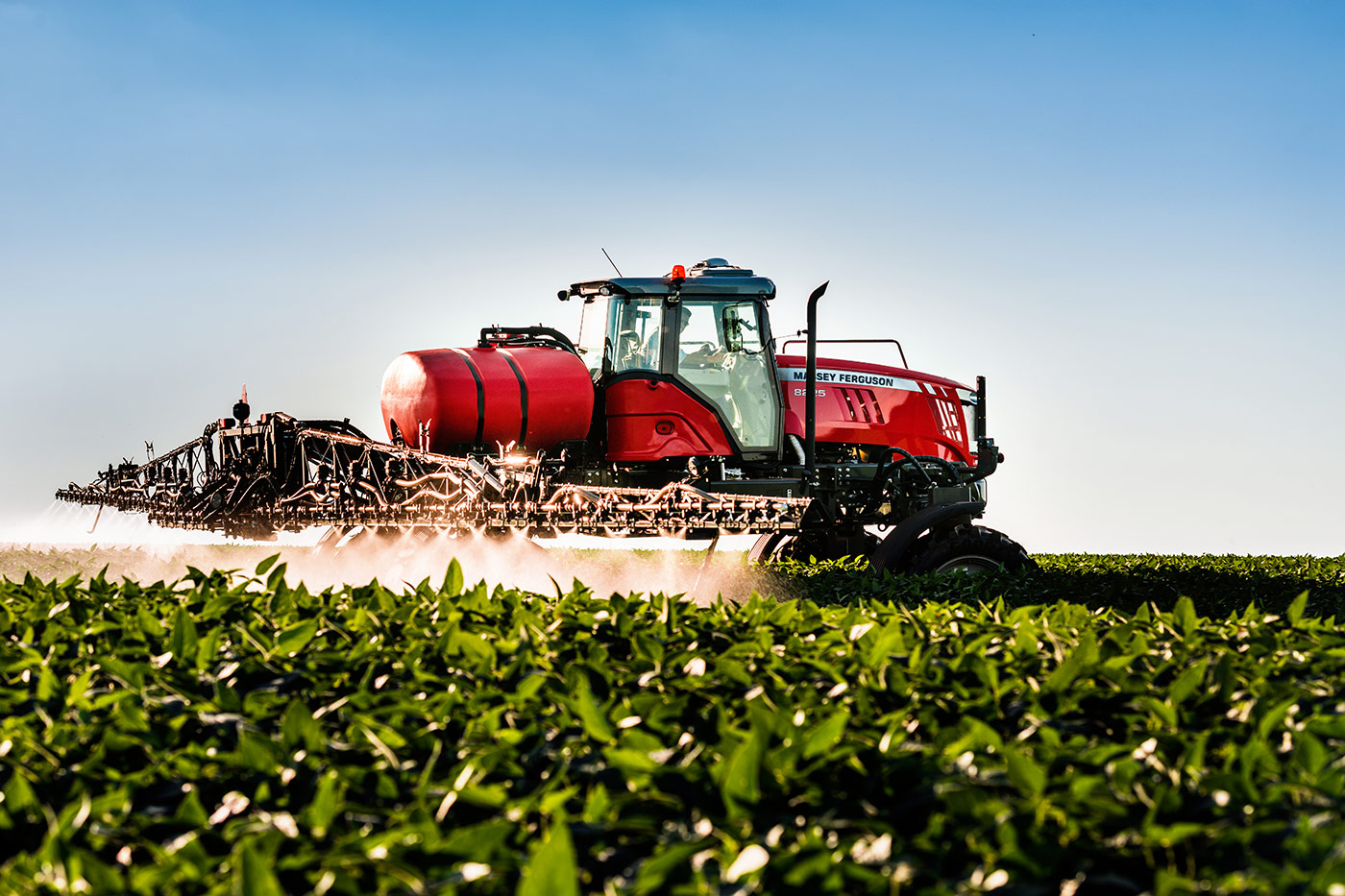

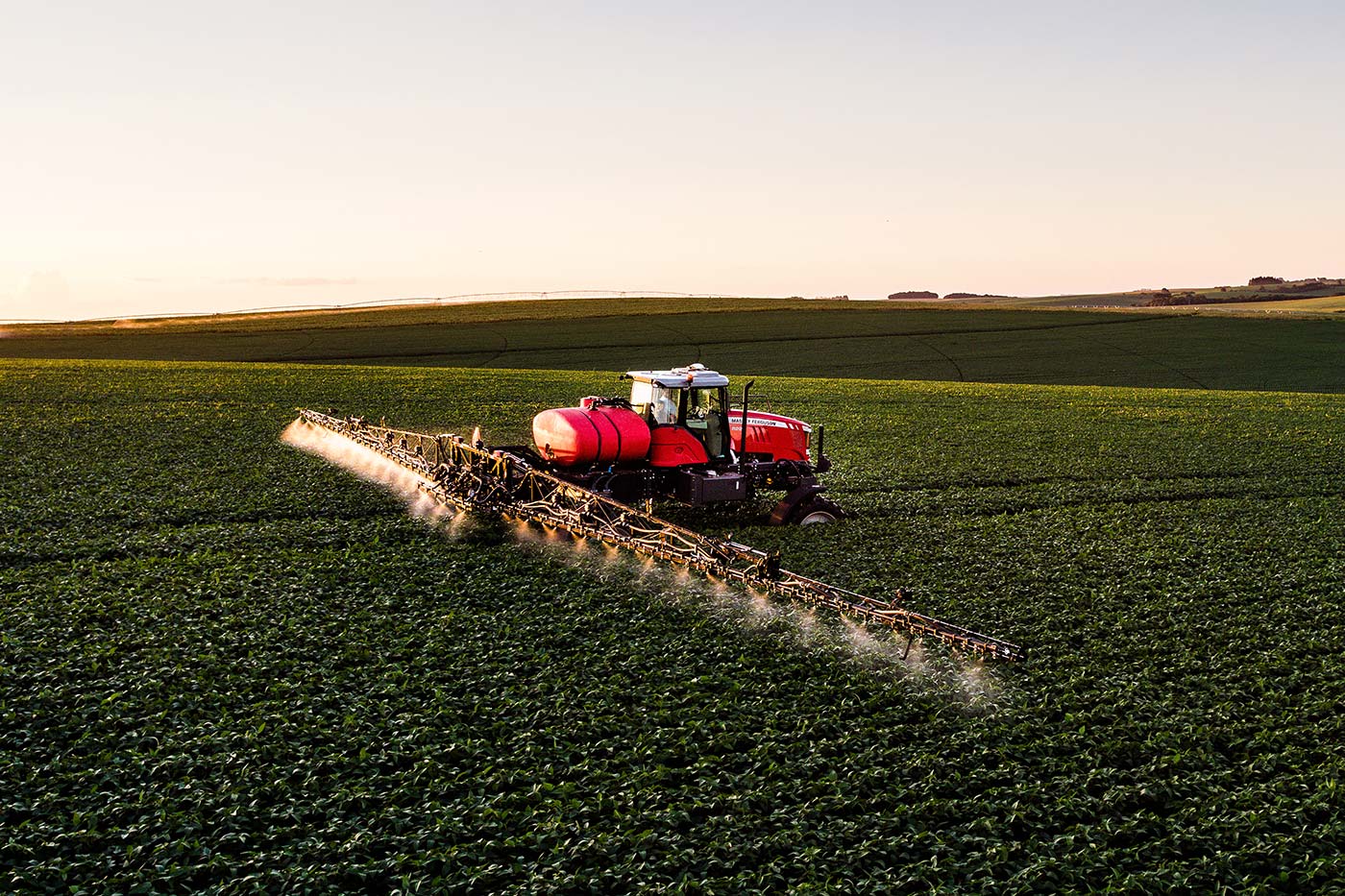

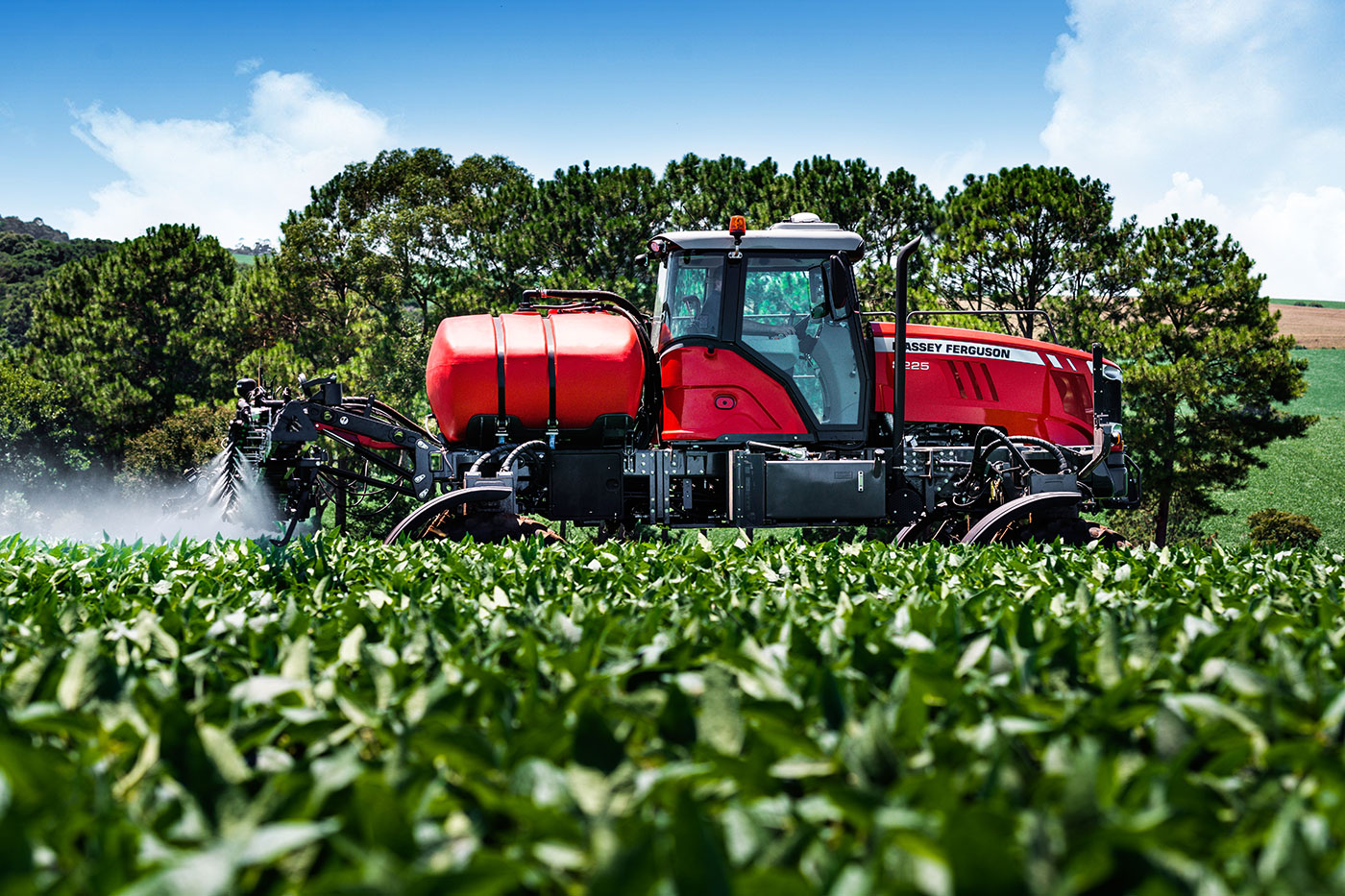

MF 8225 Self-propelled Sprayer
Spraying is essential to guarantee productivity. To effectively spray, the farmer needs straightforward and dependable machines. Massey Ferguson sprayers are equipped with exclusive high-torque AGCO Power engines to tackle any challenge.
Designed to meet the needs of small and medium-sized applications, the MF 8225 has been tried and tested.
The MF 8225 is unbeatable and efficient.
Your Next Steps
Fuel efficient Engine
The MF 8225 Sprayer is equipped with the powerful AGCO POWER 4-cylinder 4.9-litre Tier 3 engine. The engine produces 174 HP and 675 Nm of torque at only 1,900 rpm. Combined with the transmission the sprayer tackles all terrains effortlessly.
Cross Drive Transmission
The MF 8225 Sprayer utilises Bosch Rexroth components in its effective cross-drive transmission. Two large capacity 90cc variable displacement pumps drive opposing wheel motors on the front and rear of the machine. The hydrostatic drive system has a poly link between the flywheel and the first pump, providing a fail-safe in the event of a pump failure.
The fully bolted C-Flex chassis gives the MF 8225 Sprayer the ability to traverse channels, banks and contours most would not attempt. The frame is not welded at any point, so when the suspension runs out of travel, the chassis itself will flex, allowing all wheels to stay in contact with the ground, ensuring the safety of the sprayer even in the most adverse conditions.
High Ground clearance.
The sprayer has a ground clearance of 1.65 m on 380/90R46 tyres, which enables it to spray efficiently in fields with tall crops.
The MF 8225 comes fitted with a guidance system from the factory. To monitor productivity, the jobs and spray data are recorded on the Topcon X25 terminal and easily stored onto a USB for record keeping and data analysis.
28 Metre Boom
A 28-metre boom is available as standard on the MF 8225 sprayer. Its design comes with added strength to handle arduous African conditions. Consequently, the boom floats exceedingly well in high-speed spraying applications.
Comfortable Operator Environment
The cabin of the MF 8225 Sprayer is simple, uncluttered, and functional to maximise operator comfort and safety. The controls are ergonomically arranged and within reach. The cab is spacious to increase daily productivity and reduce fatigue, especially on long working days. Low noise levels and vibration make the ride more comfortable. The adjustable air ride seat combined with the air-conditioning system ensures a comfortable and pleasant workstation at any time of the year.
Technology & Innovation
AGCO POWER 6.6 litre Tier 3 engine
The engine is programmed to create maximum torque where the drive system requires, providing high torque at low revs. With 174 HP and 675 Nm of torque at 1,900 rpm, there‘s no hill too steep to navigate.
Bosch Rexroth Transmission
The self propelled sprayer utilizes Bosch Rexroth components in its effective cross drive transmission. With huge amounts of torque and no loss of traction, the sprayer gives you the control in even the toughest conditions.
4X4 Hydrostatic Drive System
The hydrostatic drive system has a poly link between the flywheel and the first pump, providing a fail-safe in the event of a pump failure.
Active Airbag Suspension
Each airbag is controlled by its own dedicated mechanical valve making sure the ride is adjusted to every change in condition. It offers a longer service life as shock loads are soaked up by the suspension, not the chassis and boom.
Controls are ergonomically arranged, within easy reach and the cabin provides a generous amount of space to increase daily productivity and reduce fatigue, especially when spending long hours behind the wheel.
The adjustable air ride seat combined with the air-conditioning system and low levels of noise and vibrations ensures a comfortable and pleasant work station at any time of the year.
Main Commodity Tank
The 2500 litre tank has dual hydraulic agitators and a single oscillating tank rinse nozzle fed by a 240-litre freshwater reservoir. The tank sits in a cradle which allows the chassis to flex if required beneath the tank.
The filling station of the sprayer is simple to understand and operate. It Features include: 2” and 3” cam lock fill point, 568 l/min reload pump, Unload point, 26.5 litre hypro chem hopper, adjustable agitation rate, Fresh water pump on/off, Tank rinse.
Sprayer Boom Design
The boom is strong, reliable and floats exceedingly well even in high-speed spraying applications. The booms are fitted with section control and a fence line nozzle. The boom is available in 28 metres width as standard, and 25 metres as an option.
Norac Auto Boom Levelling
Norac auto boom levelling with 5 sensors.
1" stainless steel boom lines.
Massey Ferguson’s complete guidance system for hands-free steering, available factory fit on new tractors or as an after-market installation. The system uses Trimble - RangePoint, Trimble - CenterPoint and RTK corrected signals to increase efficiency.
With the fully automatic Section Control , operators can apply crop protection products without overlapping. This prevents double treatment and areas worked outside of the field edges.
Max Power (hp)
Boom Width (M)
Tank Capacity (litres)
|MF 8225||174||AGCO Power 4 cylinder, 4.9 Litre||Bosch Rexroth Hydrostatic Fulltime 4x4||28||2500|
