The Trident was designed with a single mission in mind: to increase capacity and reduce complexity so you can produce more every day.
With the Trident™ family of combines you’ll put more clean, whole grain in the hopper with less downtime, maintenance and effort. Going back to basics, but also introducing new technologies. With many elements of the new line completely redesigned.
Your Next Steps
Key Features and Benefits
Built for more power
A turbocharged 6 and 7 in-line AGCO power engine delivers power to this powerful machine. The common rail direct fuel injection ensure the availability of power and torque while maintaining excellent fuel economy. Our Electronic Engine Management 4 (eeM4) monitors engine performance and is capable of up to 100 adjustments per second so that fuel delivery rate and timing are in constant sync.
Choose the Ideal speed
The four-speed transmission offers more speed options in the field for transport. Regardless of the type of terrain, the ideal harvesting speed can be selected. With a simple touch of a button on the console.
More Processing Power
Our new processing system - Trident™, was developed to increase grain processing capacity without sacrificing product quality. It features a 360° gentle threshing system. New rotor feed system now features segmented feeder and adjustment of the gap between the feeder and the bottom of the trough feeder.
The largest rotor in the market
The new Trident™ series rotor has four spiral rows of segmented, overlapping and removable threshing elements. For higher quality, two rows of narrow and wide interchangeable plates are placed in the separation area. All this coupled with the largest axial rotor in the industry allows for the best threshing capacity (high inertia) and separation with less power requirement.
Efficient Cleaning system
The Trident™ Series incorporates an innovative multi-stage cleaning system that uses compressed air to clean. The 6.10m² cleaning area is supported by a two-outlet fan box, allowing for more thorough cleaning and less sensitivity to ground slopes. In addition, with the rotor positioned directly above the feeder tray, the new top directed airflow cleaning is performed over the entire length of the processor and still acts on any debris separated at the rear of the rotor.
More comfort and productivity
Harvesting work is hard and arduous, but with the new ComforTechII™ cab, making harvesting easier. The 3.4m³ cab is quieter and more spacious than ever. A 5.7m² of glass surface offers the best view of the field. Controls are ergonomically placed on the main console with a multifunction lever that controls the main functions of the harvesting operation. The narrow steering column is easily adjustable to improve comfort.
Intelligence in the field
The MF Trident comes with Fieldstar II to monitor and control daily tasks. Using modern sensors and GPS technology, Fieldstar II records machine performance and maps the productivity of the harvest to know the existing variability and help in decision making.
Continuous cleaning without stopping
The fan is driven hydraulically, adjusting the speed automatically to keep the engine temperature in an optimal working range. This improves performance. The “V-Cool” cleaning fan is auto reversible and, as you work, it cleans the system’s intake grill. This functions by blowing air into the radiators automatically every 15 minutes, depending on the temperature.

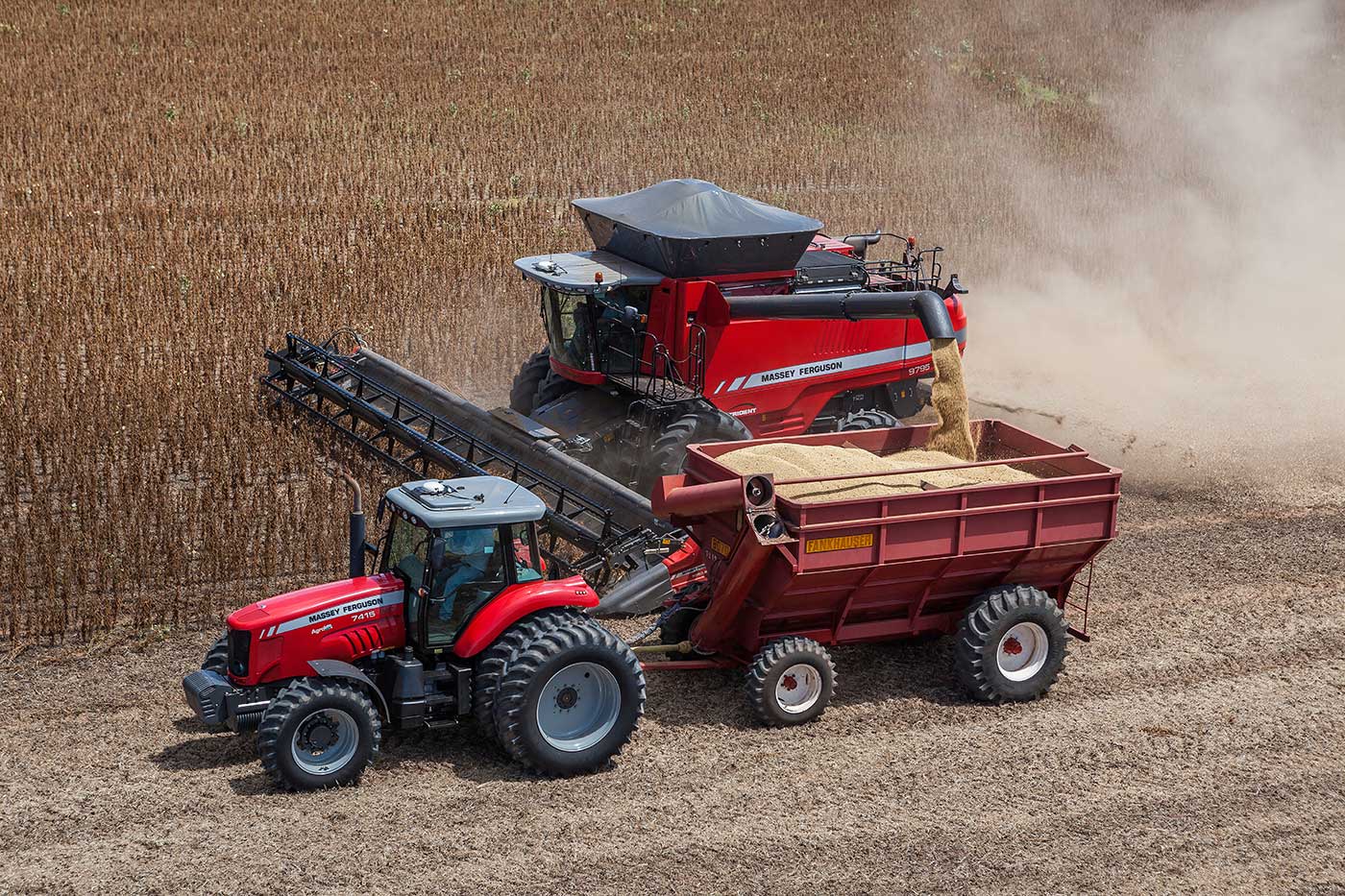

The MF 9695 has a grain tank volume of 10,570 litres while the MF 9795 and MF 9895 have a volumes of 12,334 litres with 88L/s discharge rate for MF 9695 and 150 L/s for MF 9795 and MF 9895.
Max Power HP (kW)
GRAIN CAPACITY (L)
UNLOADING SPEED (L/S)
MAX CUTTING WIDTH (M)
|MF 9695||370 (271)||10570||88||9.14/10.66||AGCO Power 6 cylinder, 8.4 Litre|
|MF 9795||430 (312)||12334||150||10.6/12.1||AGCO Power 9.8 L|
|MF 9895||495 (364)||12334||150||12.1/13.1||AGCO Power 9.8 L|
