MF 5S

Move into a new era of possibilities

Simply the best-in-class tractor between 105hp and 145hp, the new MF 5S Series offers a choice of five models with a totally new, upgraded design incorporating the iconic sabre line livery.

Agile and nimble, it offers best-in-class visibility combined with excellent manoeuvrability from its tight, 4m turning radius. Delivering great performance, the MF 5S combines economy with high levels of comfort and control along with a wide choice of equipment and options to suit all applications.

Developed to tackle all challenges and tasks on the farm efficiently and economically, the MF 5S is indisputably the first choice for contractors, dairy, livestock and arable farmers as well as other producers.

Current Offers & Promotions

MF 5S | 105-145 HP

MF 5S | 105-145 HP

The best-in-class dairy and livestock tractor

1+5 Semi annuals @ 0% (up to 45% RRP) Your MF 5S comes with 3 year's MF Care Warranty*

Key Benefits

Low operating costs

Low operating costs

AGCO Power, 4-cylinders, 4.4 litre engine complies with Stage V emission rules using the compact All-in-One (DOC+SCR+SC) after-treatment system. All models deliver more power with reduced fuel and AdBlue® consumption. An electronic wastegate turbocharger further improves performance and reduces emissions. Also cutting costs and fuel consumption are the Super Eco transmission for roadwork, Eco PTO speed and automatic low idle engine speed.

Efficient drivelines deliver higher productivity

Efficient drivelines deliver higher productivity

Proven transmission technology: Dyna-4 (16x16) with Speedmatching or Dyna-6 (24x24) with AutoDrive for automatic shifting. Super Eco operation attains 40km/hr at a low 1,530rpm helping to significantly cut fuel consumption and increase driving comfort. Perfect engine and transmission partnership for maximum outputs.

Equipped to work faster with the widest implements

Equipped to work faster with the widest implements

A wide choice of hydraulic systems deliver flowrates from 58 to 110 litres/min from open-centre or load-sensing systems. Double-up operations with the new front linkage design offering lift capacities up to 3,000kg (+17% vs previous range), with dedicated control valve and two spool valves; while the stronger, rear linkage lifts up to 6,000kg (+14% vs previous range). A new suspended front axle offers higher comfort, an improved turning radius and permits a higher Gross Vehicle Weight of 9,500kg. The MF 5S can safely carry and handle larger loads to operate wider machines at faster speeds. SpeedSteer further improves operation in the field making it easier and faster to make tighter (4m radius) headland turns.

The perfect loader partner

The perfect loader partner

Best-in-class visibility, down to just 4m ahead of the tractor, over the slim dashboard and narrow steep-nose bonnet, combines with great manoeuvrability and a choice of three hydraulic systems to provide exceptional pressure, flow and response. Left-hand Power Control lever changes direction, shifts speeds and selects neutral, while a choice of joysticks operate the loader, as well as change direction and speeds. MF 5S tractors are now available with factory-fitted loaders or can be ordered loader ready, just requiring the mounting of the loader arms and implement.

Ultimate comfort for a more productive working day

Ultimate comfort for a more productive working day

Wide choice of Essential, Essential Panoramic, Efficient or Exclusive specifications - all equipped with a comfortable quiet, cool cab with simple and efficient suspension. Easy to access cab offers the best visibility on the market from its large glass area and steep bonnet with unrivalled visibility, down to just 4m ahead of the tractor. New front axle suspension further improves comfort. New, intuitive Datatronic 5 console (standard with Exclusive version) delivers the information you need to manage and control all tractor’s functions. New armrest and perfect ergonomics mean all controls fall easily to hand for effortless operation.

Straightforward Fuse Technology for more accuracy

Straightforward Fuse Technology for more accuracy

• MF Guide offers sub-metre and centimetre accuracy improving economy by reducing overlaps with a choice of Novatel or Trimble receivers and correctional signals. • MF Section Control minimises overlaps by 12% controlling sections, while MF Rate Control adjusts the application rate on the move, saving precious inputs. • MF Connect telemetry helps you manage fleet performance by remotely accessing machine data in real time to monitor and analyse operating information from your MF 5S. • MF TaskDoc™ and MF TaskDoc™ Pro create and securely transfer detailed job records between the field and office. • Datatronic 5, 9in touch-screen terminal for tractor functions, ISOBUS, MF Guide, MF Section Control and MF Rate Control, with intuitive operation to deliver more precise farming. • Optional Fieldstar 5 terminal provides the convenience of another touch-screen display creating an easy to use precision farming package.

Low repair and maintenance cost

Low repair and maintenance cost

Long, 600hr, engine maintenance interval cuts the cost of ownership. MF Care repair and maintenance contracts are available to help farm businesses to operate competitively and cost-effectively, while an extensive dealer network means that support is only just a phone call away.

Straightforward and Dependable

The muscle to tackle any task
The MF 5S Series is engineered for hard work with uprated lift capacities that allow it to carry heavier loads and work faster with modern machines and implements.
Compact and manoeuvrable, MF 5S tractors are easy and comfortable to use – in the field, on the road and around the farmyard and buildings.
Operators of the new MF 5S series sit comfortably in a high quality, productive environment that is quiet and cool with straightforward controls making it easy to get the best from the tractor.
The MF 5S Series is equipped to a high standard specification, which is complemented by useful optional equipment packages that help you get job done more easily and efficiently. All information regarding these packages can be found in the table below.
A range of technology in the MF 5S helps you manage your operations and business more effectively and efficiency. Offering these advanced systems in the 105hp to 145hp sector clearly shows the pace of innovation and progress being set by Massey Ferguson. More than ever before, modern progressive farmers are relying on data and information to keep vital records, improve efficiency and productivity to increase yields, reduce costs and increase returns. Massey Ferguson’s straightforward, dependable and intuitive technology is easy to use helping owners and operators to operate equipment more effectively, analyse operations and make informed decisions to increase profits.

Operator Environment - Package Specifications







Essential



Efficient



Exclusive

Information about

the different packages

Essential is the base specification for the MF 5S Series, but it is anything but basic. It provides all the key elements you would expect from Massey Ferguson, with a blend of simplicity, ease of use and versatility to fit the needs that require power and performance.

Equipped with key, productivity enhancing features, the Efficient package helps you to work faster, to a higher standard and with more accuracy.

Available for all MF 5S Series tractors, Efficient versions can come with either a Dyna-4 or Dyna-6 transmission, both with AutoDrive as standard.

Loader-ready tractors can be specified with an electronic multi-function joystick option, which is integrated into the armrest console. As well as operating the loader and transmission functions, this can also be used to control the optional front linkage.

Exclusive tractors, equipped with many advanced features, are designed for more intensive, larger-scale operations seeking cost-effective benefits for the business.

The Exclusive armrest provides a range of useful features, offering extra comfort and convenience for the operator when operating a range of frequently-used controls.

The ISOBUS compatible Datatronic 5 terminal is standard. With its new design and easy to use intuitive icons, the 9in touch-screen monitor displays key machine operating information and records as well as providing memory functions. Datatronic 5 can operate any ISOBUS compatible implement and also oversees the automation of headland management, trailed implement control (TIC) and Dual Control. The display can be connected to a camera for improved visibility of rear mounted implements and trailers.

Standard Features

- Control Centre with T-handle transmission lever.
- Dyna-4 with Speedmatching or Dyna-6 - 40km/hr Eco with AutoDrive.
- Brake to Neutral disengages transmission into neutral when you brake.
- Mechanical control of spool valves.
- Air Conditioning.
- Telescopic large side mirrors, with wide angle.
- Radio aerial and speakers.
- Air Suspended Swivel Seat with armrest.
- Mechanical cab suspension.
- Multi-function armrest with Multipad.
- Dyna-4 or Dyna-6 transmission with AutoDrive.
- Air-conditioning with manual adjustment.
- Auto Air-suspended swivel seat with armrest.
- Electrical and mechanical controls of spool valves.
- Large, telescopic side mirrors with wide angle.
- Radio/ CD / MP3 Front Aux-in / Bluetooth with micro and controls in armrest.
- Two USB ports.
- Mechanical cab suspension.
- Multi-function armrest with Multipad lever.
- Dyna-4 or Dyna-6 transmission with AutoDrive.
- Auto Air Conditioning.
- Superluxe air suspended seat.
- Four electrically operated spool valves.
- Large, telescopic side mirrors, with wide angle, electric de-icing & adjustment.
- Radio/ CD / MP3 Front Aux-in / Bluetooth with micro and controls in armrest.
- Two USB ports.
- New Datatronic 5 ISOBUS terminal to manage all tractor functions.

Optional Features

- Integrated Front Linkage System and PTO.
- Mechanical multi-function loader joystick.
- MF Connect Telemetry system ready.
- ISOBUS compatible Fieldstar 5 terminal for full precision farming package including video, MF Guide guidance system, MF Section Control, MF Rate Control and MF TaskDoc™.
- Panoramic cab with polycarbonate right-hand side window.
- Integrated Front Linkage System (IFLS) and PTO.
- MF Connect Telemetry system ready.
- ISOBUS compatible Fieldstar 5 terminal for full precision farming package including video, MF Guide guidance system, MF Section Control, MF Rate Control and MF TaskDoc™.
- Superluxe Air Suspended Seat.
- Integrated Front Linkage System (IFLS) and PTO.
- MF Connect Telemetry system ready.
- ISOBUS compatible Fieldstar 5 terminal for full precision farming package including MF Guide guidance system, MF Section Control, MF Rate Control for variable rate applications and MF TaskDoc™ as well as video.
- Superluxe Air Suspended Seat.

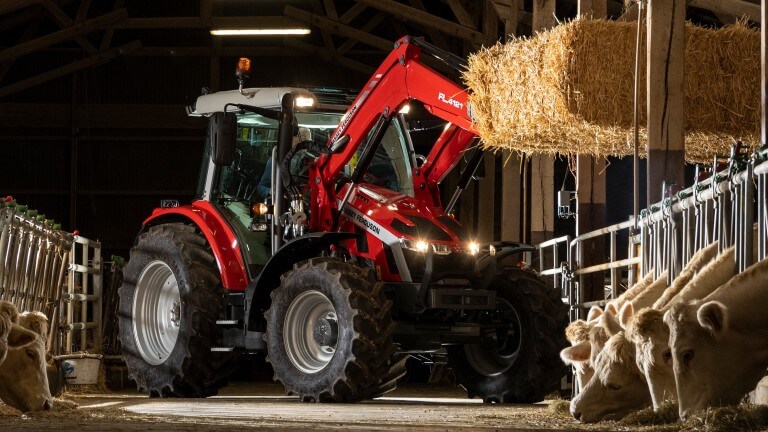

Tractor-loader

The MF 5S Series tractors are specifically designed to deliver optimum handling ability when working with MF FL Series loaders. Together they are the best-in-class combination, with the fully integrated loader now available factory-fitted to deliver ultimate performance.

Unrivalled loader features

• Excellent visibility down to just 4m ahead of the tractor over new slim dashboard and the narrowest steep-nose bonnet in the sector
• Highly manoeuvrable, agile design
• Two cab positions and a choice of Standard or Visio roof
• A choice of three hydraulic systems providing exceptional pressure, flow and response
• Left-hand Power Control lever or right-hand T-handle to change direction, shift speeds and select neutral
• A choice of joysticks operate the loader as well as change direction and speeds
• Brake to Neutral – braking system puts the transmission into neutral when the brake pedal is pressed, making loader operation safer, easier and much more comfortable
• ‘Comfort-Control’ - Adjustable shuttle sensitivity – from slow and smooth to fast and dynamic direction changes
• Tractors can be ordered with factory-fitted loaders.

MF FL Series loaders

• Designed for fitting to MF 5S Series tractors
• Clean loader arm design offers unrivalled visibility and safety
• Enclosed pipework reduces the risk of damage
• ‘Lock & Go’, semi-automatic connection and removal system simplifies mounting
• Fast coupling of all hoses
• Soft Drive protects operators and the machine from shock loads
• Fully integrated operation through the range of MF 5S Series joysticks
• Simple fitting of a wide range of implements.

Ultimate loader specification

The MF 5S Series is available complete with a factory-fitted loader. Alternatively, the tractors can also be ordered as ‘loader ready’, equipped with a range of unrivalled factory-fitted features, only requiring mounting the loader and attachments
• Fully integrated loader sub-frame
• Pre-installed hoses to the spool valves mounted on the loader bracket
• Choice of mechanical or electronic joysticks

Mechanical or Electronic control provides:
• Additional functions set on the dashboard SIS display
• Automatic bucket shaking system*
• Automatic engine speed selection when joystick is moved*
• Hydraulic in-cab implement locking
• Hydraulic flowrate setting*
• Loader suspension on/off
• Brake to Neutral
• Operation of the 3rd and 4th loader functions

*Available with electro-hydraulic loader valve.

Available Models

Model

Max Power (hp)*

Engine

Transmission

Max Torque (Nm)**

Lift Capacity (kg)

MF 5S.105 105 AGCO Power 4.4L, 4 cylinders Dyna-4, Dyna-6 440 6,000
MF 5S.115 115 AGCO Power 4.4L, 4 cylinders Dyna-4, Dyna-6 460 6,000
MF 5S.125 125 AGCO Power 4.4L, 4 cylinders Dyna-4, Dyna-6 520 6,000
MF 5S.135 135 AGCO Power 4.4L, 4 cylinders Dyna-4, Dyna-6 540 6,000
MF 5S.145 145 AGCO Power 4.4L, 4 cylinders Dyna-4, Dyna-6 550 6,000
* @2,000rpm | ** @1,600rpm | Choice of ESSENTIAL, PANORAMIC CAB, EFFICIENT OR EXCLUSIVE SPECIFICATION FOR ALL MODELS

YOUR COURTESY FLEET

- BEST-IN-CLASS CUSTOMER SUPPORT
- MAXIMUM EFFICIENCY
- TOTAL TRUST

THE ULTIMATE PROOF OF DEPENDABILITY

Available to all Massey Ferguson tractor owners through participating MF Dealers, it provides a temporary replacement machine to ensure owners can continue working with minimum interruption, maximising uptime while their tractors are being serviced or repaired.

Find out more

Straightforward and dependable service

The MF Always Running courtesy tractor fleet includes a wide range of models, which are selected by dealers to cover the widest customer needs in its local area:

All the below come equipped with Dyna 6 or Dyna-VT transmission, full MF Guidance, front linkage with spool valves.

Livestock/ dairy/ mixed

100hp-130hp sector

Mixed farm

140hp-180hp sector

Arable farm

150hp-190hp

Arable/ contractor

200hp-260hp sector

Arable/ contractor

270hp-405hp sector
(Dyna-VT)

MF 5713 S, 130hp MF 6718 S, 175hp MF 7718 S, 180hp MF 7720 S, 200hp MF 8732 S, 320hp
       MF 7719 S, 190hp MF 7726 S, 255hp MF 8740 S, 400hp



* Please contact your local Massey Ferguson Dealer to check availability in your area. Terms and conditions apply that might vary according the market or country.
