MF 4700 M
Massey Ferguson has always provided innovative, but practical equipment that help farmers to efficiently respond to today’s challenges. The new MF 4700 M Series continues this tradition by offering a modern, high performance, heavy duty, straightforward range of tractors, which provides exceptional efficiency for every type of farmer all over the world.
With its simplistic new design, manufactured in state-of-the-art factories across the globe, with a new choice of transmissions, efficient drivelines and high levels of comfort, this series offers exceptional value for money for every sector.
Choose your version
Platform (82 to 92 hp) and Cab (82 hp to 100 hp) version.
New and cost-effective transmission
12x12 synchronised transmission in two ranges or all new Dyna-2 transmission completely clutchless shifting of 24 forward and 24 reverse speeds.
AGCO Power 3 cylinder engines, 3.3 litre, Stage V with the award-winning All-in-One system.
Straightforward and dependable, practical design makes operation easy
An excellent, modern working environment.
Technology & Innovation
Multi-Function Left Hand Control
The exclusive Power Shuttle lever provides convenient three in-one, straightforward operation. Operators can shuttle between forward/reverse or select neutral, leaving the right hand free.
Developed specifically for 82hp to 100hp tractors, the Dyna-2 is a totally new transmission option. Available for all 4WD models in the MF 4700 M, it provides further versatility allowing users to tailor their tractor to match their specific applications.
Super Creeper Option
A Super Creeper option is also available when the slowest speeds, down to 140m/hr, are required for the job in hand.
Easy Shift Button
The Easy Shift button on the gear lever enables gears to be changed without using the clutch pedal. A standard mechanical shuttle makes it simple to change direction, while the optional Power Shuttle provides fingertip control for forward/reverse shifts.
Brake to Neutral
Brake to Neutral switch (Option) simultaneously operates the clutch as soon as the brake pedal is pressed. This eases the load on the operator, while increasing efficiency and convenience and is particularly useful for loader operations.
Low Mounted Cab
Low center of gravity, easy access to the cab thanks to the low mounted cab.
All MF 4700 M tractors are equipped with a sector-leading, high quality cab, offering excellent visibility through the large windscreen, wide glass doors and curved quarter windows.
Gear Lever Knob
Dyna-2 Powershift changes are made simply and conveniently using a new thumb button on the gear knob higher, selecting precisely the right speed to help increase productivity. Just below, another button provides fingertip control of the clutch.
Right-Hand Side Console
The controls are ergonomically crafted in the right-hand side console, while the gear and the range levers are neatly positioned. A new RMI socket is now integrated into the cab allowing simple and standardised connectivity to access data.

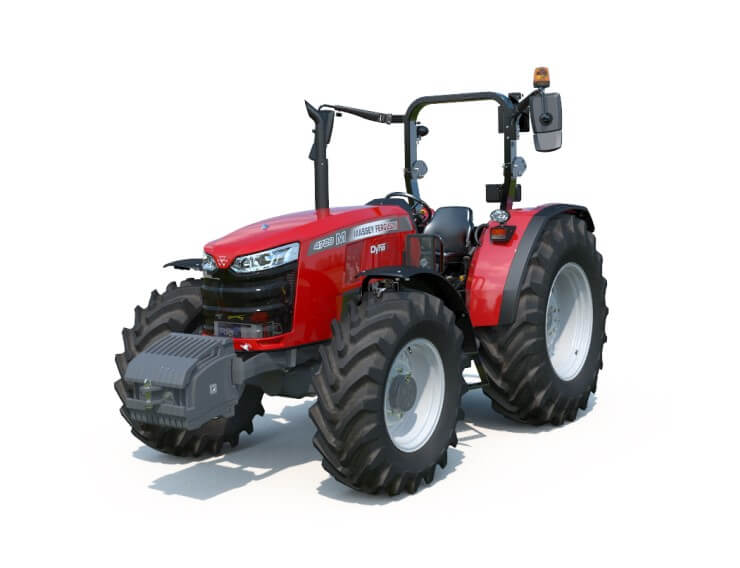

Further enhancing versatility, for every farmer for all types of work, the MF 4700 M Series is also available in Platform versions, which provide operators with the benefit of the same specifications as found on the cab models.
The heavy duty, structural axle casting design contains new inboard reduction units, which employ epicyclic gears for the final speed reduction.
Control is via a modern independent PTO (IPTO) clutch, which is electro-hydraulically engaged and ‘eases’ the engagement, to protect the driveline by gradually taking up the drive.
Electronic Linkage Control - ELC
The industry leading ELC is provided as standard. The system provides precise and responsive control of linkage functions ensuring accurate management of working depth for soil engaging implements plus working height for other implements.
Max Power (hp)*
Max Torque (Nm)**
Lift Capacity (kg)
|MF 4708 M||82||AGCO Power 3 cylinders||Mechanical Synchronised 12 x 12, Dyna-2||347||3,000|
|MF 4709 M||92||AGCO Power 3 cylinders||Mechanical Synchronised 12 x 12, Dyna-2||355||3,000|
|MF 4710 M||100||AGCO Power 3 cylinders||Mechanical Synchronised 12 x 12, Dyna-2||365||3,000|
|* @ 2,000 rpm | ** @ 1500 rpm|
