The MF TH Telehander, built to work hard with you
Purpose built for hard work, MF TH telehandlers deliver the lift heights, capacities and reach you need for fast, accurate and efficient handling.

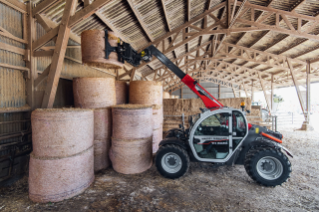

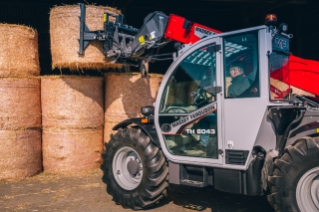

Powerful, precise hydraulics and a high specification make light work of every task – from shifting bales in the field or yard, lifting, stacking and loading to working in confined spaces and traditional buildings.
For access to really tight areas there’s the semi-compact MF TH.6030 model. Like the standard machines, these have four steering modes to enhance manoeuvrability and all offer superb all-round visibility.
Massey Ferguson has completely transformed the MF TH telehandlers, which offer a giant leap forward in efficiency, productivity along with new levels of visibility, ease of use and comfort. This isn’t just an upgrade. It is a breakthrough.
Quiet new cab offers outstanding comfort and visibility
Special curved cab design with easy access, lower profile engine bonnet, new standard air-suspended seat. Now up to 4dBA quieter during loading operations.
Outstanding controls ease operation
Standard, exclusive left-hand Power Control lever and new, 5in colour terminal (optional 7in touch-screen terminal) enhance operation.
New ergonomic multi-function joystick delivers smooth control, requiring 20% less effort for precise operation of the hydraulics and transmission, plus control of the new bucket shake option.
Economical engine settings generate more torque at low rpm to reduce fuel consumption.
Precise control from smooth transmission
Responsive Hydrostatic transmission with a new dynamic or soft driving mode and hand throttle for precise forward speed control at set engine rpm.
Two models to handle every job with ease
Two models, one semi-compact (2.1m x 2.1m) version, to suit all handling requirements and investment levels.
Exceptional manoeuvrability and accuracy
Access everywhere with ease by switching between a choice of four, easy to select, steering modes and work with millimetre precision thanks to the advanced hydrostatic transmission.
Powerful and smart hydraulics
The hydraulic system supplies up to 190 l/min, with proportional electro-hydraulic control of all functions delivering optimum productivity and accuracy.
Efficiency & Comfort
Quiet and roomy workplace
The standard cab offers a 90cm of pillar to pillar width and, at 1.54m, an excellent ceiling height, while retaining an overall height of 2.49m. The compact models access lower buildings, measuring 2.10m on 20’’ tyres.
New Joystick control
Requiring 20% less effort than its predecessor, the new multi-function joystick offers precise operation of the hydraulics and transmission. It can also be mounted on the armrest of optional high specification, heated seat.
Enhanced Joystick Operation
A simple three-position rocker on the rear face of the joystick is used to select forward, reverse and neutral. A new bucket shake option, controlled by a button, helps to quickly fill and empty the bucket.
New ergonomic control
The switches have been moved to the operator’s right-hand side, where they are easy to reach. Identification is simple with backlighting and a new colour code: black for lights and mirrors, orange for transmission, blue for hydraulics.
Clear, colour 5’’ display
All MF TH telehandlers come with a new 5" colour terminal that clearly displays operating information. An intuitive menu makes it easy to navigate between settings and see the view from the optional rear camera.
Optional Boom Suspension
A boom suspension option, which activates automatically in response to speed, provides outstanding comfort and protects the boom during transport.
LED roadwork and working lights
Optional LED work and road lighting increase visibility and comfort, enabling operators to continue working more safely and easily.
Two models to handle every job with ease

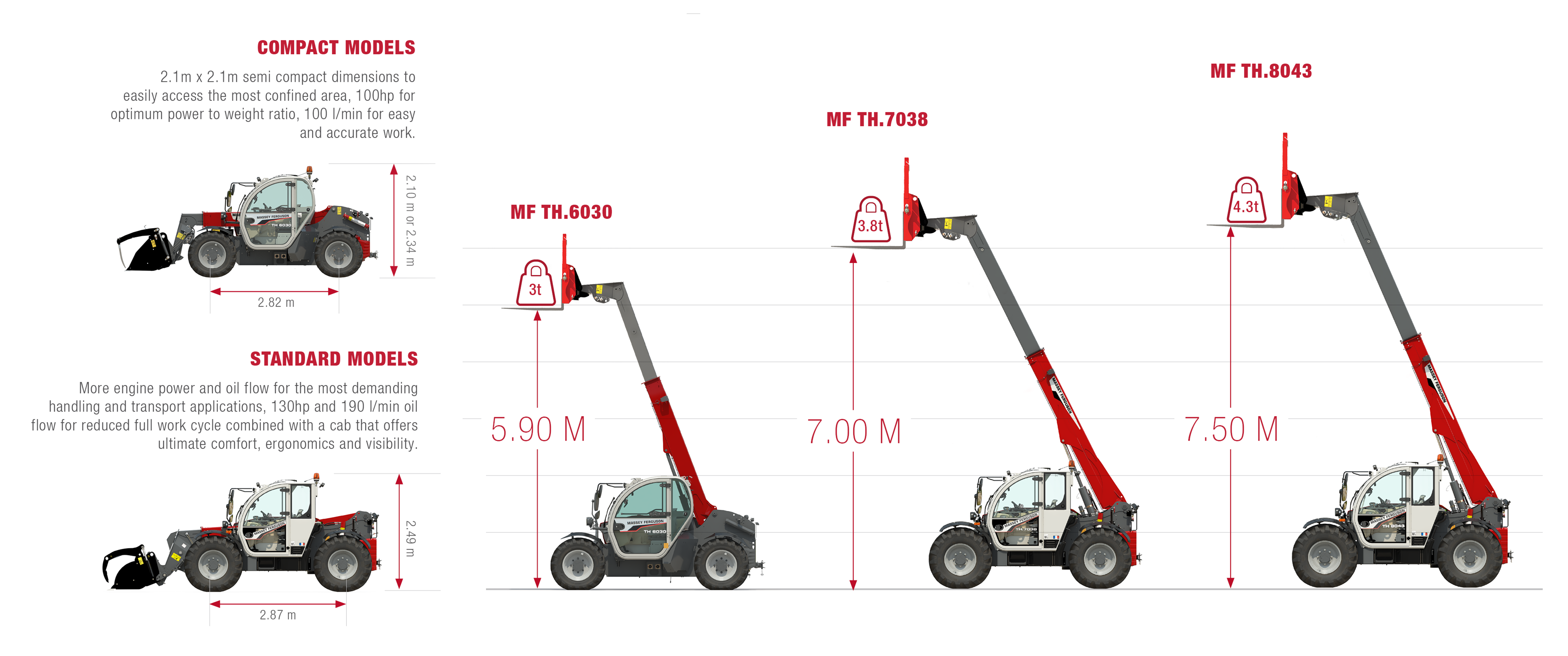

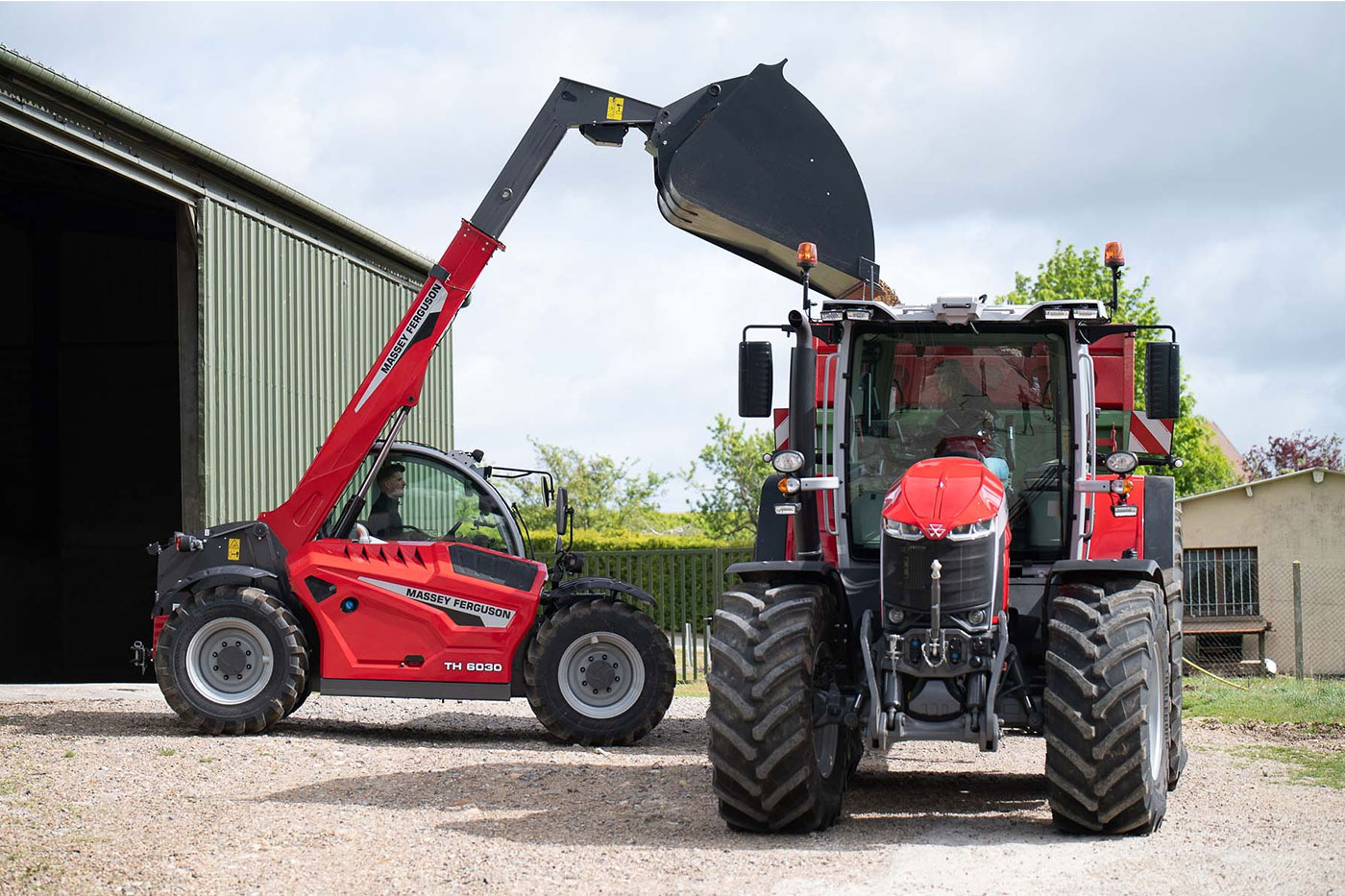

A choice of two models, one semi-compact MF TH.6030 and the latest MF TH.7038, which provides a maximum lift capacity of 3,800kg and height of 7m.
Measuring just 2.1m wide x 2.1m high the semi-compact MF TH.6030 model provides easy access to the most confined areas. Its 100hp engine and 100 l/min hydraulics lift loads of up to 3,000kg to 5.9m.
With 135hp engine and 190 l/min oil flow the TH.7038 model is equipped for demanding handling and transport applications as well as reduce loading cycle times. The quiet, comfortable cab eases operation with well positioned controls and perfect visibility
Economical, cost effective power
Well proven engine design delivers more torque at low engine speeds, which improves fuel economy.
Power and efficiency
All models are powered by a quiet running, 4-cylinder, 3.4l engine. An advanced, yet straightforward system with its components installed neatly under the slim, side bonnet, without any effect on the visibility.
New, low profile engine bonnet
A new engine installation and basket design lowers the engine height which, along with the low profile bonnet, improves visibility to the right-hand side.
Easy access to maintenance
Great visibility from the new reinforced side bonnet, which lifts completely clear for excellent access for routine servicing to reduce downtime.
Reversible fan option
A reversible fan keeps the air inlets clean for maximum cooling efficiency. This can be set to operate automatically, depending on air temperature or it can be adjusted to work at pre-set time intervals.
Smooth and precise hydrostatic transmission
Standard models are fitted with a two-range hydrostatic transmission. Offering a top road speed up to 40km/h*, it combines two mechanical gears with two hydraulic speed ranges enabling operators to select the best speed for the application.
Control in the palm of your hand
The Multifunction joystick lever controls both the transmission and hydraulics, along with operating the boom, boom float and new bucket shaking function. It is light and easy to use, responding smoothly to small hand movements.
POWER CONTROL LEVER
Massey Ferguson’s unique and exclusive Power Control lever, as used on the MF tractor ranges, provides straightforward three-in-one operation, leaving your right hand free to look after the loading.
HAND THROTTLE – AUTO MODE
New hand throttle enables operators to vary hydrostatic transmission forward speed independently of engine speed, allowing you to optimise operations with powered equipment.
Reduced cost of ownership
Hydrostatic transmission allows high engine rpm and low machine speed without braking. When going to neutral the machine is stopped by the transmission, while engine rpm remains constant, so reducing cost of ownership and lowering operator fatigue.
NEW “DYNAMIC DRIVE” DRIVING MODE
Operators can adjust the shuttle operation and throttle response to choose how quickly or slowly the transmission responds to match the application or conditions.
Smart Handling System
SHS enables operators to set and adjust maximum hydraulic flow, regardless of engine speed, which provides precise boom movements as well as high engine power.
Proportional flow boosts productivity
The powerful, hydraulic system provides a consistent flow and proportional, electro-hydraulic control to deliver the optimum accuracy and productivity for all handling tasks.
POWERFUL HYDRAULICS ON STANDARD MODEL
MF TH.7038 telehandler benefits from an excellent hydraulic flowrate of 190 l/min. Delivered by a load-sensing pump, the system delivers the performance to meet the most demanding tasks.
SMART HYDRAULICS ON COMPACT MODEL
Optimum hydraulic flow for the MF TH.6030 model is delivered by a of 100L/min, which provides plenty of flow for all operations.
Intelligent automatic and adjustable controls ease operation with the load-sensing system allowing you to simultaneously operate three boom functions, while steering to speed-up cycle times.
High spec boom control
With 4, electro-hydraulic, proportional spool valves, you can simultaneously operate 3 functions with high precision. A boom suspension option, which activates automatically in response to speed, provides outstanding comfort for transport applications.
Bucket Shake Option
A new bucket shake option helps to fill and empty buckets and forks, quickly and easily. Activated by a button the joystick, the shaking corresponds with joystick movement – providing control of the amount of action and the time.
Easy attachment coupling
Attachments are coupled up quickly and easily thanks to the connector block and its pressure release system. A fourth and fifth service and electric socket can be specified to operate more complex implements, such as straw choppers and feeders.
Maximum height limiter
A maximum lift height limit can be set using a switch on the control panel. This useful function improves safety and protects buildings by simply automatically stopping the lift at the pre-set limit.
Return-to-dig sets the minimum working height of the boom when it is being lowered and retracts the boom before stopping at the pre-set position. This eases operation, increases productivity and protects the building’s floor or ground from damage.
NOT LIVE Return-to-ground
It sets the minimum working height of the boom when it is being lowered and automatically retracting the boom before stopping at the pre-set position. This eases operation, increases productivity and protects the floor or ground from damage.
A choice of four steering modes and no rear overhang deliver superb manoeuvrability to help you access and work in confined spaces and traditional farm buildings.
Select the steering mode to suit
All MF TH telehandlers offer four, selectable steering modes to provide optimum manoeuvrability in all operating conditions. It’s easy to change between modes by simply pressing a switch in the cab.
Four steering modes
The choice includes Two-wheel steer; Four-wheel steer – for tightest turns; Crab-steer – for efficient filling, grading and working alongside walls; Semi-crab – sets the rear wheel angle - useful filling silage clamps or mucking out buildings.

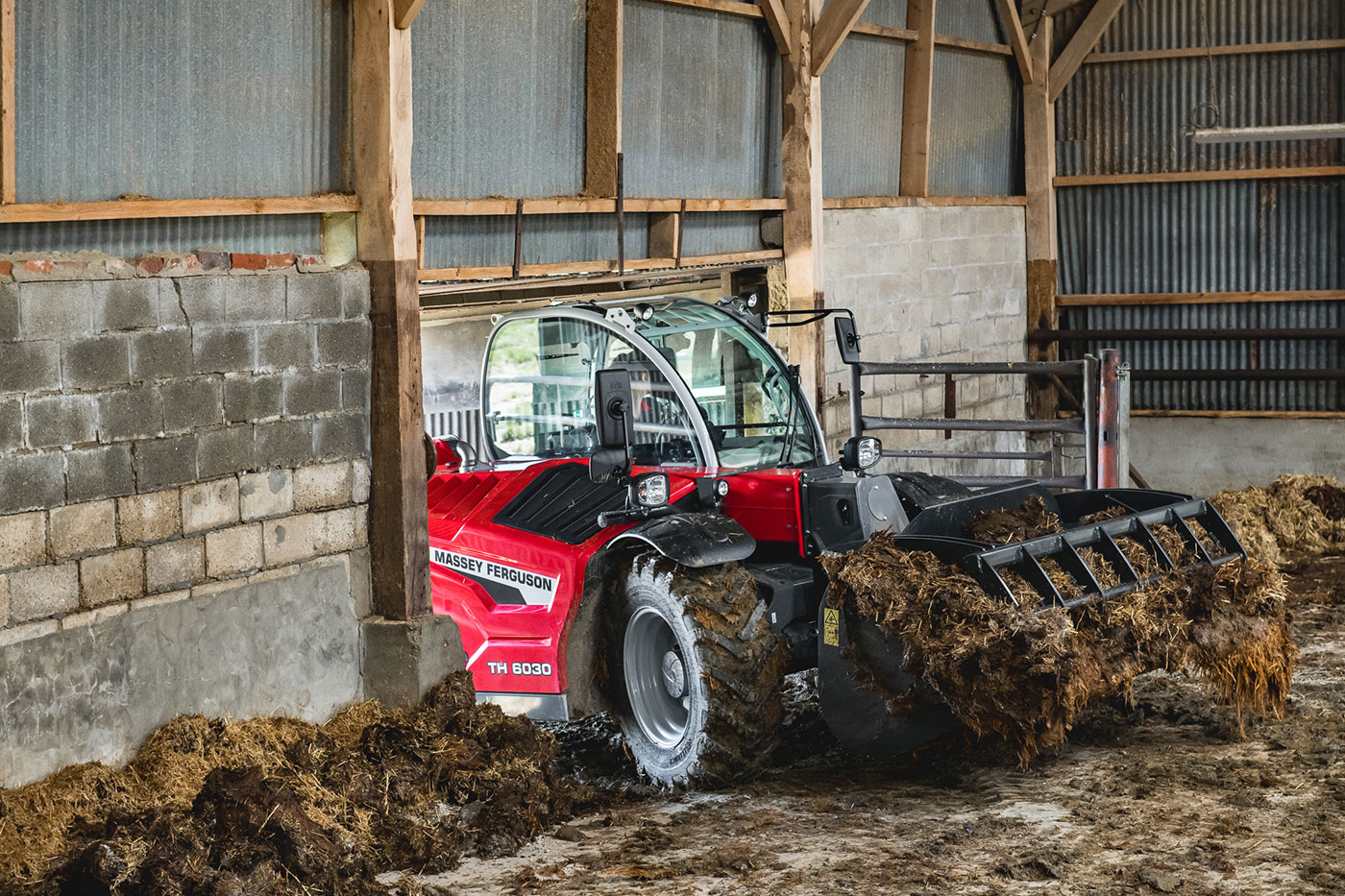

Designed specifically for handling heavy loads in confined areas, the 3,000kg capacity, semi-compact, MF TH.6030 takes loads to 5.9m.
Semi-compact improves access
Measuring just 2.1m high and 2.1m wide, with the low cab position and four-wheel steering manoeuvrability, this powerful compact machine opens up previously inaccessible areas to mechanical materials handling.
Comfortable and efficient operation
Excellent manoeuvrability ensures hassle-free working days for maximum productivity. The spacious cab and comfortable operator area with fully proportional joystick allow for smooth operation.
Dampened retracting system
For a smoother operation when retracting the boom, all MF TH are fitted with a dampened retracting system.
Protection from the working environment
A 8mm thick belly plate protects the MF TH telehandler transmission and underside from knocks and damage – even when working in the harshest conditions. On the boom new protection covers reduce wear by protecting against ingress of dirt and dust.
Less downtime - more work done
Access for routine maintenance is easy, thanks to the wide opening bonnet. Servicing is straightforward, with all the components including the filters, cooling package and AdBlue system well positioned for daily maintenance to maximise uptime.
Good design helps reduce the need for servicing. Hydraulic Lash Adjustment avoids the need to check these manually – saving 20hr of service costs over 4,000hr of machine operation.
The air filter is removed easily for checking and cleaning. An optional automatic reversible fan, helps prevent dust, straw and other materials reducing the efficiency of the cooling package.
New wide opening bonnet
The new reinforced side bonnet lifts clear on gas struts to provide quick and clear access to service the engine, air filter, cooling system and air conditioning system.
Maximum Lift height (m)
Maximum Lift capacity (kg)
Cab Height (mm)
Oil Flow (l/min)
Max Power (hp)
|*24" tyres / **20" tyres|
