Rotary Rakes

Excellent raking quality, easy handling and a durable design - these qualities give you good reason to buy a Massey Ferguson rake.

Current Offers & Promotions

MF Rake Series

MF Rake Series

ORDER EARLY WITH 0% P.A. FINANCE AVAILABLE*

Offer valid to February 28, 2025.

Key Benefits

Technology & Innovation

Excellent raking quality, easy handling and a durable design – these qualities give you good reason to buy a Massey Ferguson single-rotor rake.

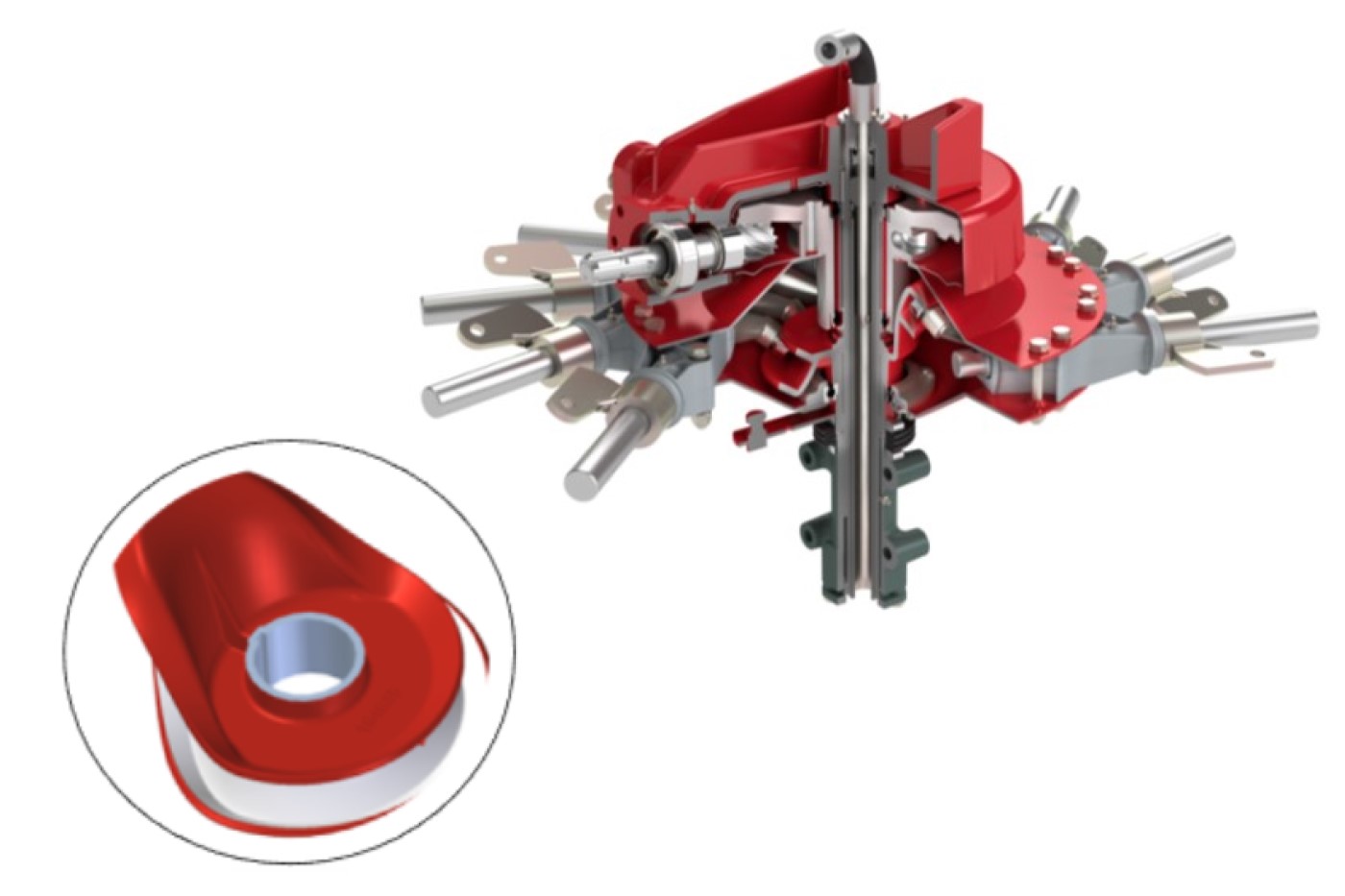

Rake Head

Rake Head

The enclosed rake head from Massey Ferguson protects all of the important components against dirt and dust. This design is a guarantee of a long service life.

Cam Track

Cam Track

The optimised shape of the cam track, which is made of spheroidal graphite cast iron, provides maximum smooth running and quick, precise lifting of the tines.

Modern and Proven Design

Modern and Proven Design

The large-dimensioned drive unit and the precision-manufactured tine arm housing made of aluminium alloy, are both good examples of a modern and proven design.

Swath Deposit to the Right

Swath Deposit to the Right

All Massey Ferguson single-rotor rakes place the swath to the right. This way, you always have your perfect swath in view as the tractor operating controls are on the right.

Special Bolt-On Connection

Special Bolt-On Connection

The rake head is bolted together using a conical ring to form a sturdy unit. This has the advantage that the bolts are not subjected to any shearing effect, but rather only to compressive and tensile forces.

Tine Support

Tine Support

All MF tine supports are made of sturdy tube material and are manufactured from one piece of metal. The connection point to the tine arm is machined for a perfect fit, which makes it possible to insert the tine arms easily, and reduces wear to a minimum.

Tine Fixture

Tine Fixture

The tines are not pushed over the tine tube, instead each tine is screwed in from the bottom. The advantage of this is that the side of the arm facing the forage is absolutely smooth and therefore does not allow forage to stick to it.

Perfect Working Height

Perfect Working Height

The linear height adjustment, which is fitted as standard, can very easily and conveniently adapt to the working height and your ground conditions.

Tangentially Arranged Tine Arms

Tangentially Arranged Tine Arms

Best raking quality is achieved with the tangential arrangement of the tine arms, creating an ideal swath. It makes significantly higher working speeds possible – the best pre-requisites if the harvesting weather is not in your favour.

MF RK 702 TR-SDX, MF RK 672 SD-TRC, MF RK 772 SD-TRC and MF RK 842 SD-TRC PRO
Two-Rotor Side Delivery Rakes

Two-Rotor Side Delivery Rakes

MF side delivery rakes provide the perfect flexible solution in all terrains. With these rakes it is possible to deposit two narrow swaths, one large swath or a double swath by making a return pass.

Large Overlaps Between Rotors

Large Overlaps Between Rotors

Large overlaps between rotors ensure a tidy forage transfer and swath formation even under difficult working conditions.

MF RK 702 TR-SDX Drawbar

MF RK 702 TR-SDX Drawbar

This drawbar mounted model has a transport width of less than 3m with the tines mounted for fast field-to-field movements. Whilst on the transport chassis models the lowest folded height is always ensured irrespective of the set working width.

Automatic working width pre-selection, tidy raking work, precisely deposited swaths and quick and safe travel from field to field, are all offered by the MF RK 662, MF RK 762, MF RK 802 and MF RK 1002 two-rotor central delivery rakes. They can master any working situation. With the optional 6-wheel contact-sensing chassis and the cardanic suspension of the rotors, tidy and loss-free raking work is always achieved. The best starting point for your high quality forage.
Automatic Height Limitation

Automatic Height Limitation

The lowest transport height is always achieved regardless of the pre-selected working width. Because of the automatic height limitation in the headland position, it is no longer necessary to switch off the tractor PTO on headland turns.

Adjustable Working Width

Adjustable Working Width

The working width can be adjusted without tools and, combined with the externally adjustable control cam, enables the creation of an optimum swath for the machines following on behind.

PRO Models

PRO Models

The new rotor chassis on the MF RK 802 PRO and MF RK 1002 PRO has been equipped with six wheels and with a tandem axle with 18-inch tyres for optimum performance.

MF RK 1254 TRC
Four-Rotor Rakes Construction

Four-Rotor Rakes Construction

The simple yet extremely robust construction of the MF Four-Rotor Rakes mean they are easy-to-operate for increased flexibility when used on more than one farm.

Headland Control System

Headland Control System

Equipped on MF RK 1254 TRC model. This system controls the delayed raising and lowering of the rear pair of rotors and enables you to deposit perfectly-formed swaths at the headland.

Quick Transport Speed

Quick Transport Speed

The MF RK 1254 TRC is designed for a transport speeds of up to 50 km/h, which ensures quick journeys from field to field.

PRO Models and ISOBUS

PRO Models and ISOBUS

The MF RK 1254 TRC-PRO and MF RK 1404 TRC-PRO feature full ISOBUS operation of all rake functions for the ultimate in control and convenience.

Available Models - Single-Rotor rakes

Model

Mounting category

Working Width (m)

Tine arms per rotor

Power demand (HP)

PTO (rpm)

MF RK 341 DN Cat I and II 3.40 8 23 540
MF RK 361 DN Cat I and II 3.60 10 27 540
MF RK 421 DN Cat I and II 4.20 12 41 540
MF RK 451 DN Drawbar 4.50 12 41 540
MF RK 450 DN Cat I and II 4.50 12 41 540

Available Models - Two Rotor Side Swath Delivery

Model

Mounting category

Working Width (m)

Tine arms per rotor

Power demand (HP)

PTO (rpm)

MF RK 672 SD-TRC Cat I and II 5.80 - 6.70 12 26 540
MF RK 702 SDX-TR Trailed 6.3 - 7.00 12 45 540
MF RK 772 SD-TRC Cat I and II 6.60 - 7.70 12 41 540
MF RK 842 SD-TRC PRO Cat II 7.80 - 8.40 13 60 540

Available Models - Two Rotor Centre Swath Delivery

Model

Mounting category

Working Width (m)

Tine arms per rotor

Power demand (HP)

PTO (rpm)

MF RK 662 TRC Cat I and II 5.80 - 6.60 10 26 540
MF RK 762 TRC Cat I and II 6.80 - 7.60 12 41 540
MF RK 802 TRC PRO Cat I and II 7.20 - 8.00 12 48 540
MF RK 1002 TRC Cat II 8.80 - 10.00 15 70 540

Available Models - Four Rotor Rakes

Model

Mounting category

Working Width (m)

Tine arms per rotor

Power demand (HP)

PTO (rpm)

MF RK 1254 TRC Cat II 12.50 12 80 540
