Massey Ferguson 9300 Series Disc Headers
You need your disc header to cut crop cleanly and effectively, then condition it before depositing it in a consistent swath. Our 9300 Series Razorbar disc headers do just that, offering industry-leading performance to maximise the value of your hay.
BUILT FOR CONSISTENT FEEDING
Belt-driven augers at the ends of the 16-foot headers move the crop quickly to the conditioners, minimizing the chance of double cuts, crop-wrapping and buildup.
ADVANCED CONDITIONING SYSTEM
The TwinMax™ advanced condition system, offered with the 9316 D and 9313 D headers, provides the perfect option for producers looking for the fastest drydown possible. Two sets of steel-on-steel conditioner rolls crimp stems every 1-2 inches, reducing drying time while allowing leaves to stay healthy and whole, retaining nutrient value.
PROPER TENSION - ALL THE TIME
The 9300 Series rotary headers use hydraulic conditioner roll tensioning to maintain consistent pressure on the conditioners at all times. In the event of a header blockage where the header needs to be reversed, the tension is automatically released to allow the blockage out of the rolls; the pressure is then re-applied when the header is engaged forward.
The RazorBar™ Cutterbar is a modular ductile cast iron housing with spur gears transmitting the power from the dual header drive motors on each end. This gives it superior strength but allows for a thin cross section to allow for a close cut to the ground.
Technology & Innovation
DUAL DRIVE HYDRAULIC MOTORS
Provide increased-but-balanced power to the cutterbar and conditioner drives on both sides.
ROBUST BELT DRIVES
Self-adjusting spring-tensioned belt drives with easy access covers to allow maintenance.
QUICK ROLL GAP CHANGE
Shims easily allow 1/8 inch adjustments to be made without changing stop nut location on the 9316 S/D headers.
MINIMIZED SERVICE POINTS
High-quality bearings and greaseless composite bushings on the 9316 S/D headers.
CONSISTENT CROP FLOW
The 9316 S/D headers use stub augers in the crop flow path to provide smooth and easy feeding, improving windrow formation and increasing drydown.
Dependable hydraulic tensioned steel-on-steel herringbone conditioner rolls provide superb conditioning to crop stems while minimizing leaf bruising and loss.
Superior cage design enhances feeding from outer discs to conditioners.
Number of Discs
|9313 D||13 (4)||4||40-96 (1-2.4)||8||Hydraulic||WR197, WR265|
|9316 D||16 (4.9)||4||40-96 (1-2.4)||10||Hydraulic||WR197, WR265|

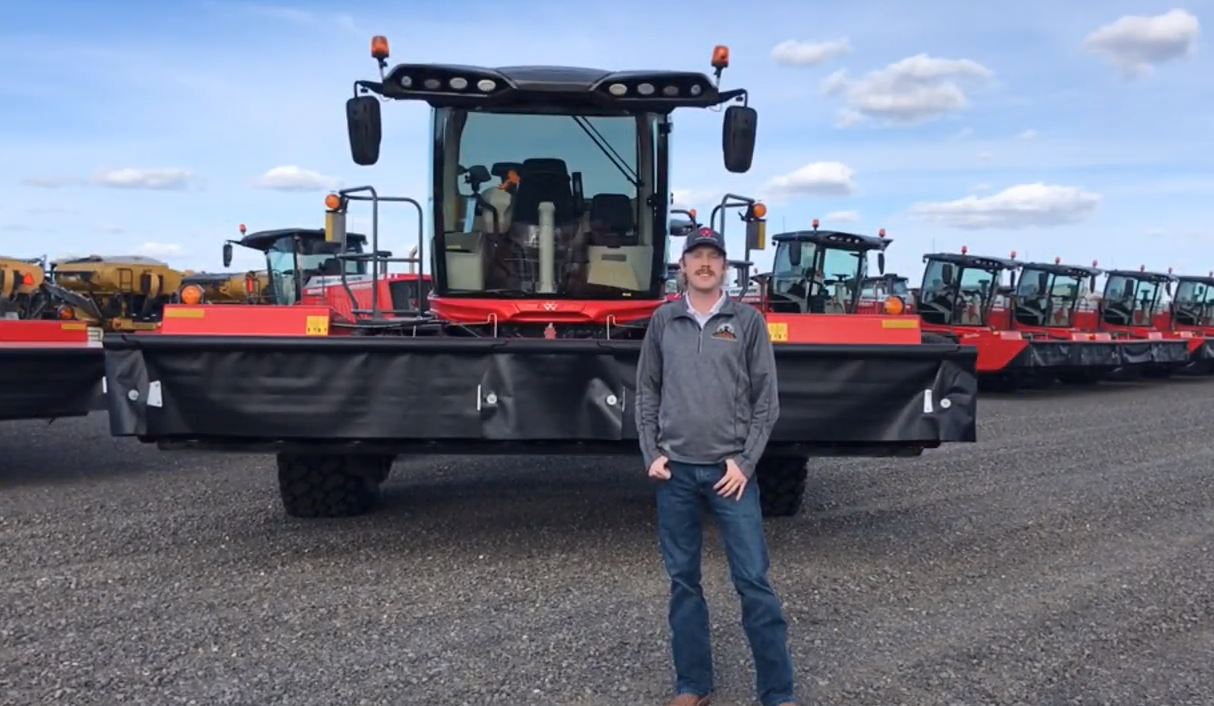

MF 9300 Series | Walkaround
