Ready to Work
The new straightforward and dependable Massey Ferguson® 7S Series provides ultimate efficiency and reduced operating costs. The MF 7S Series incorporates the technology you want, setting new standards in ease of operation and reliability.
MF 7S Series tractors meet the needs of farming professionals and are ideally suited for use in a range of applications.
Available with a wide choice of engine horsepower, transmissions, cab specifications, hydraulics and PTO options, you can tailor your MF 7S Series tractor to precisely match your requirements.
Key Benefits

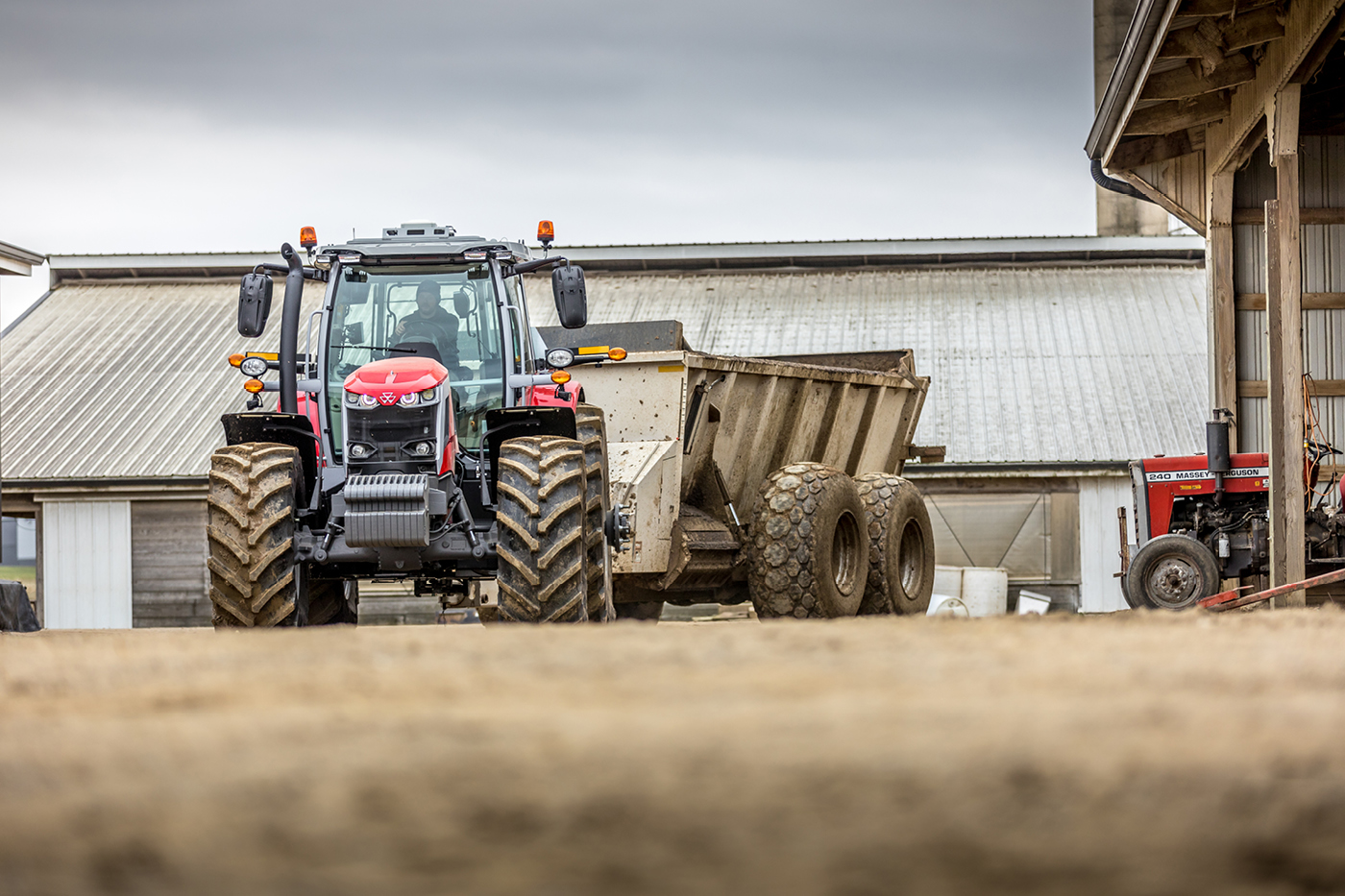

High Performance
Get the power you need with six-cylinder AGCO Power® engines paired with Dyna-6 or Dyna-VT® transmissions.

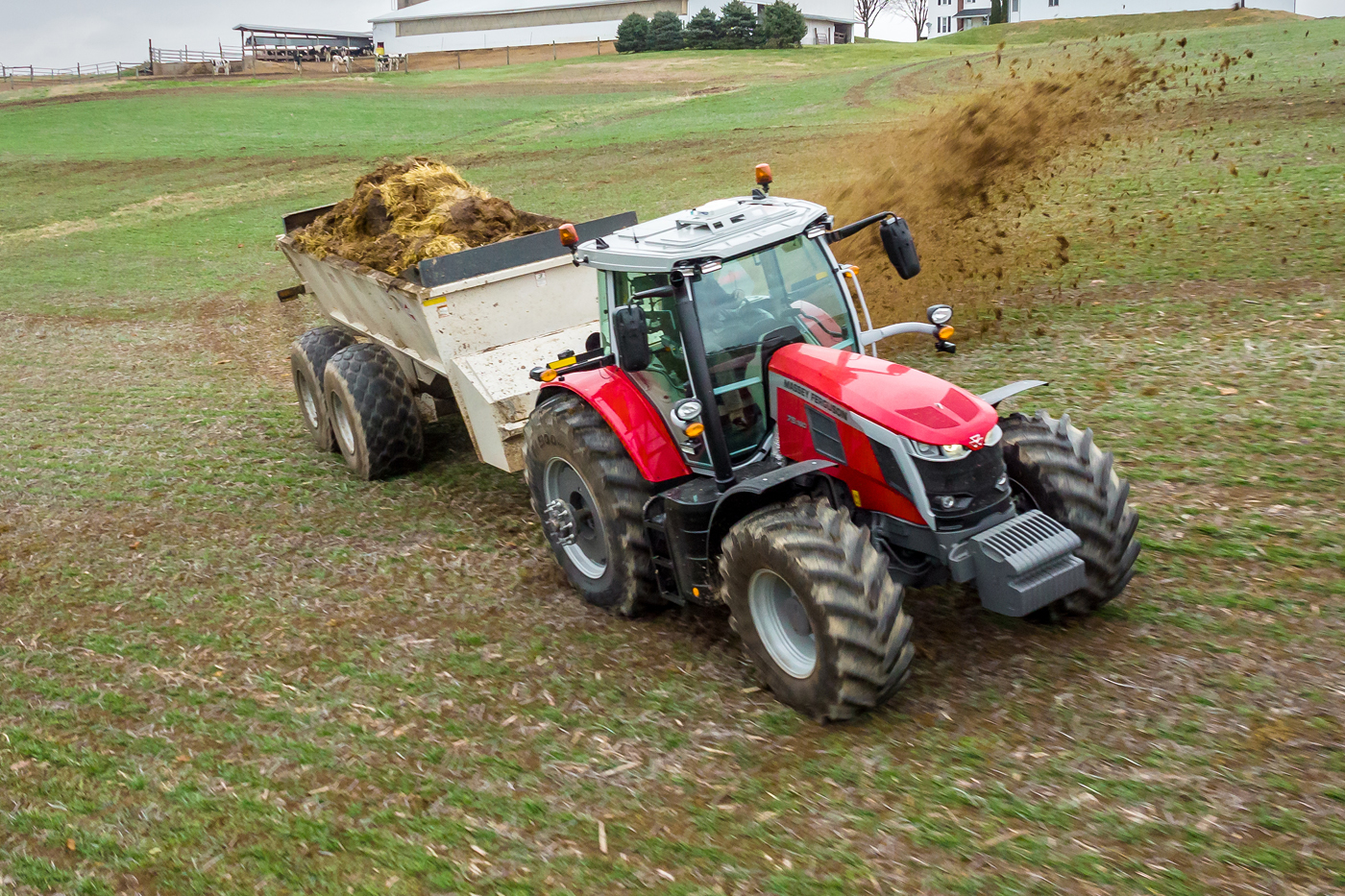

ABILITY TO WORK FASTER WITH THE MOST DEMANDING IMPLEMENTS
The hydraulic system in the MF 7S Series enables you to work faster, with a wider range of implements. With up to five spool valves to the rear, three to the front, including front linkage, plus a high lift capacity hitch, you’ll always get more done.

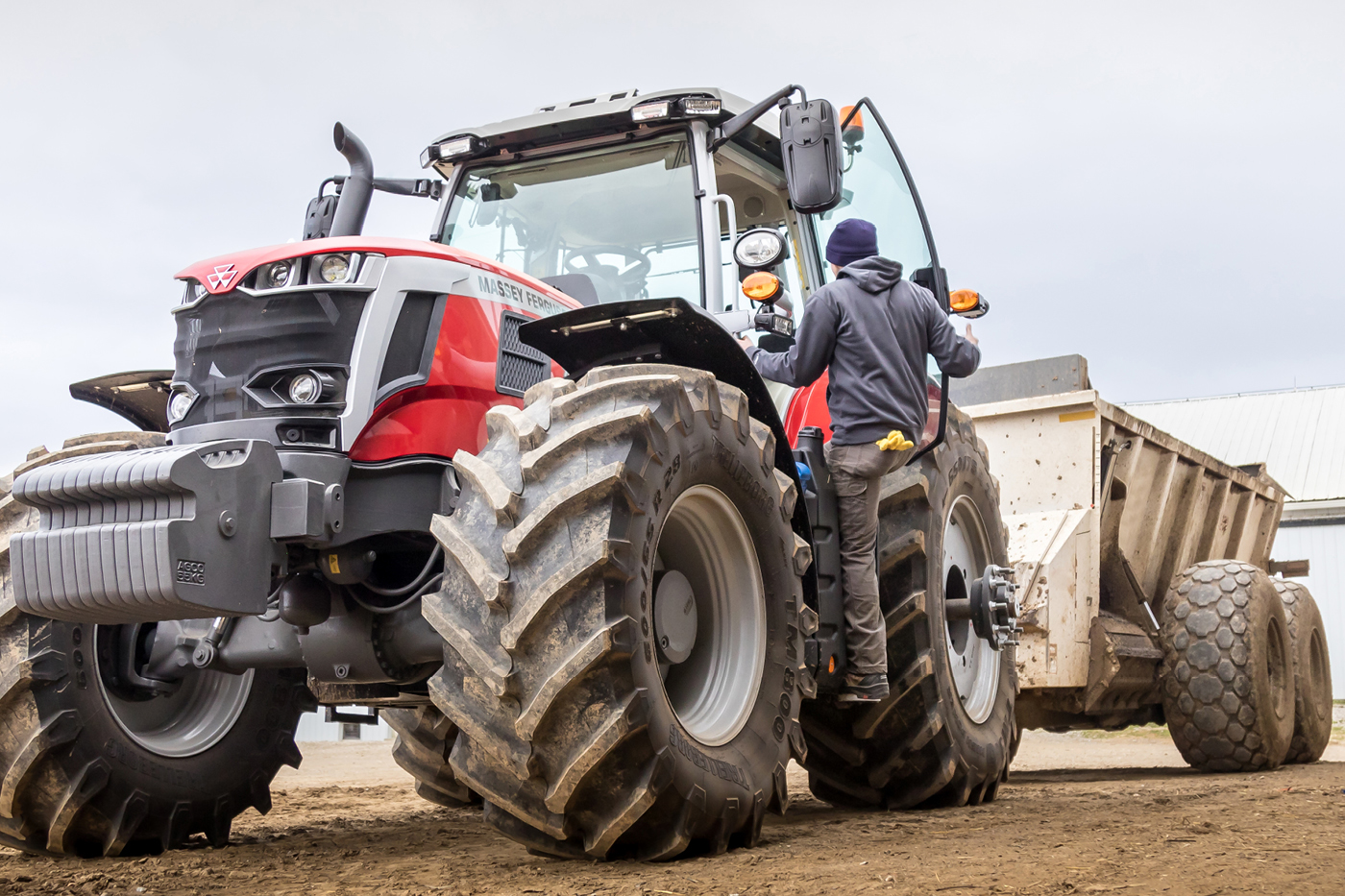

ULTIMATE COMFORT FOR A MORE PRODUCTIVE WORKDAY
Front-axle suspension plus cab suspension improves driving comfort, while the color dashboard display offers better visibility throughout the day. A new ergonomic armrest with the MultiPad lever and multifunction joystick eases control with effortless operation.
LOW OPERATING COSTS
The “All-in-One” Tier 2 Final-compliant aftertreatment system cuts ownership costs and improves visibility from the cab. Plus, 500-hour engine service intervals reduce costs and downtime. Lastly, there’s easy access for daily maintenance, making your life as an owner or operator easier.

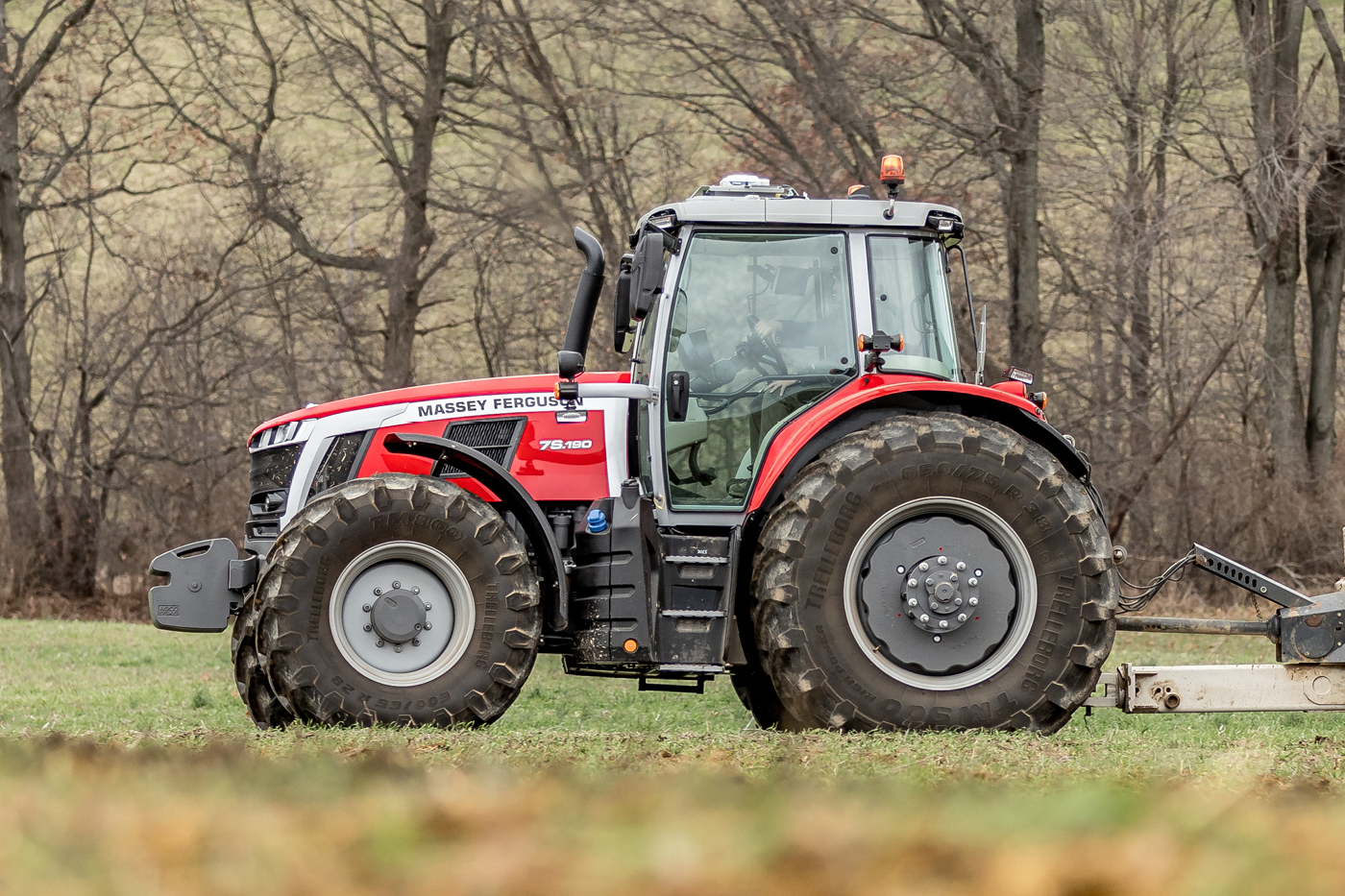

PERFECT WHEELBASE FOR PERFECT POWER
A wheelbase of 2.88 m offers improved stability with or without a heavy implement, delivering high traction in the field and increased comfort during transport.

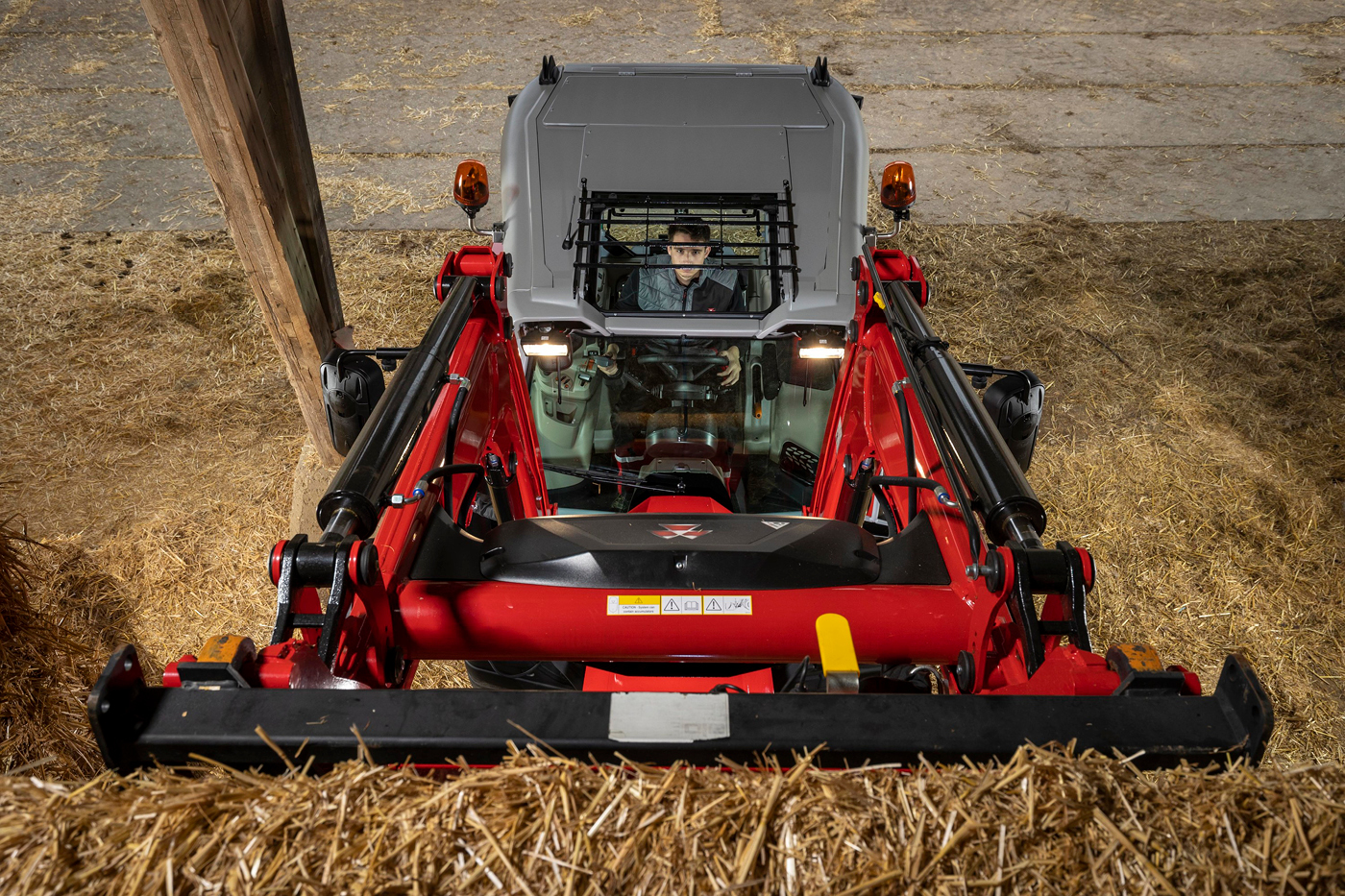

AN IDEAL TRACTOR-LOADER COMBINATION
The MF 7S Series brings superior visibility thanks to its slim hood and Visio Roof option. Combined with high-flow hydraulics (up to 190 litres/min) and a factory-fitted loader and subframe, you have a perfect pairing.

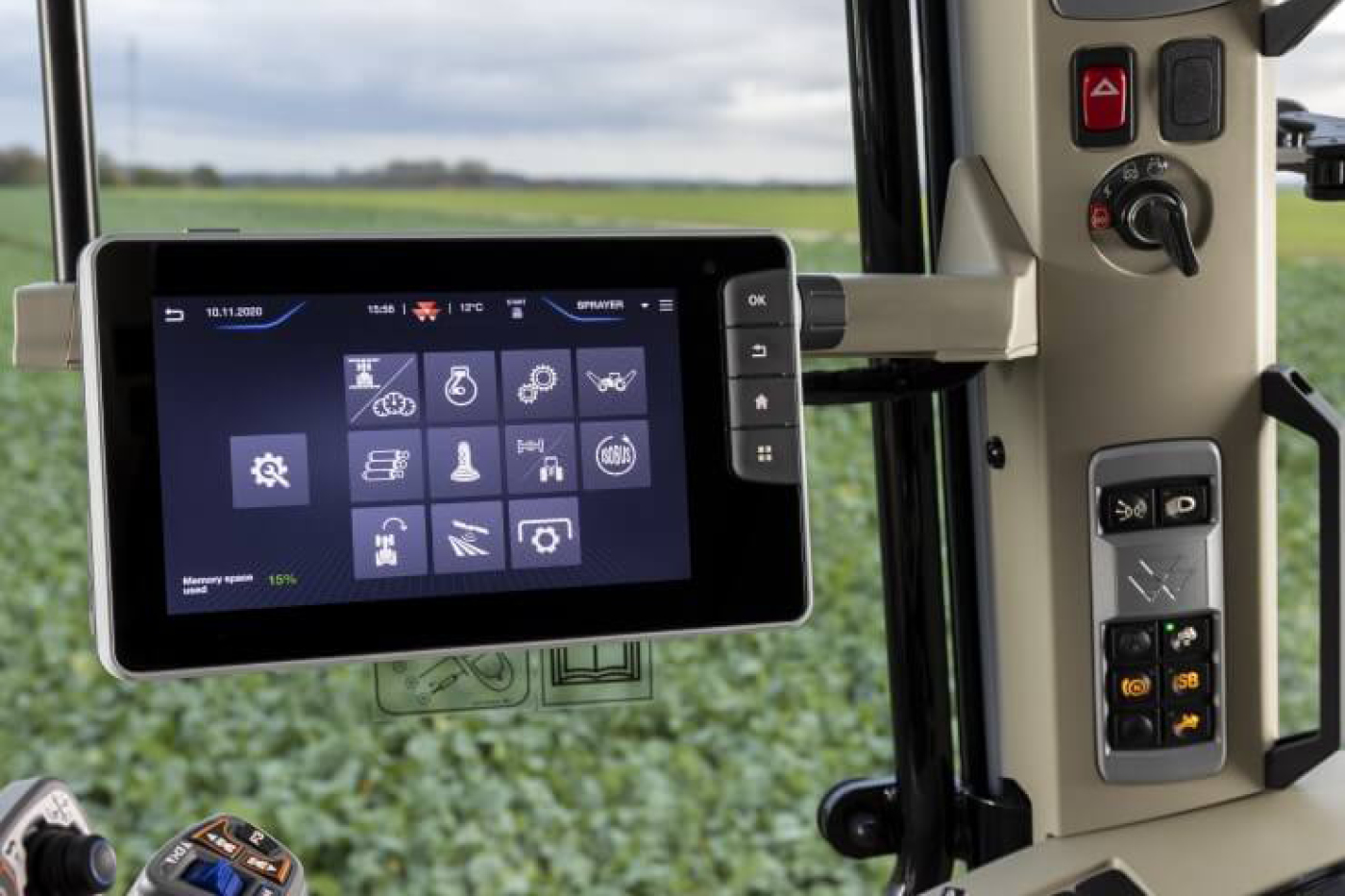

STRAIGHTFORWARD, SMART, SUSTAINABLE
A Datatronic 5, 9-inch touch screen terminal handles tractor functions with intuitive operation, delivering precise farming along with MF Technology. The MF Guide offers incredibly accurate economy by reducing overlaps with a choice of Novatel or Trimble receivers. MF Section control further reduces overlaps, while MF Rate Control automatically adjusts the application rate on the fly, saving precious inputs. MF Connect telemetry helps manage fleet performance through remote access to machine data in real time. MF TaskDoc® and MF TaskDoc Pro create and securely transfer detailed job records between the field and office. The optional Fieldstar 5 terminal provides the convenience of another touch screen display for an easy-to-use precision farming package.
Technology & Innovation
AGCO POWER ENGINE
Our proven 6.6-litre, six-cylinder AGCO Power engine drives the MF 7S Series.
Power Control
The Power Control lever provides convenient three-in-one, straightforward operation. Operators can shuttle between forward/reverse, shift Dynashift speeds and ranges and select neutral, leaving the right hand free.
DYNA-6
Delivering class-leading dynamic performance and reliability, the semi-powershift transmission consists of six Dynashift ratios, optimally stepped in four ranges and changed without recourse to the clutch pedal.
Dyna-VT
Stepless transmission brings complete operator comfort and optimum fuel efficiency at all times. New Automatic mode enables operators to adjust forward speed, while automatically regulating engine speed according to load and speed.
ENGINE POWER MANAGEMENT - 30 HP BOOST
These tractors have the considerable benefit of Engine Power Management (EPM), which gives the capability of up to a 30hp-plus power boost, plus extra torque, whenever that bit extra is needed.
AIRFLOW SYSTEM
A optimised airflow system improves engine cooling, which increases performance and boosts efficiency.
MULTIPAD - CONTROL AT THE PALM OF YOUR HAND
As standard on Efficient and Exclusive, the Multipad lever operates the transmission as well as controlling cruise control, the rear linkage, PTO, headland management, spool valves through the integrated mini-joystick.
Automatic mode
Taking automatic care of up and downshifting to maximise versatility and output. Response point is adjustable according to desired engine rpm parameters.
BRAKE TO NEUTRAL
Brake to Neutral switch (Option) simultaneously operates the clutch as soon as the brake pedal is pressed. This eases the load on the operator, while increasing efficiency and convenience and is particularly useful for loader operations.
SUPERCREEP
Close control in specialist low-speed tasks is assured with additional supercreep gears, enabling forward speeds as low as 100m/hr to be achieved.
Super ECO
Standard Super Eco feature helps cut costs, with maximum speed achieved at a very low engine speed to save fuel (40km/h @ 1,500rpm, 50km/h @ 1,800rpm, depending on tyres).
Quadlink2 Suspension System
All models benefit from the Quadlink2 suspension, boosting both comfort levels for the operator and overall machine manoeuvrability. The combination of two cylinders and three accumulators delivers an extremely comfortable ride for the operator.
Mechanical Cab Suspension
Mechanical cab suspension performs an excellent job of evening out irregularities in the terrain by means of a pair of shock absorbers.
Essential Version
'Essential' is the entry-level package for the MF 7S Series. It includes all the key elements you would expect, with a blend of simplicity, ease of use and versatility to suit applications that require additional power and performance.
Efficient Version
The 'Efficient' package enables you to work faster, to a higher standard, with more accuracy, together with high levels of comfort, ergonomics and reliability.
MF Guide
MF Guide is MF’s full featured, hands free steering system, available on new tractors or as an after-market installation. It is capable of delivering sub-metre, decimetre and centimetre accuracy, increasing the efficiency of your farming.
MF Task Doc
The MF Task Doc system has a real place in the future of agriculture, helping farmers to become more productive through the knowledge brought by putting precision-measured data at the business owner’s fingertips.
Dyna-VT Highlights:
- Stepless transmission eases the operator's job considerably, while boosting fuel efficiency in all conditions
- Simple, infinite speed control, from 0.03 speeds to 40 km/h or 50 km/h* available with 40 km/h super Eco or 50 km/h* Eco
- The choice of two speed ranges optimises torque for different applications
- Lever, pedal control means operator can choose his preferred mode
- 'Supervisor' maximises output under varying loads
- New Automatic mode enables operators to adjust forward speed, while automatically regulating engine speed according to load and speed
- Shuttle and Pedal aggressiveness adjustment with brake pedal to neutral feature
Operator Environment - Package Specifications
|
Essential
|
Efficient
|
|---|---|---|
Overview |
'Essential' is the entry-level package for the MF 7S Series, while being anything but basic. |
'Efficient' is the high-specification package for the MF 7S Series, designed to help you work smarter and get better results. Dedicated to delivering increased productivity, the Deluxe is the high-specification package for the MF 7S Series, designed to help you work smarter and get better results. The Deluxe package enables you to work faster, to a higher standard, with more accuracy, together with high levels of comfort, ergonomics and reliability. Stay in control of the most technologically advanced and demanding implements to take advantage of their increased productivity. |
Standard Features |
- Brake-to-neutral - Air-conditioning with manual adjustment - Telescopic, wide-angle wing mirrors - 2 USB ports - Control Centre with T-lever transmission operation - Dyna-6 Super Eco with standard Automatic Mode - Engine speed memory A - Dyna-6 Super Eco 40 km/h Eco transmission* - Closed Centre Load Sensing Hydraulics - 3 mechanical spool valves - MF Connect Telemetry-ready with 5-year subscription |
- Suspended front axle - Mechanical cab suspension - Air-conditioning with manual adjustment - Telescopic, wide-angle wing mirrors - Armrest with new Multipad - Radio/ CD / MP3 Front Aux-in / Bluetooth with microphone and controls in armrest - 2 USB ports -Automatic air-suspended seat - Dyna-6 with Automatic Mode or Dyna-VT 40 km/h Super Eco transmissions - Cruise Control and Brake-to-Neutral - Closed Centre 110 l/min hydraulics - Electrical and mechanical spool valves - Engine speed memo A or B - 2 electrical spool valves with electrical Micro-Joystick and 2 mechanical spool valves - MF Connect Telemetry-ready with 5-year subscription |
Optional Features |
- Mechanical cab suspension - Suspended front axle - Panoramic cab with polycarbonate right-hand side window - Radio/ CD / MP3 Front Aux-in / Bluetooth with microphone - Automatic air-suspended seat - Integrated Front Linkage System and PTO - 540 & 1000, 540 Eco & 1000 Eco rear PTO - Dyna-6 Eco 50km/h transmission* - Loader ready from factory with Multifunction mechanical joystick - 4 mechanical spool valves - Fieldstar 5 terminal - ISOBUS - MF Guide system with Advanced guidelines - MF Section & Rate Control - MF TaskDoc & MF TaskDoc Pro recording all job's data exchange - MF Next Management FMIS |
-- Mechanical active cab suspension - Automatic Air Conditioning - 16 LED working Lights - SpeedSteer - Heated, electric-adjust mirrors - Automatic air suspended swivel seat, with lateral suspension, with Dynamic Damping System - 50km/h* Dyna-6 Eco with supercreeper or Dyna-VT - Integrated Front Linkage System and 1,000 rpm front PTO - Loader-ready from factory with Multifunction electrical joystick - Closed Centre Load Sensing hydraulics with 150 or 190 l/min - Speedsteer - Datatronic 5 touchscreen terminal 9'' (With Tractor settings management & ISOBUS integrated, and in option, radio & phone interface, MF E-Loader, camera & MF Guide compatible) - Fieldstar 5 terminal - ISOBUS - MF Guide system with Advanced guidelines - MF Section & Rate Control - MF TaskDoc & MF TaskDoc Pro recording all job's data exchange - MF Next Management FMIS |
*Depending on market/legislation
Tractor-Loader
When you purchase a new Massey Ferguson 7S Series tractor, it comes loader-ready from the factory. Designed for maximum maneuverability and maintenance access, it is an integral part of the machine. The optional mechanical or E/H multifunction joystick has additional transmission functions such as forward/reverse and speed change for added versatility during operation.
The live third valve enables the operator to open/close a grab and tip or crowd an implement at the same time. You will enjoy superb visibility thanks to the new slimmed down hood and exhaust pipe. The optional Visioline roof improves vision of loads at height, particularly useful when stacking bales. The “clutch effect” puts the transmission into neutral when the brake pedals are depressed, allowing single-foot brake and clutch operation, making loader operation easier and more comfortable.
Tractor-Loader Highlights:
- Multifunction joystick option also changes direction and speed, providing total control
- Proportional control of a third spool valve enables operators to open/close a grab and tip or crowd an implement at the same time
- Highest visibility thanks to the smart profiled design of the hood and dashboard
- Unrestricted maneuverability and access for maintenance
- Excellent maneuverability including tight turning angles, SpeedSteer
- New quick coupling system reduces pressure losses at high flows, quicker loader movement and saves fuel
- Hydraulic implement locking can be activated via the SIS
- New, standard Engine Speed Automation on the SIS menu allows operators to increase the engine speed according to the action on the joystick
- To further improve loading performance, there is a range of output and comfort-enhancing features including high flow hydraulics and the Brake-to-Neutral function, which also disengages drive when the brakes are applied
Available Models
Model |
Max Power1 (HP) |
Max Power-EPM2 (HP) |
Engine |
Transmission |
Max Torque (NM)* |
Lift Capacity (KGs) |
|---|---|---|---|---|---|---|
| MF 7S.145 | 145 | 165 | AGCO Power 6.6 L, 6 Cylinder | Dyna-VT, Dyna-6 | 660 | 9,600 |
| MF 7S.155 | 155 | 175 | AGCO Power 6.6 L, 6 Cylinder | Dyna-VT, Dyna-6 | 700 | 9,600 |
| MF 7S.165 | 165 | 185 | AGCO Power 6.6 L, 6 Cylinder | Dyna-VT, Dyna-6 | 725 | 9,600 |
| MF 7S.180 | 180 | 210 | AGCO Power 6.6 L, 6 Cylinder | Dyna-VT, Dyna-6 | 750 | 9,600 |
| MF 7S.190 | 190 | 220 | AGCO Power 6.6 L, 6 Cylinder | Dyna-VT | 850 | 9,600 |
| MF 7S.210 | 210 | 220 | AGCO Power 6.6 L, 6 Cylinder | Dyna-VT | 860 | 9,600 |
| * @ 1500 RPM | ||||||
