Setting New Standards. Extending Expectations.
With this new and straightforward range of tractors, Massey Ferguson has taken the concept of the sub-100hp tractor and re-engineered it from the ground up to meet the needs of present and future farming.
In this power bracket, no other range on the market today offers such an array of build specifications, options and accessories, all designed to help tailor your machine exactly the way you need it for your farming operation.
New AGCO power engine
4 cylinder 4.4 liter engine generate power from 92 to 102 hp (69 - 76 kW). This turbo charged engine has a proven track record for performance and reliability.
Transmission (12x12 mechanical Shuttle)
Modern and cost effective transmission, low power absorption giving great efficiency and excellent fuel savings.
Power Shuttle Gearbox
The Power Shuttle gearbox shares the same layout as the 12 x 12 mechanical gearbox. The input section differs to allow the incorporation of the Power Shuttle dual wet clutch unit located at the front of the gearbox. The wet clutch contains a clutch pack for forward and a separate clutch pack for reverse and is controlled by an Electronic Control Unit (E.C.U) modulating the speed of engagement of the clutch packs to ensure smooth changes between forward and reverse. The Power Control Lever located to the left of the steering column, gives the operator smooth clutch less direction changes.
Unrivalled 360° visibility
The all-new 6 post frame offers 2.73m³ space and 5.86m² glass area giving a spacious environment, 360° visibility for optimum comfort and safety at work.
Rear Linkage with ELC
Heavy duty rear linkage with ELC (Electronic Linkage Control) ensures safe and reliable operation of the heaviest implements.
Technology & Innovation
Smooth or quick shuttling – you choose by simply adjusting the Comfort Control to suit the job – slow and smooth or fast and efficient.
Creeper Speeds Option
A Super Creeper option is also available when the slowest speeds, down to 140m/hr, are required for the job in hand.
Every component of the chassis has been designed from a blank sheet of paper to boast immense strength, a major factor in an agricultural tractor’s overall performance. This modern design provides versatility, power, durability and outstanding capability.
All-New Synchromesh Transmission
An all-new 12 forward x 12 reverse synchromesh transmission with the option of either mechanical or full power shuttle and 30km/hr maximum transport speed. Featuring slick gear changes and eight gears in the typical field working range from 4-12km/hr.
Power Control Lever
The Power Control lever provides convenient three-in-one, straightforward operation. Operators can shift between forward/reverse ranges as well as select neutral, leaving the right hand free.
Neatly Positioned Gear Levers
The right speed for each job is easily selected using gear levers that are within easy reach, yet positioned neatly to hand of the driver, ensuring an unimpeded passage when mounting / dismounting.
Grab rails mounted outside the operator station provide easy access to the footsteps, mounted directly to the machine.
4WD Front Axle
Specified with a limited slip differential, the front axle boosts traction and stability with maximum simplicity and minimal maintenance.
55 Degree Steering Angle
Manoeuvrability is maximised by the front axles 55° steering angle.
Combined Flow System
For those requiring extra flow – to boost loader performance – the MF 5700 series can be specified with a 98 litre/min combined flow system.
Open-Centre Hydraulic System
A simple open-centre hydraulic system, powered by two gear pumps, the 32 litres/min pump provides all the internal services, whist the 58 litres/min pump allows the electronically-controlled rear linkage to lift 4,300kg.

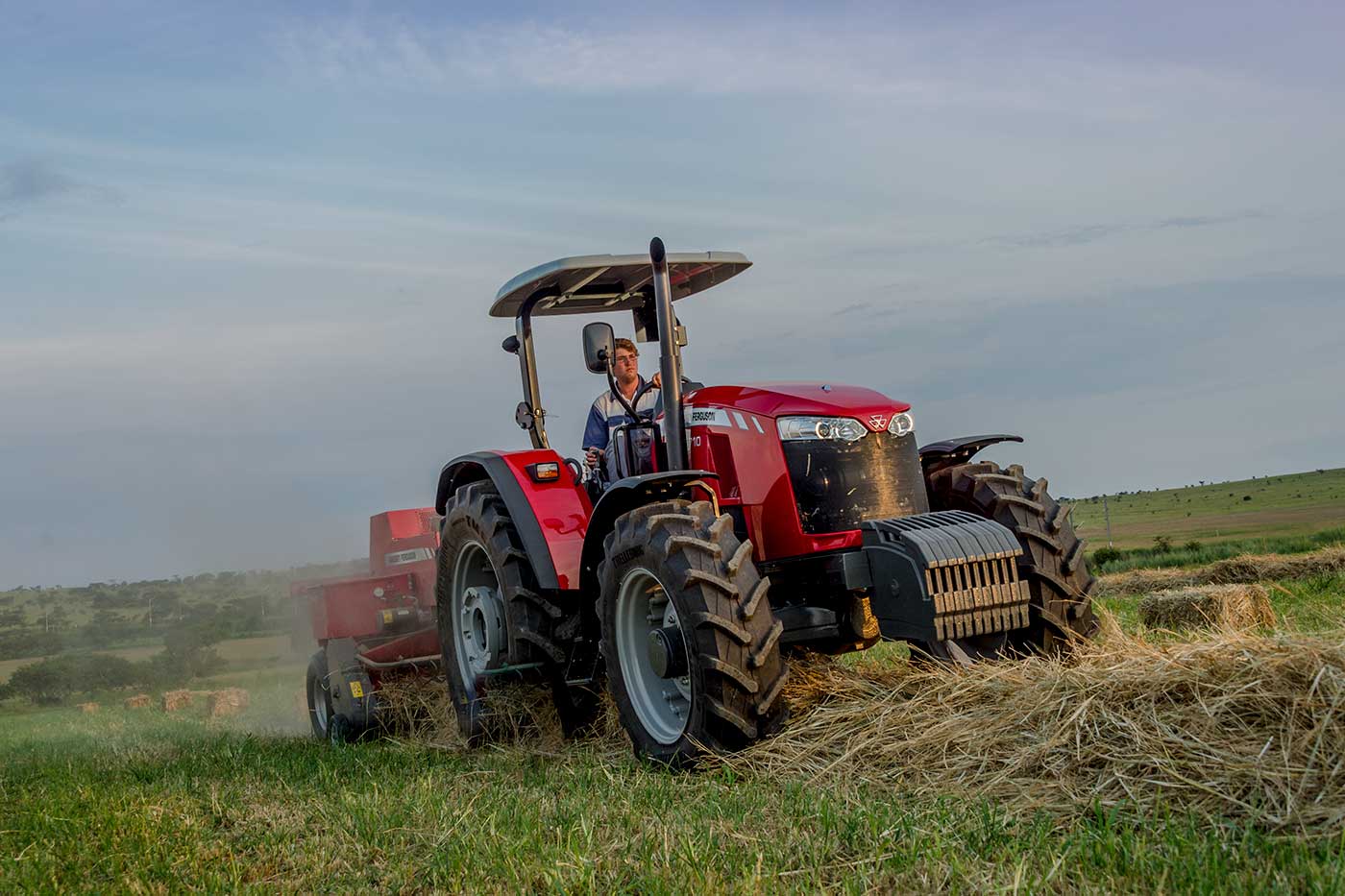

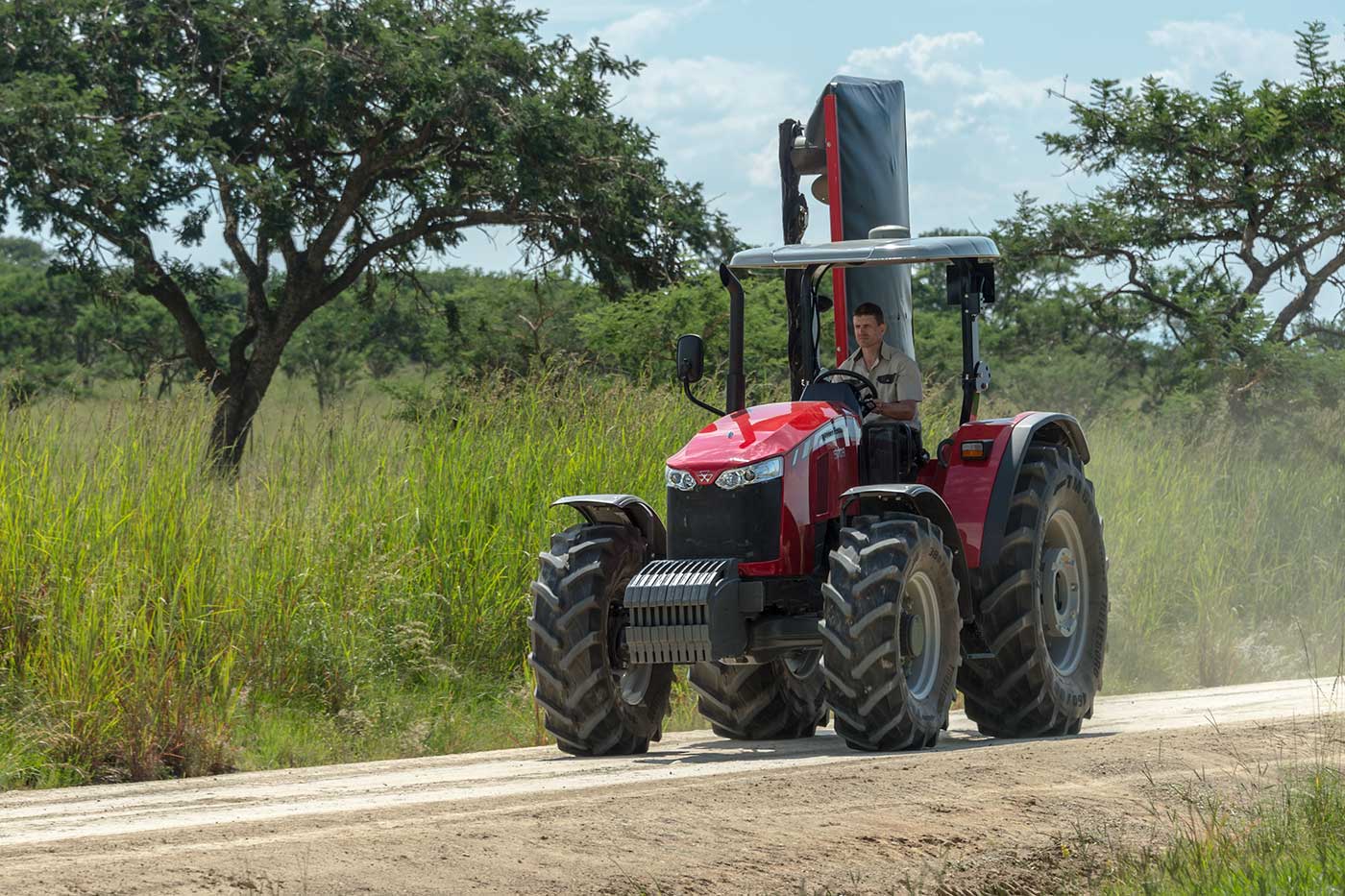

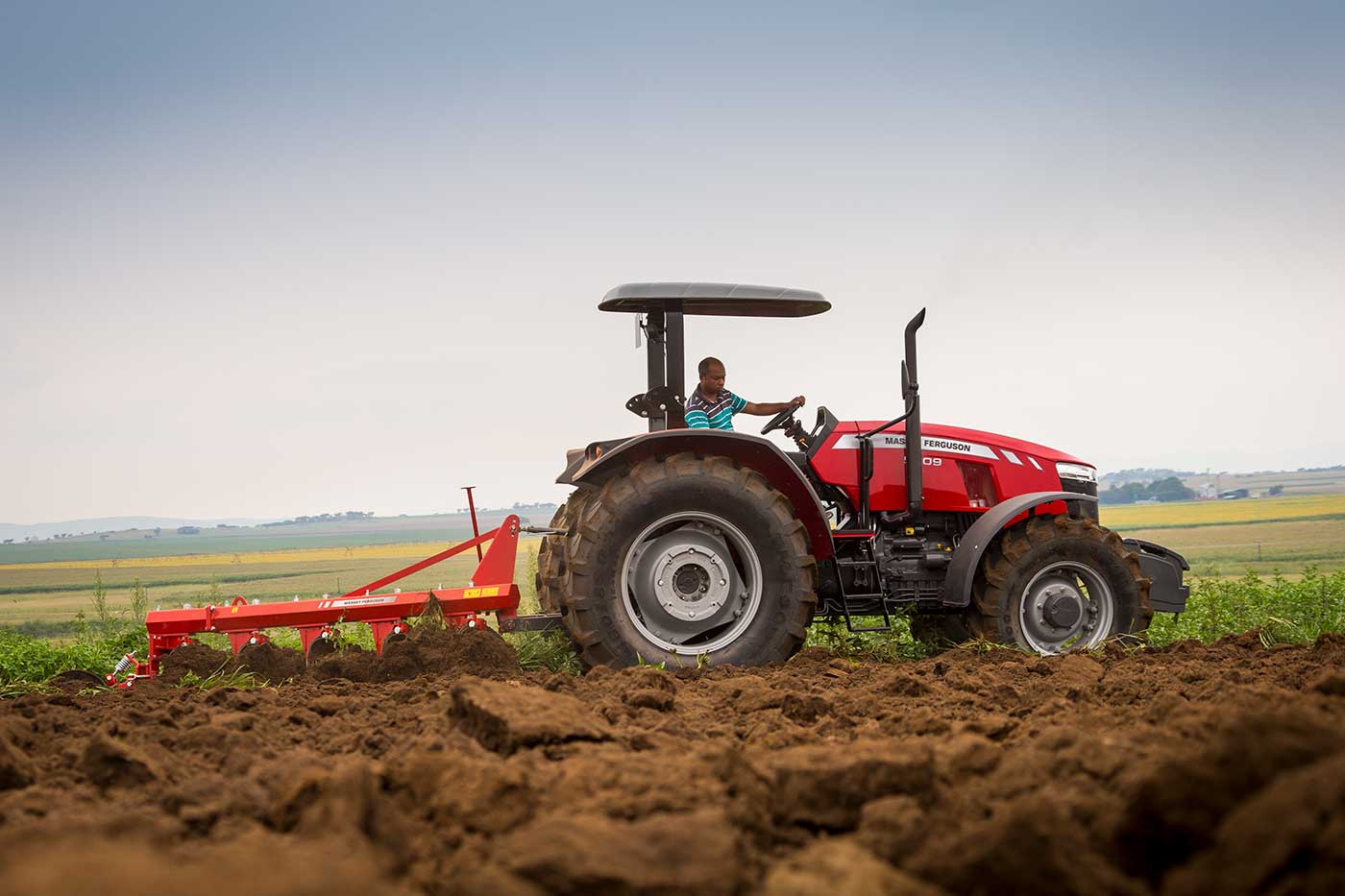

Two spool valves are fitted as standard on the platform model and an option of up to three spool valves on the cab models. Modern complex equipment can be operated with ease.
Control is via a modern independent PTO (IPTO) clutch, which is electro-hydraulically engaged and ‘eases’ the engagement, to protect the driveline by gradually taking up the drive.
Electronic Linkage Control - ELC
The industry leading ELC is provided as standard. The system provides precise and responsive control of linkage functions ensuring accurate management of working depth for soil engaging implements.
Max Power hp (kW)*
Max Torque (Nm)***
Lift Capacity (kg)
|MF 5709||92 (69)||AGCO Power 4.4L, 4 cylinders||12 x 12 Synchronised Mechanical Shuttle||380||4,300|
|MF 5710||102 (76)||AGCO Power 4.4L, 4 cylinders||12 x 12 Synchronised Mechanical Shuttle||410||4,300|
|* @ 2,200 rpm | ** 12F x 12R Synchronized Power Shuttle transmission is available in all models. | *** @1,300 rpm | all models are available in 2WD & 4WD | ALL MODELS ARE AVAILABLE IN CAB & PLATFORM|
