Move into a new era of possibilities
Simply the best-in-class tractor between 115 HP and 145 HP, the Massey Ferguson 5S Series offers a choice of three models with an upgraded design incorporating the iconic sabre styling.
Agile and nimble, it offers best-in-class visibility combined with excellent maneuverability from its tight, 13-foot turning radius. Delivering great performance, the MF 5S Series combines economy with high levels of comfort and control along with a wide choice of equipment and options to suit all applications.
Built to tackle all the challenges and tasks on your farm efficiently and economically, the MF 5S Series is indisputably the first choice for dairy, hay and livestock operations.
Developed to tackle all challenges and tasks on the farm efficiently and economically, the MF 5S Series is indisputably the first choice for livestock, dairy as well as hay operations.
Low operating costs
AGCO Power 4-cylinder 4.4 liter engine is compliant with Tier 4 Final emissions using the compact All-in-One (DOC+SCR+SC) after-treatment system. All models deliver more power with reduced fuel and DEF consumption. An electronic wastegate turbocharger further improves performance and reduces emissions. Also cutting costs and fuel consumption are the Super Eco transmission for roadwork, Eco PTO speed and automatic low idle engine speed.
Efficient drivelines deliver higher productivity
Proven transmission technology: Dyna-4 (16x16) with Speedmatching or Dyna-6 (24x24) with AutoDrive for automatic shifting. Super Eco operation attains 25 mph at a low 1,530rpm helping to significantly cut fuel consumption and increase driving comfort. Perfect engine and transmission partnership for maximum outputs.
Equipped to work faster with the widest implements
A wide choice of hydraulic systems deliver flowrates from 15 GPM to 29 GPM from open center or closed center load sensing systems.
The perfect loader partner
Best-in-class visibility, down to just 13 feet ahead of the tractor, over the slim dashboard and narrow steep-nose hood, combines with great maneuverability and a choice of three hydraulic systems to provide exceptional pressure, flow and response. Left-hand Power Control lever changes direction, shifts speeds and selects neutral, while a choice of joysticks operate the loader, as well as change direction and speeds. MF 5S tractors are available with factory-fitted loader or to be ordered loader ready, just requiring the mounting of the loader arms and implement.
Ultimate comfort for a more productive working day
Wide choice of options between the Classic and Deluxe models - all equipped with a comfortable quiet, cool cab with simple and efficient suspension. Easy to access cab offers the best visibility on the market from its large glass area and steep hood with unrivalled visibility, down to just 13 feet ahead of the tractor. New front axle suspension further improves comfort. New, intuitive Datatronic 5 console (standard on Deluxe models) delivers the information you need to manage and control all tractor’s functions. New armrest and perfect ergonomics mean all controls fall easily to hand for effortless operation.
Straightforward Fuse Technology for more accuracy
• MF Guide offers sub-metre and centimetre accuracy improving economy by reducing overlaps with a choice of Novatel or Trimble receivers and correctional signals. • MF Section Control minimises overlaps by 12% controlling sections, while MF Rate Control adjusts the application rate on the move, saving precious inputs. • MF Connect telemetry helps you manage fleet performance by remotely accessing machine data in real time to monitor and analyse operating information from your MF 5S. • MF TaskDoc™ and MF TaskDoc™ Pro create and securely transfer detailed job records between the field and office. • Datatronic 5, 9in touch-screen terminal for tractor functions, ISOBUS, MF Guide, MF Section Control and MF Rate Control, with intuitive operation to deliver more precise farming. • Optional Fieldstar 5 terminal provides the convenience of another touch-screen display creating an easy to use precision farming package.
Low repair and maintenance cost
Long, 600hr, engine maintenance interval cuts the cost of ownership.
Straightforward and Dependable
AGCO Power Engine
All MF 5S Series tractors are powered by a AGCO Power four cylinder, 4.4 litre, Stage V engine, which delivers maximum powers from 105hp to 145hp and up to 550Nm of torque on the largest model.
All-in-One SCR Technology
These compact engines use the advanced and highly efficient All-In-One SCR Technology.
Further improving performance and emissions control is the electronic wastegate on the turbocharger, while the automatic low idle engine speed also cuts fuel consumption.
After-treatment components are located on the right side, below the cab, so there is no impact on visibility or cab access. This position maintains good ground clearance and service access and allows fuel tank capacity to be increased to 53 gallons.
A new optimised airflow system improves engine cooling, which increases performance and boosts efficiency.
EFFICIENT DRIVELINES BRING HIGHER PRODUCTIVITY
The proven Dyna-4 transmission provides 16 speeds with optional Auto-Drive™ for automatic shifting, helping to achieve the desired ground speed for any application.
The Power Control lever provides convenient three-in-one, straightforward operation. Operators can shuttle between forward/reverse, shift Dynashift speeds and ranges and select neutral, leaving the right hand free.
Renowned for its outstanding, robust reliability with smooth and effortless operation, Dyna-4 is easy to operate using the left-hand Power Control Lever or the T-lever on the right-hand console on Essential models.
Multipad - Control at the Palm of your Hand
As standard on Deluxe Models, the Multipad lever operates the transmission as well as controlling cruise control, the rear linkage, PTO, headland management, spool valves through the integrated mini-joystick.
Speedmatching as Standard
Speedmatching automatically selects the correct Dyna-4 speed to match the forward speed when changing gears.
Brake to Neutral
Brake to Neutral switch (Option) simultaneously operates the clutch as soon as the brake pedal is pressed. This eases the load on the operator, while increasing efficiency and convenience and is particularly useful for loader operations.
Close control in unique low-speed tasks is assured with additional supercreep gears, enabling forward speeds as low as .1 mph to be achieved.
Smooth or quick shuttling – you choose by simply adjusting the Comfort Control that suits the job – slow and smooth or fast and efficient.
Delivering class-leading dynamic performance and reliability, the semi-powershift transmission consists of six Dynashift ratios, optimally stepped in four ranges and changed without engaging the clutch pedal.
Autodrive taking automatic care of up and downshifting to maximise versatility and output. Response point is adjustable according to desired engine rpm parameters.
AutoDrive also cuts costs, with standard SuperEco ensuring top speed is achieved at a very low engine rpm, cutting fuel consumption – achieving 25mph/hr at 1,550rpm.
High Capacity Rear Linkage
Specifically optimised for the MF 5S Series, the rear linkage now boasts an impressive lift capacity of up to 6,000kg (+14% vs previous range), in some specific circumstances, enabling it to lift and handle heavy mounted equipment with ease.
Fully adjustable lift rods and heavy-duty stabilizers provide plenty of adjustment for the perfect attachment and setting for a wide range of mounted and semi-mounted implements.
Auxiliary Spool Valves
A wide choice of spool valves and control options help you make the most of using modern implements as well as ease operation. Depending on your tractor’s specification, you’ll find up to four spool valves to meet all your requirements.
Classic Models - Spool Valves
There’s straightforward mechanical control of the spool valves on Classic Models, with the addition of a comfortable dedicated joystick option for precise loader control.
Deluxe Models - Spool Valves
Deluxe Model operators benefit from an armrest-mounted electronic joystick for the control of the four spool valves.
Heavy-duty Integrated Front Linkage System
With its 3,000kg lift capacity (+17% vs previous range), at the ball ends, the new stronger, compact Integrated Front Linkage System enables you to take full advantage of the power of the MF 5S Series.
Close-Coupled Front Linkage
Redesigned to match the new optional front suspension, the close-coupled front linkage is an integral part of the design, maintaining the tractor’s compact dimensions, while enhancing stability and manoeuvrability.
Industry-leading Electronic Linkage Control (ELC)
The latest Electronic Linkage Control (ELC) system provides precise and responsive operation of the linkage functions, ensuring accurate control of the working depth for soil-engaging implements and working height for mounted implements.
Accurate electronic control provides convenient linkage operation. The ELC potentiometer is positioned to the right of the operator for comfortable and easy use, providing precise control of implement depth as well as lifting and lowering the linkage.
Electronic Lift Control Panel
The Electronic Lift Control panel provides straightforward adjustment of other rear linkage functions helping to improve productivity.
ELC Standard Features
Useful standard features include Active Transport Control, which automatically absorbs shocks on the road, as well as external lift/lower controls, located on the right and left-hand fenders.
Standard Open-Center 15 Gal/Min Pump
The system provides plenty of flow and pressure to the linkage and external hydraulic functions for lifting heavy equipment or powering auxiliary accessories.
Optional Open-Centre Combined Flow 100 litre/min
This system employs a simple, novel design to generate continuous flow. This provides full flow to separate functions, such as the linkage and spool valves, as well as provide higher efficiency and power for loader applications.
Closed-Centre, high-flow 29 gal/min Pump
This employs a variable displacement swash plate pump and load-sensing control to deliver high flowrates at low engine speeds, helping to maintain high output with economy.
High efficiency PTO
A straightforward driveline to the Independent PTO delivers maximum power and efficiency. There is a choice of three speeds, selected easily using rocker switches, conveniently located on the console.
The PTO is engaged electro-hydraulically, using a three-position safety switch (On, Off, and Lock/Brake). The PTO can also be engaged and disengaged using external fender-mounted switches.
A smart transmission controller automates frequently-used functions, including differential lock, PTO and Speedmatching transmission.
Hydralock delivers true four-wheel drive with fast and fully simultaneous engagement of the front and rear differential locks.
Center-mounted (enclosed) driveshaft offers excellent ground clearance.
Front Axle Suspension
A new, stronger suspended front axle offers an industry-leading 13ft turning radius. Working with the new 3 ton capacity front linkage helps improve efficiency and enables the tractor to use larger front mounted implements.
Extra comfort is offered by the electronically-controlled hydraulic suspension, which uses two longer stroke cylinders (100 mm) and three accumulators to absorb shocks.
The optional Speed Steer feature allows sharp turns to be achieved with far fewer rotations of the steering wheel, so you can make headland or turnrow turns quicker and easier.
Tight Turning Circle
Specially designed cutaways in the chassis and hood help deliver a turning radius of 4m - one of the best on the market, making it easier to access confined areas and buildings - helping you work more easily.
Fade Free Braking
Safe and efficient braking from large disc brakes cooled by constant pressure lubrication. This system is now completed with both pneumatic or hydraulic trailer brakes.
Large doors and wide, well-spaced steps offer easy access to the MF 5S cab. Here you will find all operating information is where you need it on the comprehensive new dashboard.
The armrest houses all the key elements, offering a blend of simplicity and ease of use, with all main functions ergonomically grouped. Here you will also find quick and convenient controls for other items such as Bluetooth phone and radio.
Benefit from top class comfort
The MF 5S helps you to boost productivity, save time and improve performance thanks to its 360° visibility, easy access and cab suspension.
Features include automatic beacon activation on the road and a ‘return home’ function, which automatically switches off the worklights and has a comfort cab light delay so you can safely leave.
There’s also extra sockets for mobile phones or laptop, radio and MP3 player (USB, Aux and CD), Bluetooth connection, digital radio, telescopic side mirrors and electric de-icing, plus automatic air conditioning.
Optional 12 LED Lights
The addition of the option of up to 12 LED working lights provides outstandingly bright illumination.
For top class comfort, you’ll find a choice of seats to suit the work you do. Mechanical suspension is ideal for road applications, while a choice of automatic, air suspended seats give extra comfort for long working days.
Dashboard with SIS – Setup and Information Screen
The clear, sharp and easy to read 70mm x 52mm color screen shows a range of information including tractor performance, working area, working distance, fuel and DEF consumption as well as engine and transmission temperature.
Select the roof to fit your needs
With the choice of choosing the visio roof, you now the option of adding even more visibility when operating a loader
Better by design
With the introduction of the MF 5S, Massey Ferguson continues its striking new era design first seen on the advanced, new MF 8S Series, following the same striking ‘neo-retro’ livery with modern headlights and LED signature.
This design pays tribute to the brand’s heritage, incorporating an interpretation of the iconic MF grey saber stripe on the side and horse head collar motif on the hood, which dates back to the MF 100 series.
Classic is the base specification for the MF 5S Series, but it is anything but basic. It provides all the key elements you would expect from MF, with a blend of simplicity, ease of use and versatility to fit the needs that require power and performance.
Deluxe tractors, equipped with many advanced features, are designed for more intensive, larger-scale operations seeking cost-effective benefits for the business.
Datatronic 5 - Standard on Deluxe Models
The Datatronic 5 system literally puts all the functions of the MF 5S tractor at the operator’s fingertips via its smart 9in touch-screen.
The new Fieldstar 5 terminal is designed in order to create a more intuitive Precision Farming experience, providing a system that delivers a straightforward an easy to use experience, improving efficiency, productivity and profitability.
MF Guide is Massey Ferguson’s full-featured, hands-free steering system, available on new tractors or as an after-market installation. It is capable of delivering precise, high-accuracy movement, increasing the efficiency of your farming.
MF Section Control
With the fully automatic Section Control for ISOBUS implements, operators can apply seeds, fertilizer or crop protection products without overlapping. This prevents double treatment and areas worked outside of the field edges.
The MF TaskDoc system has a real place in the future of agriculture, helping farmers to become more productive through the knowledge brought by putting precision-measured data at the business owner’s fingertips.
MF Connect service enables you — and your dealer — to coordinate, optimize and seamlessly connect your fleet, to better manage maintenance and remotely monitor equipment in the field.
Operator Environment - Package Specifications
the different packages
Classic is the base specification for the MF 5S Series, but it is anything but basic. It provides all the key elements you would expect from Massey Ferguson, with a blend of simplicity, ease of use and versatility to fit the needs that require power and performance.
Deluxe tractors, equipped with many advanced features, are designed for more intensive, larger-scale operations seeking cost-effective benefits for the business.
The Deluxe armrest provides a range of useful features, offering extra comfort and convenience for the operator when operating a range of frequently-used controls.
The ISOBUS compatible Datatronic 5 terminal is standard. With its new design and easy to use intuitive icons, the 9in touch-screen monitor displays key machine operating information and records as well as providing memory functions. Datatronic 5 can operate any ISOBUS compatible implement and also oversees the automation of headland management, trailed implement control (TIC) and Dual Control. The display can be connected to a camera for improved visibility of rear mounted implements and trailers.
|- Control Center with T-handle transmission lever.
- Dyna-4 with Speedmatching.
- Brake to Neutral disengages transmission into neutral when you brake.
- Mechanical control of spool valves.
- Air Conditioning.
- Telescopic large side mirrors, with wide angle.
- Radio aerial and speakers.
- Air Suspended Swivel Seat with armrest.
|- Mechanical cab suspension.
- Multi-function armrest with Multipad lever.
- Dyna-6 transmission with AutoDrive.
- Auto Air Conditioning.
- Superluxe air suspended seat.
- Four electrically operated spool valves.
- Large, telescopic side mirrors, with wide angle, electric de-icing & adjustment.
- Radio/ CD / MP3 Front Aux-in / Bluetooth with micro and controls in armrest.
- Two USB ports.
- New Datatronic 5 terminal to manage all tractor functions.
|- Integrated Front Linkage System.
- Mechanical multi-function loader joystick.
- MF Connect Telemetry system ready.
- ISOBUS compatible Fieldstar 5 terminal for full precision farming package including video, MF Guide guidance system, MF Section Control, MF Rate Control and MF TaskDoc™.
|- Integrated Front Linkage System (IFLS).
- MF Connect Telemetry system ready.
- ISOBUS compatible Fieldstar 5 terminal for full precision farming package including MF Guide guidance system, MF Section Control, MF Rate Control for variable rate applications and MF TaskDoc™ as well as video.
- Superluxe Air Suspended Seat.
The MF 5S Series tractors are specifically designed to deliver optimum handling ability when working with MF FL Series loaders. Together they are the best-in-class combination, with the fully integrated loader now available factory-fitted to deliver ultimate performance.

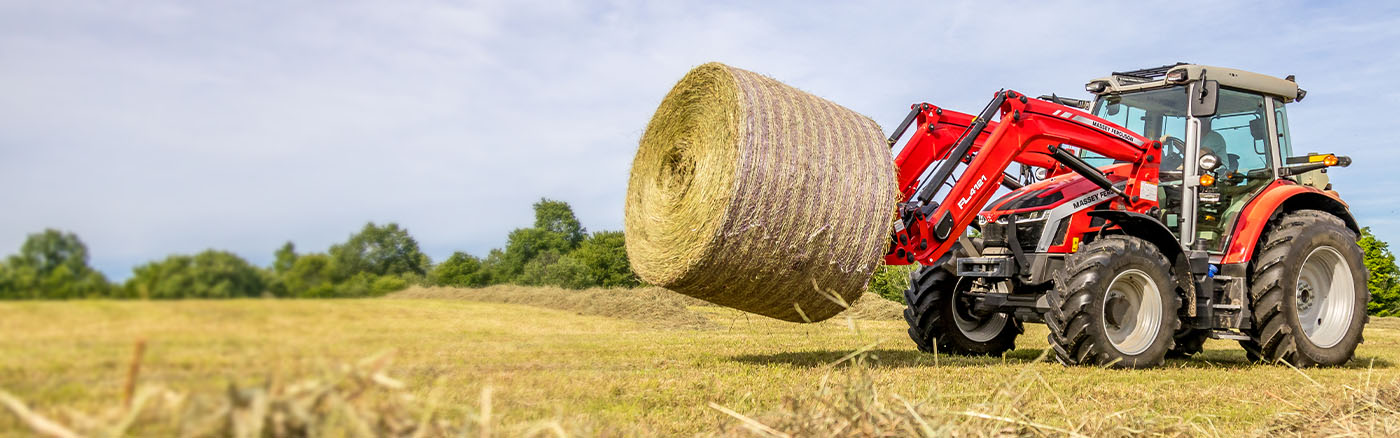

Unrivalled loader features
• Excellent visibility down to just 13 feet ahead of the tractor over slim dashboard and the narrowest steep-nose bonnet in the sector
• Highly maneuvrable, agile design
• Two cab positions and a choice of Standard or Visio roof
• A choice of three hydraulic systems providing exceptional pressure, flow and response
• Left-hand Power Control lever or right-hand T-handle to change direction, shift speeds and select neutral
• A choice of joysticks operate the loader as well as change direction and speeds
• Brake to Neutral – braking system puts the transmission into neutral when the brake pedal is pressed, making loader operation safer, easier and much more comfortable
• ‘Comfort-Control’ - Adjustable shuttle sensitivity – from slow and smooth to fast and dynamic direction changes
• Tractors can be ordered with factory-fitted loaders.
MF FL Series loaders
• Designed for fitting to MF 5S Series tractors
• Clean loader arm design offers unrivalled visibility and safety
• Enclosed pipework reduces the risk of damage
• ‘Lock & Go’, semi-automatic connection and removal system simplifies mounting
• Fast coupling of all hoses
• Soft Drive protects operators and the machine from shock loads
• Fully integrated operation through the range of MF 5S Series joysticks
• Simple fitting of a wide range of implements.
Ultimate loader specification
The MF 5S Series is available complete with a factory-fitted loader. Alternatively, the tractors can also be ordered as ‘loader ready’, equipped with a range of unrivalled factory-fitted features, only requiring mounting the loader and attachments
• Fully integrated loader sub-frame
• Pre-installed hoses to the spool valves mounted on the loader bracket
Electronic control provides:
• Additional functions set on the dashboard SIS display
• Automatic bucket shaking system
• Automatic engine speed selection when joystick is moved
• Hydraulic in-cab implement locking
• Hydraulic flowrate setting
• Loader suspension on/off
• Brake to Neutral
• Operation of the 3rd loader function
Max Power (hp)*
Max Torque (Nm)**
Lift Capacity (kg)
|MF 5S.115||115||AGCO Power 4.4L, 4 cylinders||Dyna-4, Dyna-6||460||4672|
|MF 5S.135||135||AGCO Power 4.4L, 4 cylinders||Dyna-4, Dyna-6||540||4672|
|MF 5S.145||145||AGCO Power 4.4L, 4 cylinders||Dyna-4, Dyna-6||550||4672|
|* @2,000rpm | ** @1,600rpm | Choice of ESSENTIAL, PANORAMIC CAB, EFFICIENT OR EXCLUSIVE SPECIFICATION FOR ALL MODELS|
