MF 7S Series Tractors

Ready to Work

The new straightforward and dependable Massey Ferguson® 7S Series provides ultimate efficiency and reduced operating costs. The MF 7S Series incorporates the technology you want, setting new standards in ease of operation and reliability.

MF 7S Series tractors meet the needs of farming professionals and are ideally suited for use in a range of applications.

Available with a wide choice of engine horsepower, transmissions, cab specifications, hydraulics and PTO options, you can tailor your MF 7S Series tractor to precisely match your requirements.

Key Benefits

Technology & Innovation

Designed to deliver more efficiency with lower operating costs.

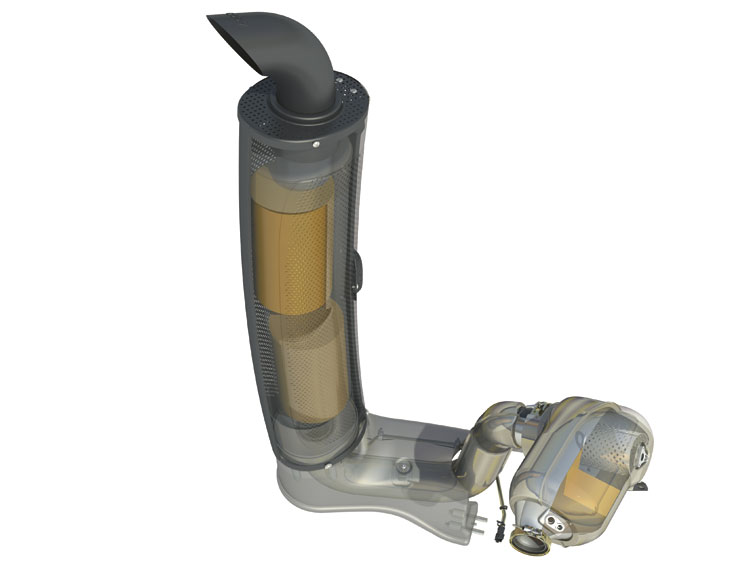

AGCO POWER ENGINE

AGCO POWER ENGINE

Our proven 6.6-liter, six-cylinder AGCO Power engine drives the MF 7S Series. It employs our exclusive, most advanced “All-In-One” aftertreatment system to meet emission regulations.

POWER CONTROL

POWER CONTROL

The Power Control lever provides convenient three-in-one, straightforward operation. Operators can shuttle between forward/reverse, shift Dynashift speeds or ranges, and select neutral, leaving the right hand free for other tasks, like loader operation.

DYNA-6

DYNA-6

Delivering class-leading dynamic performance and reliability, the semi-powershift transmission consists of six Dynashift ratios, optimally stepped in four ranges.

HYDRAULIC FLOW ON DYNA-6

HYDRAULIC FLOW ON DYNA-6

Massey Ferguson 7S Series tractors specified with Dyna-6 Super Eco transmissions are equipped with a 29 gal/min load sensing hydraulics as standard and an optional 39 gal/min.

DYNA-VT

DYNA-VT

Stepless transmission offers complete operator comfort and optimum fuel efficiency. The new automatic mode enables operators to adjust forward speed while automatically regulating engine speed according to load and speed.

HYDRAULIC FLOW ON DYNA-VT

HYDRAULIC FLOW ON DYNA-VT

For a dynamic hydraulic response, MF 7S Series equipped with Dyna-VT has a 29 gal/min closed-center load sensing system as standard and an optional 50 gal/min.

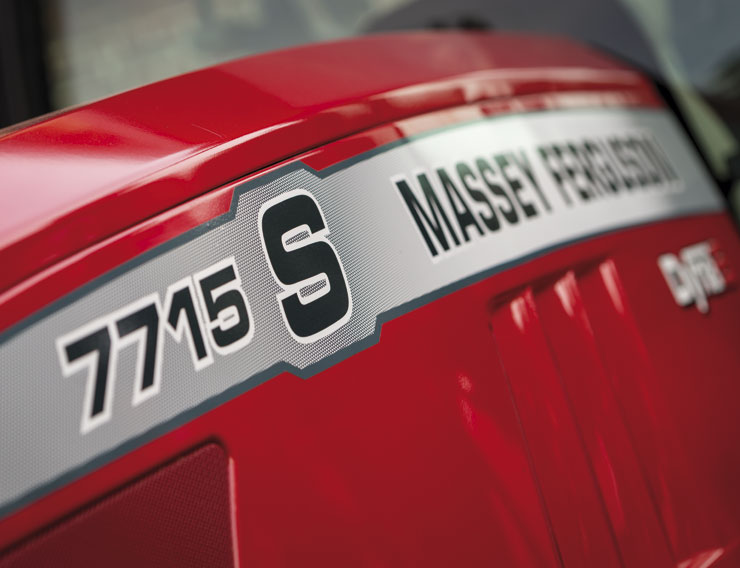

ENGINE POWER MANAGEMENT — 30 HP BOOST

ENGINE POWER MANAGEMENT — 30 HP BOOST

Engine Power Management (EPM) enables up to a 30 HP-plus power boost, plus extra torque, when required.

AIRFLOW SYSTEM

AIRFLOW SYSTEM

An optimized airflow system improves engine cooling, increasing performance and efficiency.

MULTIPAD — CONTROL AT THE PALM OF YOUR HAND

MULTIPAD — CONTROL AT THE PALM OF YOUR HAND

The MultiPad lever operates the transmission as well as controls cruise control, rear linkage, PTO, headland management and spool valves through the integrated mini joystick. It’s customizable yet intuitive, offering control like never before.

AUTOMATIC MODE

AUTOMATIC MODE

Automatic mode takes care of upshifts and downshifts, maximizing versatility and output. The response point is adjustable according to desired engine rpm.

BRAKE-TO-NEUTRAL

BRAKE-TO-NEUTRAL

The optional Brake-to-Neutral switch operates the clutch as soon as the brake pedal is pressed. This eases load on the operator, while increasing efficiency and convenience — particularly useful for loader operations.

SUPER CREEP

SUPER CREEP

Super Creep gears enable ultimate control in low-speed tasks, with forward speeds as low as .02 mph.

SUPER ECO

SUPER ECO

The Super Eco feature helps cut costs, with maximum speed achieved at a very low engine speed to save fuel (25 mph @ 1500 rpm, 31 mph @ 1800 rpm, depending on tires).

With the Massey Ferguson 7S Series, the engine, transmission, steering, PTO and hydraulics work together in unison, ensuring optimum efficiency in all phases of operation.
HIGH-CAPACITY REAR LINKAGE

HIGH-CAPACITY REAR LINKAGE

Offering a capacity of up to 21,164 pounds, the linkage can be equipped with up to five spool valves, which come with decompression levers for easy removal.

INDUSTRY-LEADING ELECTRONIC LINKAGE CONTROL

INDUSTRY-LEADING ELECTRONIC LINKAGE CONTROL

Electronic linkage control (ELC) provides precise and responsive control of draft functions to accurately maintain the working depth for soil-engaging implements, as well as the position of mounted equipment.

ACCURATE DRAFT CONTROL

ACCURATE DRAFT CONTROL

Our digital ELC system brings incredible draft control with more accurate depth settings and better ground contour following.

SPOOL VALVE OPTIONS

SPOOL VALVE OPTIONS

A wide choice of spool valves and control options help you make the most of modern implements. Depending on your tractor’s specification, you can specify up to eight spool valves.

FRONT LINKAGE

FRONT LINKAGE

Up to 8,818 pounds lift capacity. A heavy-duty Integrated Front Linkage System (IFLS) is available as an option and is designed to match the front suspension.

A WIDE CHOICE OF PTO OPTIONS

A WIDE CHOICE OF PTO OPTIONS

PTO options are available, with standard PTO speeds delivered at 2000 engine rpm — its maximum power rating. All options benefit from a “constant power” band of up to 1500 rpm.

FRONT PTO SYSTEM

FRONT PTO SYSTEM

A 1000 rpm front PTO is available. Combined with the front linkage, it allows a wide range of additional implements to be powered, reducing passes and improving efficiency.

113.4-INCH WHEELBASE

113.4-INCH WHEELBASE

The long wheelbase ensures superior traction, while optimal weight distribution of nearly 50:50 provides reassuring stability.

CONTINUOUS DAMPING CONTROL

CONTINUOUS DAMPING CONTROL

The Continuous Damping Control (CDC) system employs a pair of active mechanical dampers that constantly monitor driving conditions to provide unmatched ride comfort.

QUADLINK 2 SUSPENSION SYSTEM

QUADLINK 2 SUSPENSION SYSTEM

All models benefit from the Quadlink 2 suspension, boosting comfort levels for the operator and overall machine maneuverability. The combination of two cylinders and three accumulators delivers an extremely comfortable ride for the operator.

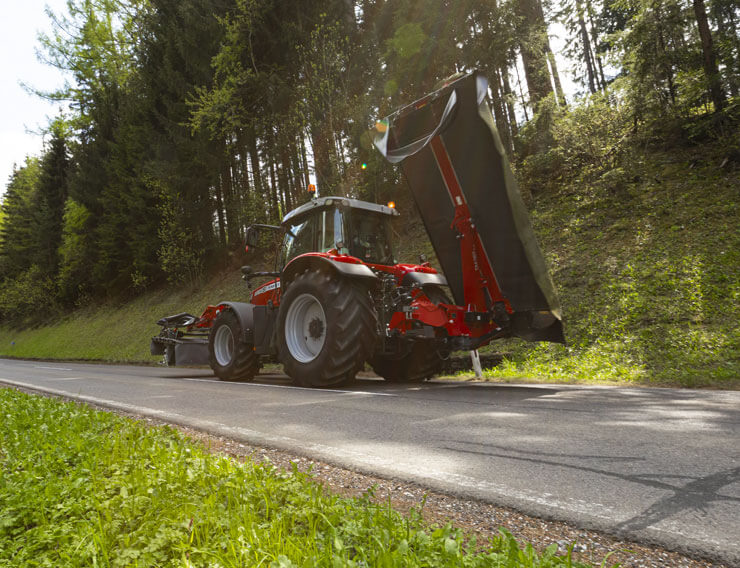

ACTIVE TRANSPORT CONTROL

ACTIVE TRANSPORT CONTROL

When driving across the headland or transporting heavy mounted equipment, implement “bounce” can occur. Active Transport Control is a shock-absorbing system that minimizes the “pitching” action — automatically adjusting for different implement weights.

SPEEDSTEER

SPEEDSTEER

SpeedSteer enables the operator to adjust the steering ratio and select the number of turns of the steering wheel required for a given amount of steering angle turns.

MANEUVERABILITY

MANEUVERABILITY

The MF 7S Series tractors offer a market-leading turn radius (16.2 feet). This greatly improves productivity when turning on the headland, during loader operations and negotiating narrow roads.

WIDE CHOICE OF TIRES

WIDE CHOICE OF TIRES

All models are available with a wide choice of 42-inch tires for the best traction capacity while minimizing soil compaction.

GROSS VEHICLE WEIGHT

GROSS VEHICLE WEIGHT

MF 7S Series can have a gross vehicle weight up to a market-leading 30,865 pounds.

Designed around you, the farmer, to help you get the job done faster, more efficiently and more comfortably.
ERGONOMICS

ERGONOMICS

Operators will find everything they need carefully arranged. The new armrest, which moves with the seat, offers easy access to all the main functions, including quick and convenient controls for the Bluetooth phone and radio.

NEW DASHBOARD

NEW DASHBOARD

Operators will appreciate the slim new dashboard. This clearly displays operating data on its 2.75 inch by 2 inch color “Setup and Information Screen” (SIS), which provides quick and easy access to a range of useful information.

VISIBILITY

VISIBILITY

Work smarter with implements and have a better on-road experience with 360-degree cab visibility.

EASY AND SECURE ACCESS

EASY AND SECURE ACCESS

A large and wide door, steps, rails, and tiltable steering column provide best-in-class accessibility to the cab.

WORKING LIGHTS

WORKING LIGHTS

The optional addition of 16 LED working lights transforms night into day. This package also includes daytime running LED signatures, enhancing an already attractive design.

DESIGN

DESIGN

The face of the new MF 7S Series captures and holds your attention. At its center is the iconic MF Triple Triangle logo, around which flows the powerful shape of the MF bar lights and the new MF gray saber.

The cabs of the Massey Ferguson 7S Series tractors provide an environment that counters stress and fatigue, providing unparalleled comfort, simplicity and visibility.
Classic Version

Classic Version

Classic is the entry-level package for the MF 7S Series. It includes all the key elements you would expect, with a blend of simplicity, ease of use and versatility to suit applications that require additional power and performance.

Deluxe Version

Deluxe Version

The Deluxe package enables you to work faster, to a higher standard, with more accuracy, together with high levels of comfort, ergonomics and reliability.

The on- and off-board technology solutions incorporated into the MF 7S Series are a clear indication of the pace of progress and innovation set by Massey Ferguson. We pride ourselves on being unbeatable when it comes to ease of use, improved productivity and profitability through higher yields, lower inputs costs, and greater profits.
DATATRONIC 5

DATATRONIC 5

The intuitive Datatronic 5 touch-screen terminal manages tractor functions and allows complete control of all ISOBUS-compatible implements.

FIELDSTAR 5

FIELDSTAR 5

Fieldstar 5 terminal creates a more intuitive precision farming experience. It provides a straightforward and easy-to-use experience for improved efficiency, productivity and profitability.

MF GUIDE

MF GUIDE

MF Guide is our full-featured, hands-free steering system, available on new tractors or as an after-market installation. It delivers unmatched accuracy, increasing the efficiency of your farming.

MF SECTION CONTROL

MF SECTION CONTROL

With fully automatic Section Control for ISOBUS implements, operators can apply seeds, fertilizer or crop protection products without overlap.

MF CONNECT

MF CONNECT

MF Connect service enables you — and your dealer — to coordinate, optimize and seamlessly connect your fleet to better manage maintenance and remotely monitor equipment in the field.

MF TASKDOC

MF TASKDOC

The MF TaskDoc system empowers farmers to become more productive by putting precision-measured data at the business owner’s fingertips.

DYNA-VT HIGHLIGHTS:

  • The stepless transmission eases the operator's job, while boosting fuel efficiency in all conditions
  • Simple, infinite speed control, from 0.02 speeds to 23 mph or 31 mph* available with 23 mph Super Eco or 31 mph* Eco
  • The choice of two speed ranges optimizes torque for different applications
  • Lever, pedal control means the operator can choose their preferred mode
  • “Supervisor” maximizes output under varying loads
  • New Automatic mode enables operators to adjust forward speed while automatically regulating engine speed according to load and speed
  • Shuttle and pedal aggressiveness adjustment with Brake-to-Neutral feature

Operator Environment - Package Specifications







Classic



Deluxe

Overview

Classic is the entry-level package for the MF 7S Series, while being anything but basic.
It includes all the key elements you would expect from your Massey Ferguson, with a blend of simplicity, ease of use and versatility to suit applications that require additional power and performance.

Deluxe is the high-specification package for the MF 7S Series, designed to help you work smarter and get better results. Dedicated to delivering increased productivity, the Deluxe is the high-specification package for the MF 7S Series, designed to help you work smarter and get better results. The Deluxe package enables you to work faster, to a higher standard, with more accuracy, together with high levels of comfort, ergonomics and reliability. Stay in control of the most technologically advanced and demanding implements to take advantage of their increased productivity.

Standard Features

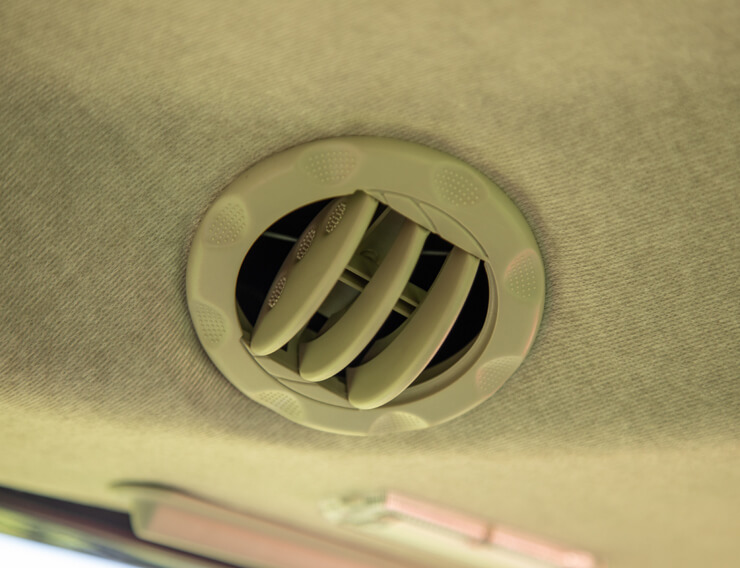

- Air conditioning with manual adjustment
- Telescopic, wide-angle wing mirrors
- Standard air-suspended seat
- 2 USB ports
- Control center with T-lever transmission operation
- Dyna-6 Super Eco with standard Automatic Mode
- Dyna-6 Super Eco 25 mph transmission*
- Brake-to-Neutral
- 3 mechanical spool valves
- Engine speed memory A
- Closed center, load sensing hydraulics
- MF Connect telemetry-ready with five-year subscription
- Mechanical passive cab suspension
- Telescopic, wide-angle wing mirrors
- Air conditioning with manual adjustment
- Armrest with MultiPad lever
- Automatic air-suspended seat
- 2 USB ports
- SpeedSteer
- Dyna-6 with Automatic mode or Dyna-VT 25 mph Super Eco transmissions
- Cruise control and Brake-to-Neutral
- 29 gal/min closed-center hydraulics
- Suspended front axle
- Electrical and mechanical spool valves
- Engine speed memory A or B
- 2 electrical spool valves with electrical micro-joystick and 2 mechanical spool valves
- MF Connect telemetry-ready with five-year subscription
- Datatronic 5 9-inch touch-screen terminal (with tractor settings management and ISOBUS integrated, and as an option, radio and phone interface, camera and MF Guide compatible)

Optional Features

- Front axle suspension
- CD/MP3 front AUX-in/Bluetooth with microphone
- Integrated Front Linkage System and PTO
- 540 and 1000, 540 Eco and 1000 Eco rear PTO
- Dyna-6 Eco 31 mph transmission*
- Loader-ready from factory with multifunction mechanical joystick
- 4 mechanical spool valves
- Fieldstar 5 terminal
- ISOBUS
- MF Guide system with advanced guidelines
- MF Section and Rate Control
- MF TaskDoc and MF TaskDoc Pro recording all job’s data exchange
- Mechanical active cab suspension
- Automatic air conditioning
- 16 LED working lights
- Heated, electric adjustable mirrors
- Automatic air-suspended swivel seat with lateral suspension, Dynamic Damping System
- Integrated Front Linkage System and 1000 rpm front PTO
- Dyna-6 31 mph* Eco transmission with Supercreeper or Dyna-VT
- Loader-ready from factory with multifunction electrical joystick
- Closed center load sensing hydraulics with 39 or 50 gal/min
- Fieldstar 5 terminal
- ISOBUS
- MF Guide system with advanced guidelines
- MF Section and Rate Control
- MF TaskDoc and TaskDoc Pro recording all job’s data exchange
- MF Next Management FMIS

*Depending on market/legislation

Tractor-Loader

When you purchase a new Massey Ferguson 7S Series tractor, you have the option of a fully integrated loader from the factory. Designed for maximum maneuverability and maintenance access, it is an integral part of the machine. The optional mechanical or E/H multifunction joystick has additional transmission functions such as forward/reverse and speed change for added versatility during operation.

The live third valve enables the operator to open/close a grab and tip or crowd an implement at the same time. You will enjoy superb visibility thanks to the new slimmed down hood and exhaust pipe. The optional Visioline roof improves vision of loads at height, particularly useful when stacking bales. The “clutch effect” puts the transmission into neutral when the brake pedals are depressed, allowing single-foot brake and clutch operation, making loader operation easier and more comfortable.

Tractor-Loader Highlights:

  • Fully integrated MF FL loader now available factory-fitted to deliver ultimate performance
  • Multifunction joystick option also changes direction and speed, providing total control
  • Proportional control of a third spool valve enables operators to open/close a grab and tip or crowd an implement at the same time
  • Highest visibility thanks to the smart profiled design of the hood and dashboard
  • Unrestricted maneuverability and access for maintenance
  • Excellent maneuverability including tight turning angles, SpeedSteer
  • New quick coupling system reduces pressure losses at high flows, quicker loader movement and saves fuel
  • Hydraulic implement locking can be activated via the SIS
  • New, standard Engine Speed Automation on the SIS menu allows operators to increase the engine speed according to the action on the joystick
  • To further improve loading performance, there is a range of output and comfort-enhancing features including high flow hydraulics and the Brake-to-Neutral function, which also disengages drive when the brakes are applied

Available Models

Model

Max Power1 (HP)

Max Power-EPM2 (HP)

Engine

Transmission

Max Torque3 (FT./LBS.)

Lift Capacity (LBS.)

MF 7S.155 155 175 AGCO Power 6.6 L, 6 cylinder SCR Dyna-VT, Dyna-6 553 21,164
MF 7S.165 165 185 AGCO Power 6.6 L, 6 cylinder SCR Dyna-VT, Dyna-6 590 21,164
MF 7S.180 180 210 AGCO Power 6.6 L, 6 cylinder SCR Dyna-VT, Dyna-6 634 21,164
MF 7S.190 190 220 AGCO Power 6.6 L, 6 cylinder SCR Dyna-VT 682 21,164
MF 7S.210 210 220 AGCO Power 6.6 L, 6 cylinder SCR Dyna-VT 682 21,164
*WITH EPM | **@ 1500 RPM WITH EPM
