MF RB Series Round Balers

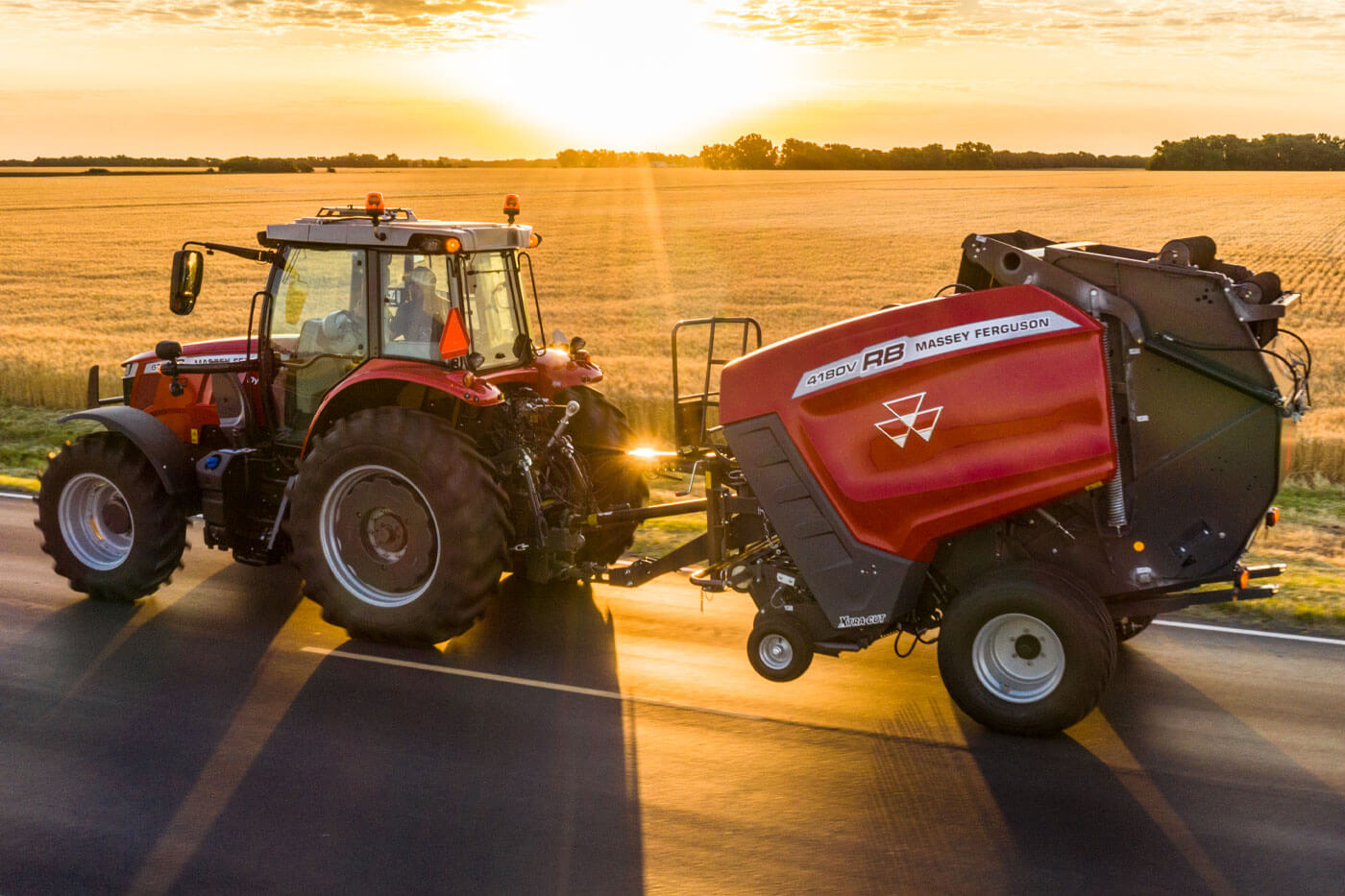

The ultra-efficient Massey Ferguson® RB 4100 Series round baler is built to handle everything your operation demands. Ideally suited for dairy farms or cow/calf operations that need a rugged design to stand up to rigorous baling schedules. The innovative performance features all add up to faster production and the highest quality forage possible.
Current Offers & Promotions
MF RB Series Round Baler
0% for 48 months or cash bonus
Offer valid through November 30, 2023
MORE OPERATOR CONTROL

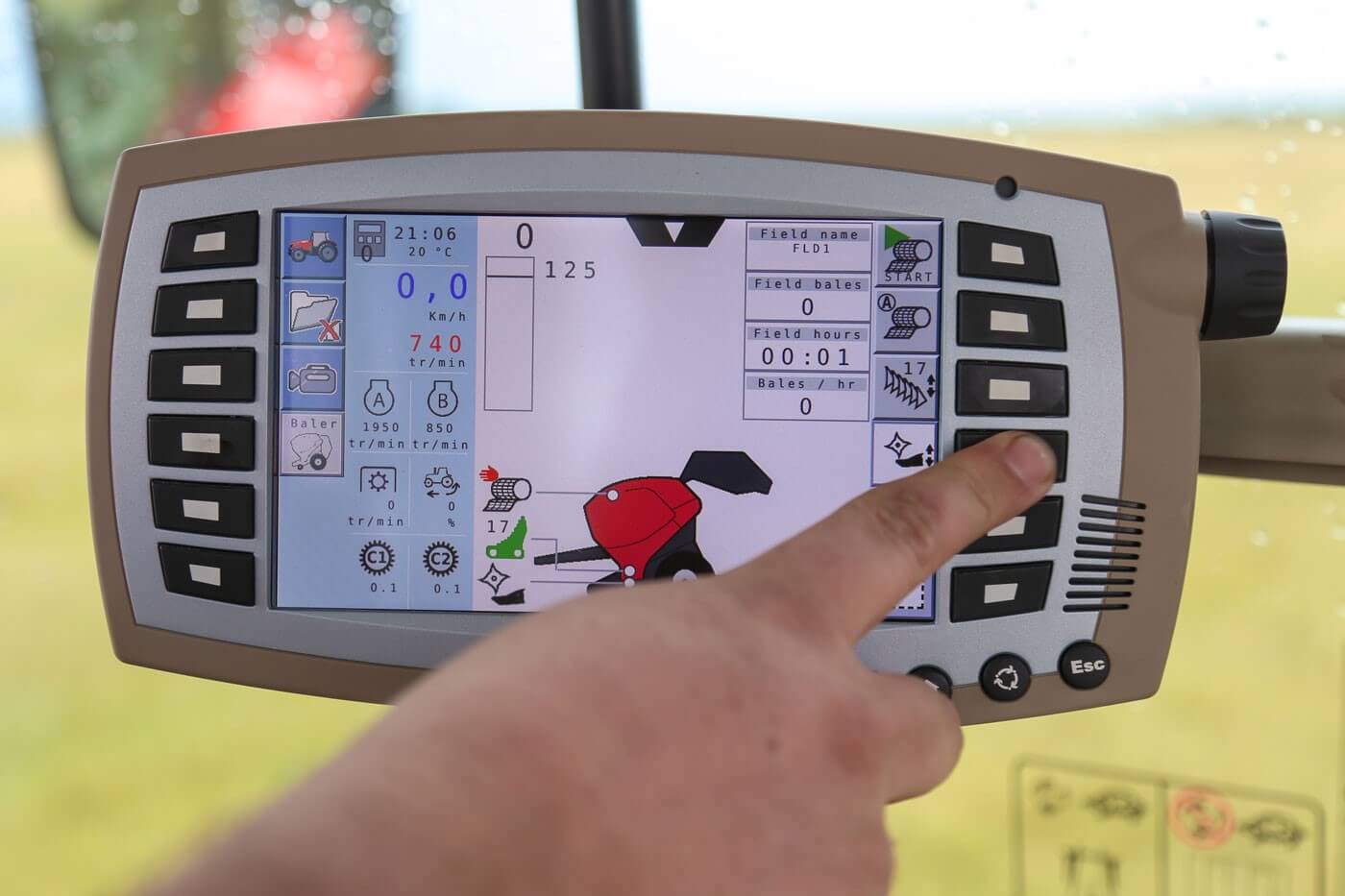

Optional E-Link Pro™ touch-screen monitor tracks bale formation and allows in-cab control of cutter engagement and knife group selection. In addition, the baler’s ISOBUS design allows the use of any compatible tractor monitor for baler monitoring control.
MORE VERSATILE CUTTING
Two sets of XtraCut™ hydraulically operated knife banks can be controlled or disengaged from the tractor cab. Select zero, eight, nine or all 17 knives to attain forage cuts as small as 2.65 inches in length.
MORE VERSATILE PROCESSING
Mechanically conveying net from the net drive rollers to the bale at the beginning of the net tie process optimizes performance in all conditions. Front-mounted mesh system provides easy viewing. Easy Load System (ELS) uses a cradle to move the stored mesh roll into the operating position. Compatible with edge-to-edge or over-the-edge mesh wrap. Also has storage for two extra rolls of net (non-Protec).
MORE CONSISTANT BALE OUTPUT
The RB Series features five tine bars and teeth spaced just 2.5 inches apart, allowing for a far more complete capture of crop on the field. A crop press roller is positioned in front of the pickup to enhance crop feeding into the chamber. The tailgate floats down as the bale is being formed to optimize the feed angle off of the rotor as the bale gets larger. This in conjunction with the Constant Pressure System (CPS) ensures consistent bale shape and density.
OPTIMIZED OPERATOR PRODUCTIVITY

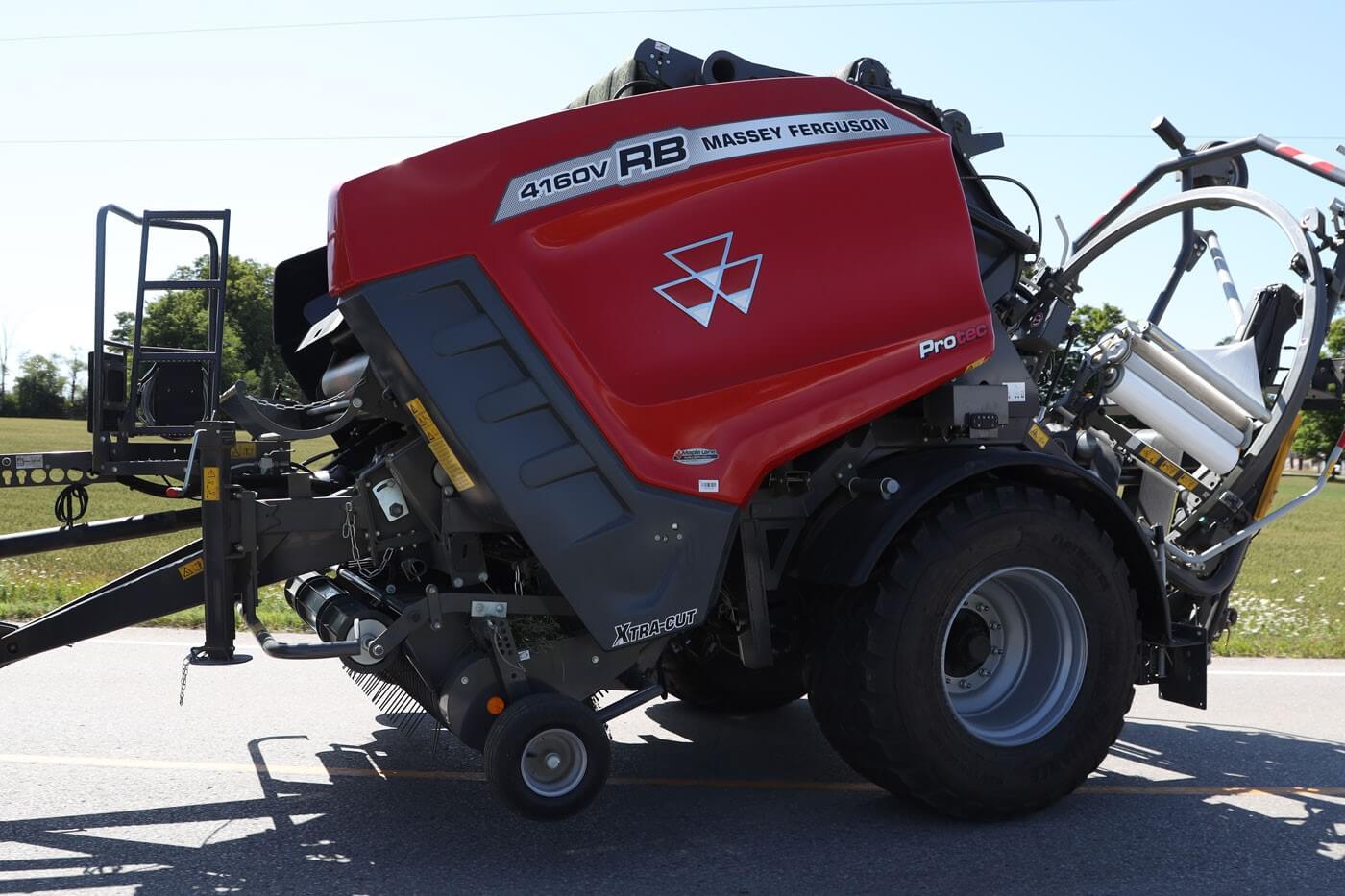

Optional RB 4160V Protec provides the ability for a single operator to process and fully package bales quickly and efficiently, resulting in the highest quality forage wet or dry. Wrapper table and ring operate independently, ensuring proper encapsulation of bales while film wrapping.
Technology & Innovation
The HydroFlex Drop Floor features heavy mechanical springs that allow the knife bed to float open slightly when an obstruction occurs. If the rotor is plugged, the operator can hydraulically drop the floor from the tractor cab to clear the plug.
MORE TINE BARS
Due to the additional space created through the absence of a cam track, five tine bars are now fitted to the pickup. With the tines spaced just 2.5 inches apart, you get an even better and cleaner crop intake.
When looking at the RB Series pickup, you’ll notice offset tines on the ends. This allows the pickup to continually and consistently feed the crop flow augers, giving you square, shouldered bales.
MORE DURABLE TINES
The tine is longer, thicker and more flexible for increased lifespan. Improved tine fixation also helps prevent tine breakage, because the tension within the material is more evenly spread.
ANGLED FOR CLEANER PICKUP
The angle of the tine has been adjusted to ensure the cleanest possible crop pickup under all crop and soil conditions.
Hydroflexcontrol - Stage 1
The first stage of HydroFlex™ Control allows movement of the front part of the feed chamber floor and will automatically prevent up to 80% of potential blockages to avoid unnecessary downtime.
Hydroflex control – Stage 2
Should a major blockage occur, stage two of HydroFlex Control is activated by the operator and is cleared by lowering the rear of the feed table floor hydraulically from the cab, allowing for material to easily pass through.
IMPROVED CROP THROUGHPUT
The pickup design maximizes efficiency of crop flow from the windrow into the rotor without hesitation into the bale chamber for best-in-class capacity and uniform bales every time.

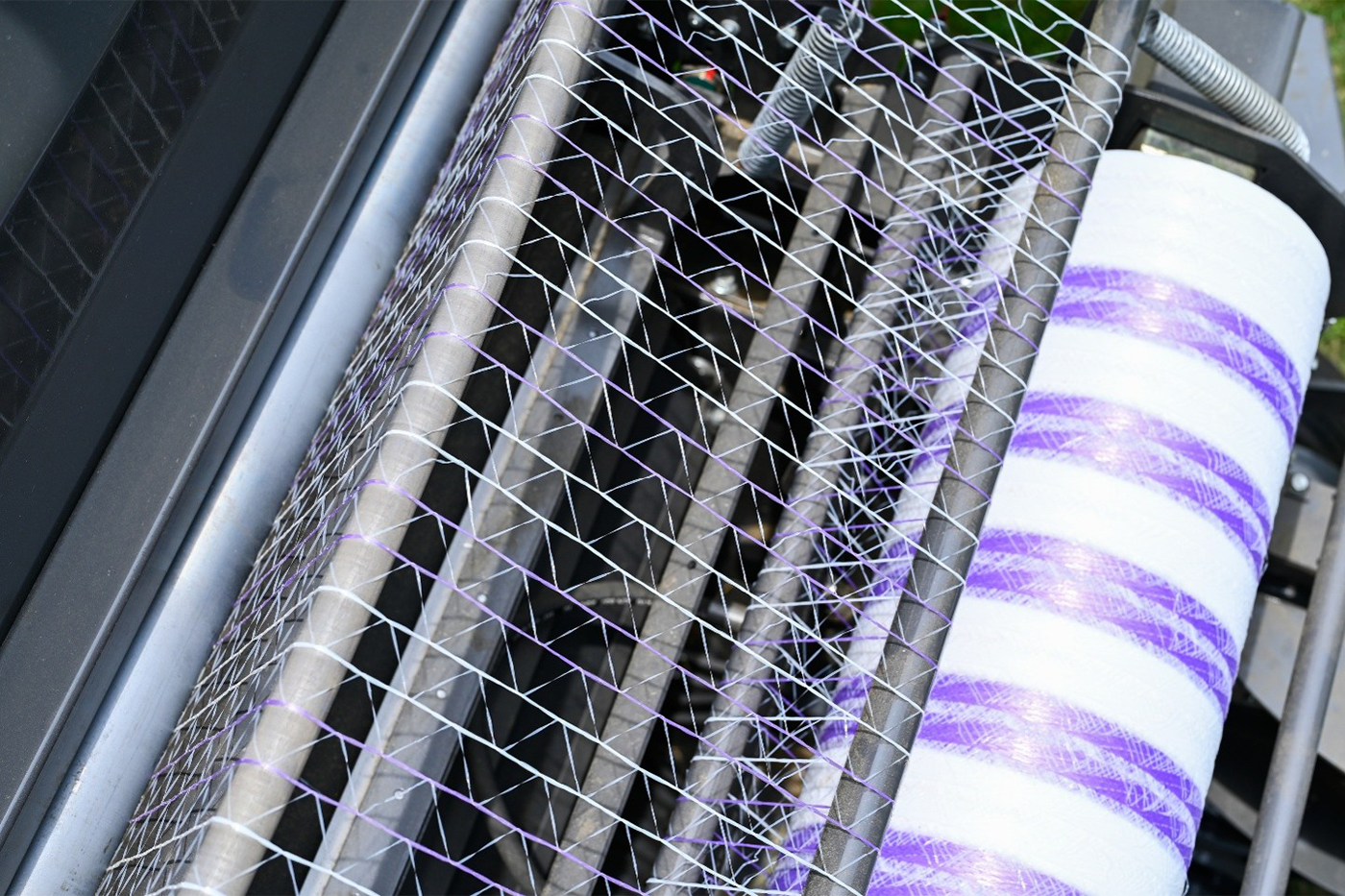

ADAPTABLE FOR VARIABLE CONDITIONS
The redesigned Varionet™ system optimizes performance in all conditions by mechanically conveying net from the net drive rollers to the bale at the beginning of the net tie process. Also features front-mounted mesh system for easy viewing.
HIGHER BALE COMPACTION
The constant pressure system ensures an equally dense bale throughout, and four continuous belts provide maximum traction while the bale forms, creating the chamber.
In the event of a blockage, the rear of the feed table floor can be lowered hydraulically from the operator’s seat. When lowering the feed floor, all knives are withdrawn, ensuring that the blockage has passed into the bale chamber without any wastage.
CONSISTENTLY SIZED BALES
The mechanical tailgate locking system ensures that the tailgate remains completely closed throughout the baling process, giving you consistently sized bales with little crop loss.
STANDARD LIGHTS AND CAMERA
Available on the RB 4160V Protec model, rear-facing work lights for the table and rear-facing camera with included monitor provide visibility to the wrapping table to ensure proper operation.

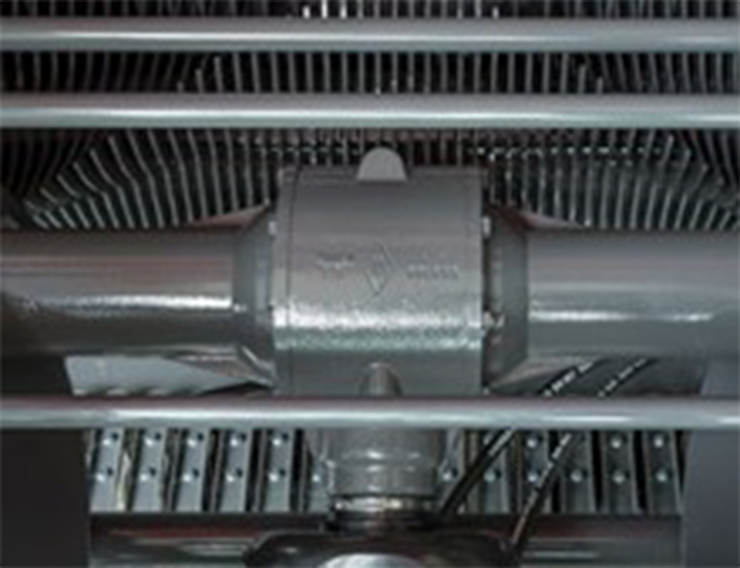

Split Power Transfer
The split power main drive distributes power evenly. Main PTO gearbox splits power to both sides of the baler to drive the components, allowing power transfer with less maintenance.
System provides edge-to-edge or edge-over-edge wrapping, for perfect bale coverage every time. This means your bales not only look great, but they’re also completely protected against bad weather and crop losses.
ELS MAKES IT EVEN EASIER
The Easy Load System, or ELS, allows easier loading of the net roll. After loading, the new net roll is simply tipped backward, then lifted and locked into position. It makes the process simple, saving you time and effort.

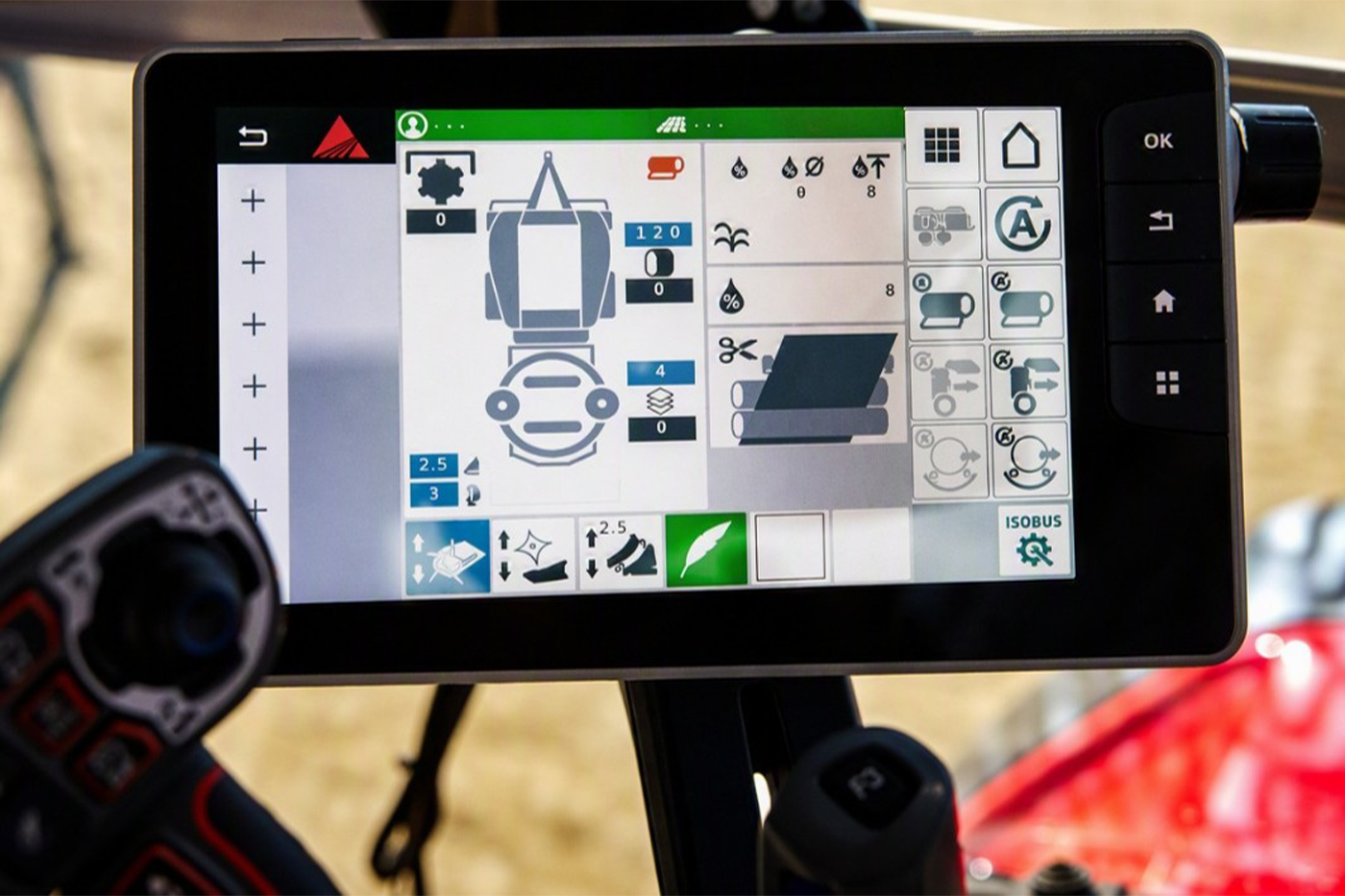

The E-Link Pro touch-screen monitor lets you track bale formation, control cutter engagement and select knife group from inside the cab. In addition, the baler’s ISOBUS design allows the use of any compatible tractor monitor for baler monitoring/control.
Minimum PTO Horsepower (HP)
Hydraulic Requirements (DA)
Approx. Weight (LBS)
|MF RB 4160V||4x5||35.5" - 63"||78"||Yes||100||2 DA||8,680|
|MF RB 4180V||4x6||35.5" - 71"||78"||Yes||120||2 DA||8,840|
