Massey Ferguson Rakes

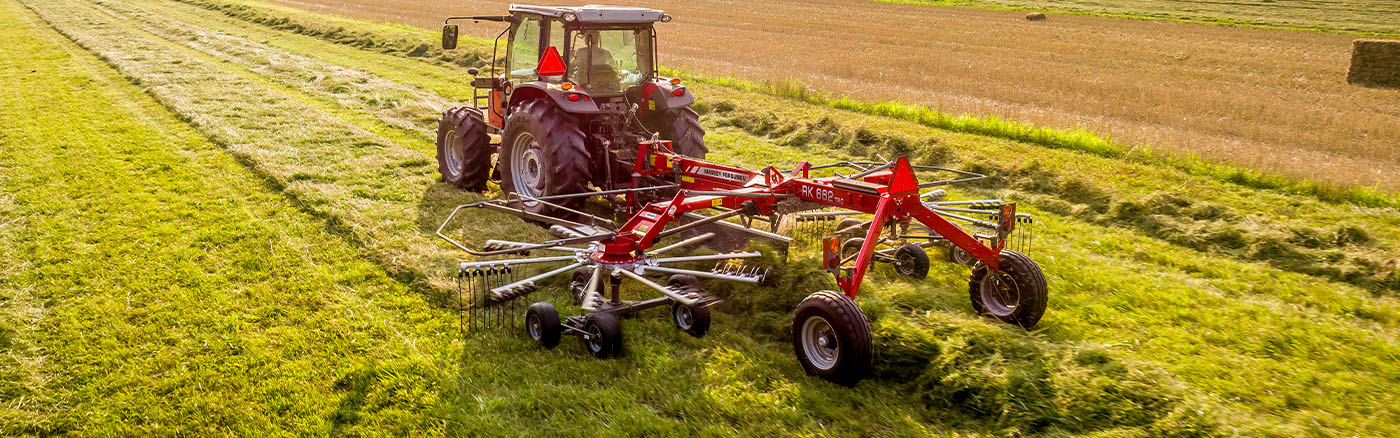

Designed to fit both custom and commercial operations, Massey Ferguson RK Series wheel rakes, MF RK Series rotary rakes and MF 3900 Series rakes gently sweep your crop in even fluffy windrows for faster drying and better baling.

Key Benefits

Technology & Innovation

DURABLE FRAME

DURABLE FRAME

A rugged box-beam frame ensures both stability on rough terrain and a long service life.

BUILD THE PERFECT WINDROW

BUILD THE PERFECT WINDROW

Tine arms rotate on a cam track within the gear head that enables the tine to lift the hay then rotate by at the precise time, discharging the hay against a robust vinyl curtain in order to produce the perfect windrow.

FLOATING ALONG

FLOATING ALONG

RotorFlex suspension lets the rotors closely follow field topography so tines operate close to the ground without making contact for cleaner hay in your windrow.

ADJUSTABLE WHEEL BEAMS

ADJUSTABLE WHEEL BEAMS

An adjustable drawbar clevis allows you to level the rake wheel beams to match the tractor drawbar height.

WE HAVE LIFT-UP

WE HAVE LIFT-UP

The RK Series rakes are all equipped with a headland position feature, meaning rotors do not need to be switched off at the end of the field.

DOWN WITH DIRT

DOWN WITH DIRT

The "jet effect" of the rotor undercarriage when lifting and lowering on headlands ensures the tines do not gouge the ground. This provides longer service life of the equipment and quality hay by eliminating ash injection.

RUGGED WHEELS

RUGGED WHEELS

Heavy-duty 60-inch diameter rake wheels result in more teeth engaging the ground at any given time, increasing surface area contact and reducing ash and debris in your windrow.

BETTER PICKUP

BETTER PICKUP

The rake wheels are mounted in pairs on a walking beam mount which oscillates vertically following field contours, gathering material that competitors leave behind.

CHOICE OF RAKING WIDTHS

CHOICE OF RAKING WIDTHS

The raking angle and raking width can be adjusted independently, ensuring the windrow matches your baler's pickup width.

GROUND HUGGER

GROUND HUGGER

Thanks to the MF 3900 Series' close-to-the-ground flotation design, the large diameter rake wheels sweep fields clean.

SPREAD YOUR WINGS

SPREAD YOUR WINGS

Get exact windrow widths with hydraulic fold wings — and stay on the move with a hydraulic cylinder on each side that lifts the rake wheels.

PICK-UP ARTIST

PICK-UP ARTIST

Independent spring loaded raking wheels result in better crop gathering in uneven field conditions while minimizing ash contamination.

Cleaner Raking

Cleaner Raking

Large 55-inch diameter rake with 40, 7.5mm teeth per wheel results in more teeth contacting the ground at any given time. This results in less stress and wear per tooth and a cleaner raking action.

RAKE IT ALL IN

RAKE IT ALL IN

The MF 3900 Series is offered in 12- or 14-wheel versions with working widths up to 28 feet for maximum raking efficiency whether you're square or round baling.

BIG WHEELS

BIG WHEELS

Large 55-inch diameter wheels keep hay from windmilling around the rake for better pickup, even at higher speeds.

Available Models

MF RK Series Rotary Rakes - Side Delivery

Model

Working
Width ft. (m)

Minimum Required PTO HP

Rotor Delivery

Hitch Type

MF RK 361 DN 11'6" (3.6) 30 Right-Hand 3-pt mounted
MF RK 451 TR 14'7" (4.5) 30 Right-Hand Drawbar
MF RK 662 SD-TRC 19’0” (5.8) - 21’6” (6.6) 32 Right-Hand, Center and Right-Hand 2-pt trailed
MF RK 772 SD-TRC 21’7” (6.6) - 25’3” (7.7) 41 (30) Right-Hand, Center and Right-Hand 2-pt trailed
MF RK 842 SD-TRC PRO 25'6" (7.8) - 27'6" (8.4) 60 Right-Hand, Center and Right-Hand 2-pt trailed

MF RK Series Rotary Rakes - Center Delivery

Model

Working
Width ft. (m)

Minimum Required PTO HP

Rotor Delivery

Hitch Type

RK 662 TRC 19'0" (5.8) – 21'5" (6.5) 26 Center 2-pt trailed
RK 762 TRC G2 22’8” (6.9) - 24’11” (7.6) 50 Center 2-pt trailed
RK 862 TRC G2 24'11" (7.6) – 28'2" (8.6) 60 Center 2-pt trailed
RK 922 TRC G2 26’3” (8.0) - 30’2” (9.2) 70 Center 2-pt trailed
RK 922 TRC PRO G2 26’3” (8.0) - 30’2” (9.2) 75 Center 2-pt trailed

MF RK Series Wheel Rakes

Model

Working
Width ft. (m)

Power
Requirements
HP

Number of Wheels

Weight lb. (kg)

RK 1808V 16.5' (5.03) – 17.5' (5.3) 25 8 1,437 (647)
RK 2110V 18.5' (5.6) – 21'0" (6.4) 30 10 1,633 (740)
RK 2412V 21'0" (6.4) – 24'0" (7.3) 30 12 1,794 (859)
MF 3983 High-Capacity Up to 24 (Up to 7.32) 30 12 3,500 (1,587)
MF 3986 High-Capacity Up to 28 (Up to 8.5) 40 14 3,800 (1,723)
