Born to Farm

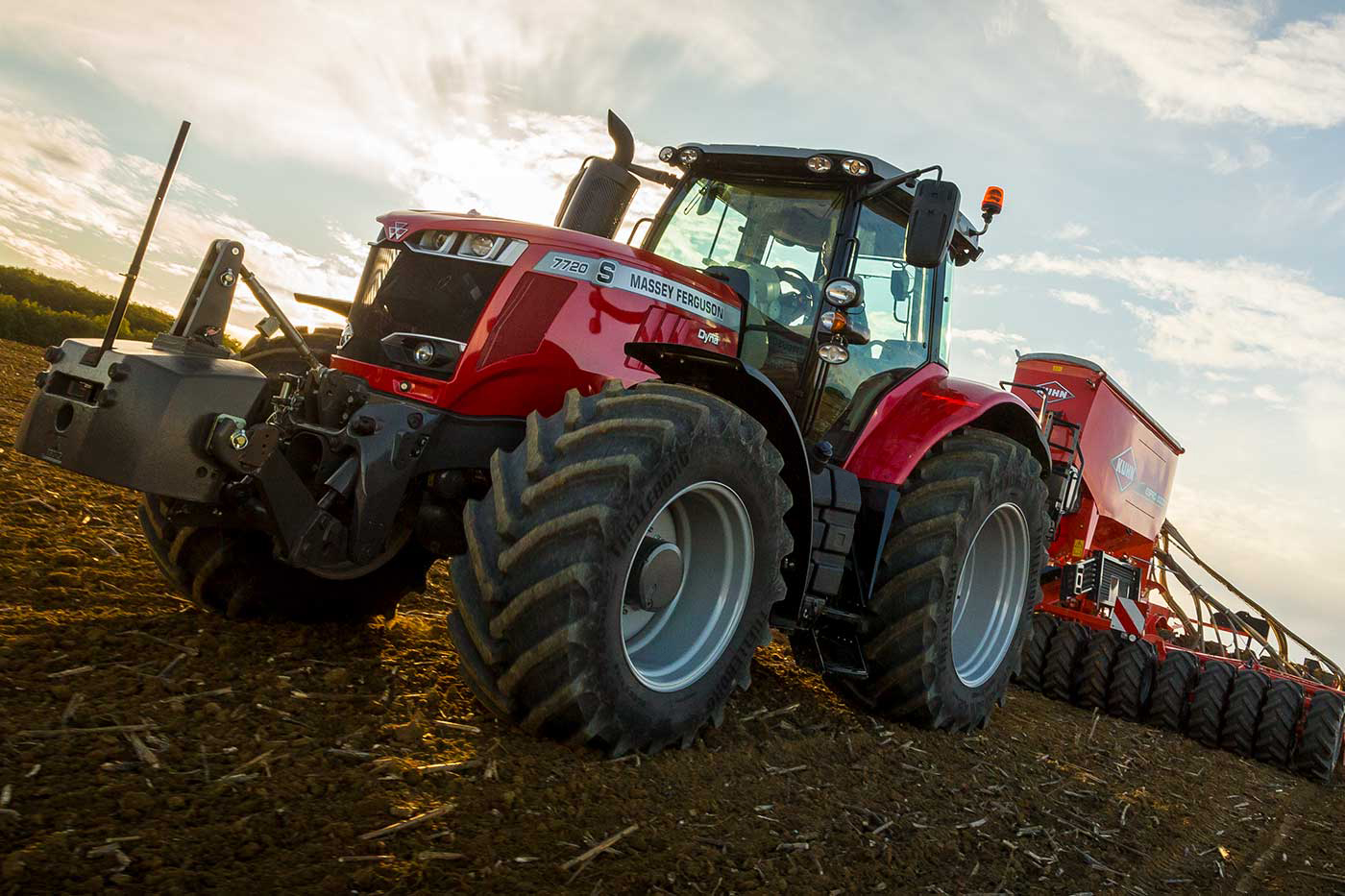

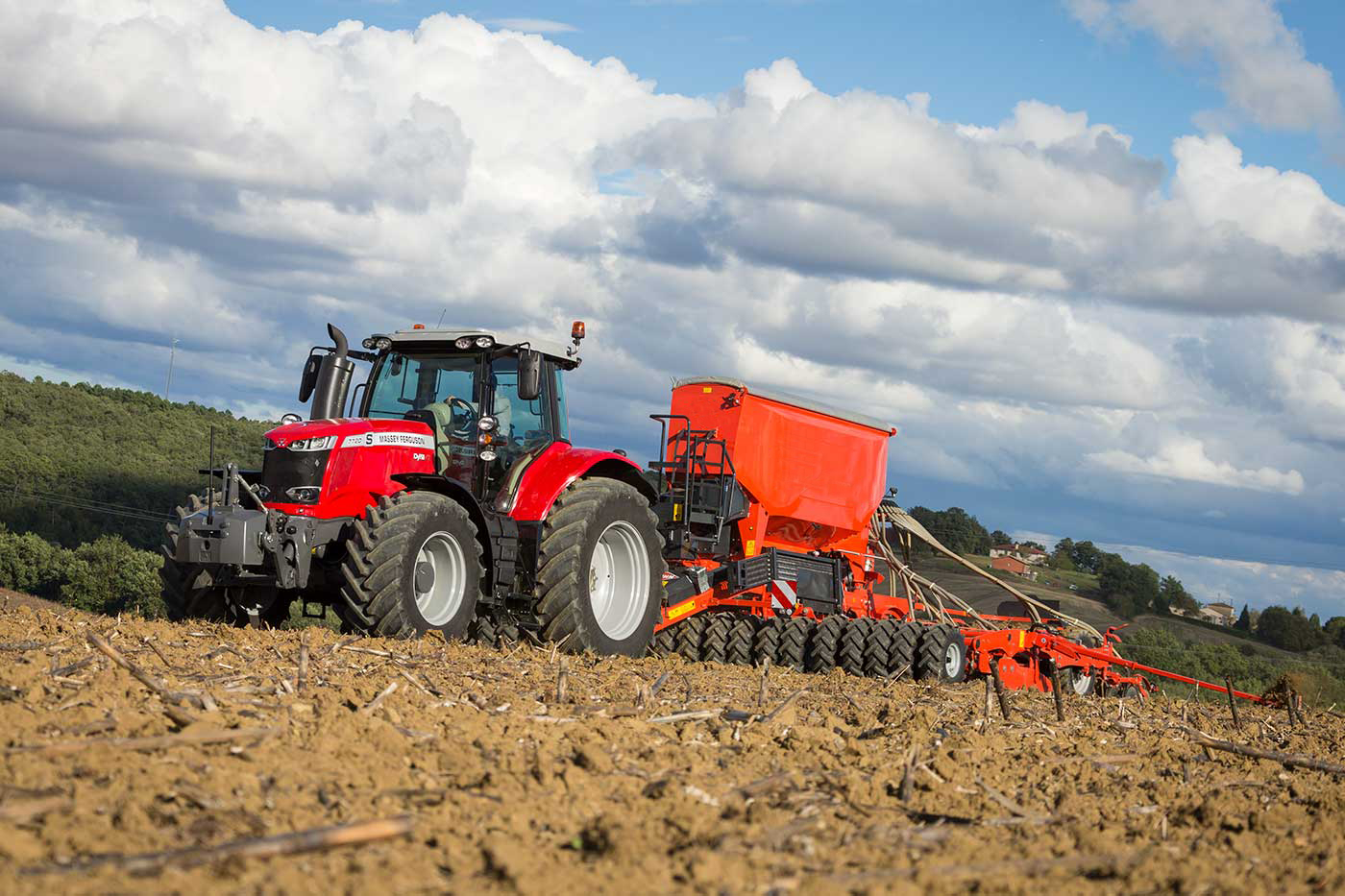

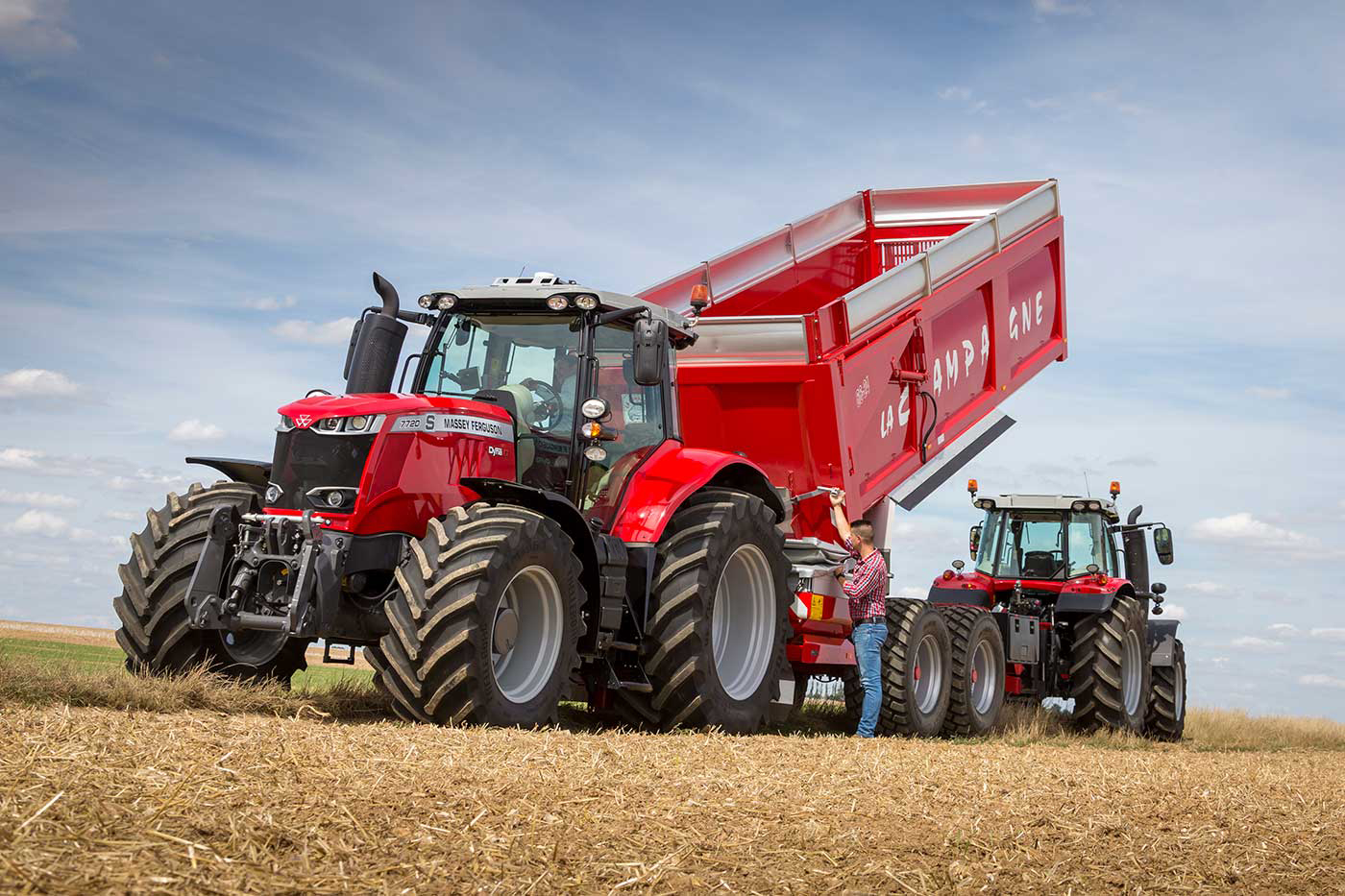

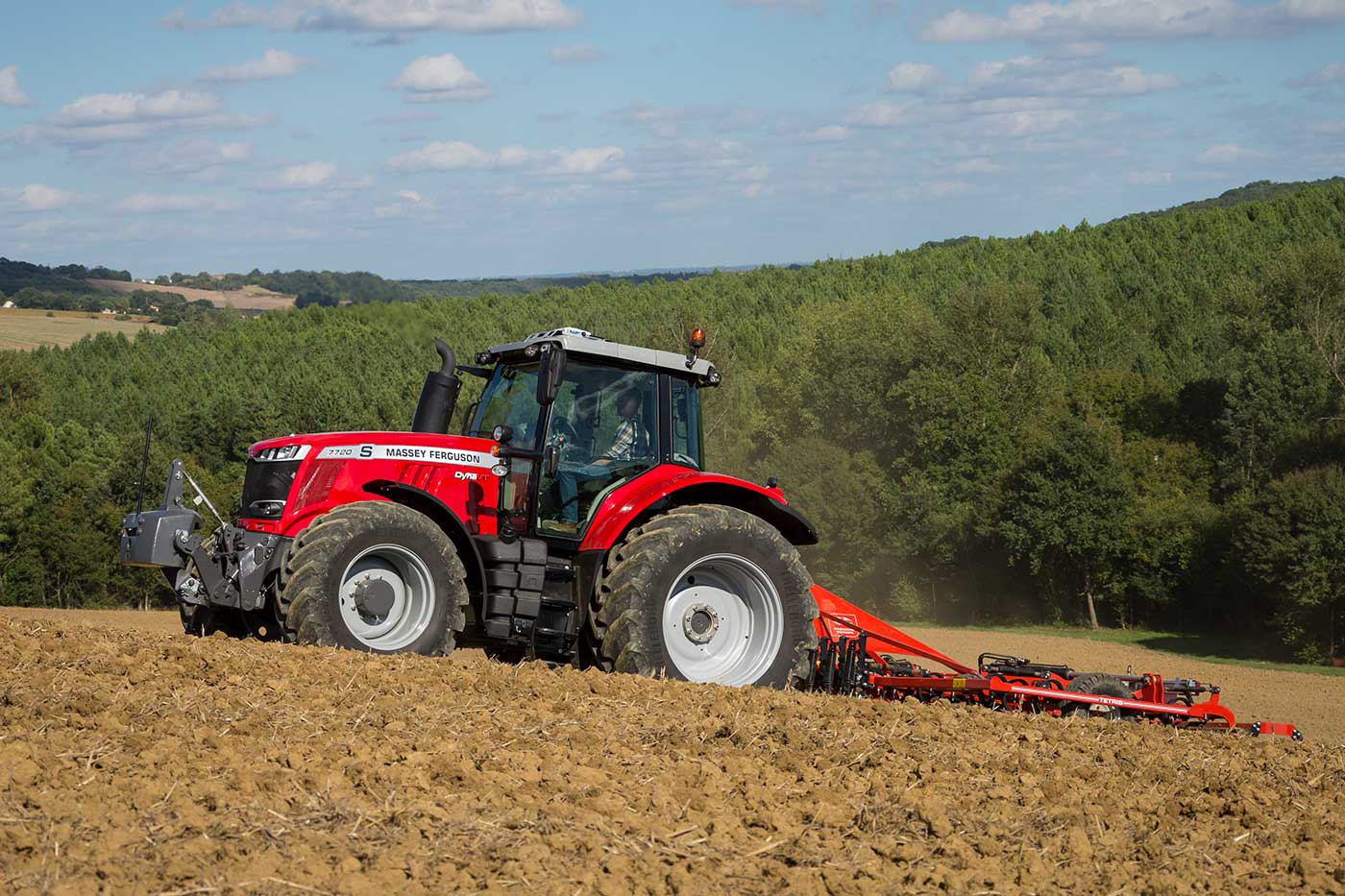

Introducing the MF 7700 S Series

Practical, straightforward and reliable – that's the MF 7700 S Series.

Massey Ferguson's MF 7700 S series tractors have been designed and built to meet the needs of professional farmers across all sectors of the industry – livestock, arable, mixed and contracting.

A comprehensive choice of power output, transmission, cab specification, hydraulics and PTO variants, means individual customers can specify a machine that precisely meets their needs.

The MF 7700 S series is available in 2 transmissions: Dyna-6 and Dyna-VT.

Key Benefits

VR
Image Gallery

Technology & Innovation

The Smart Generation of Cost Effective Power.

AGCO Power Engine

AGCO Power six-cylinder 6.6 and 7.4l engines. The engine is fitted with an automatic low idle system that cuts engine revs to save fuel when idling while reducing noise levels in the cab for improved operator comfort.

Dyna-6

Delivering class-leading dynamic performance and reliability, the semi-powershift transmission consists of six Dynashift ratios, optimally stepped in four ranges and changed without recourse to the clutch pedal.

Dyna-VT

With the continuously-variable Dyna-VT transmission, Massey Ferguson engineers have developed a power transfer system that sets a new benchmark for ease-of-use and productivity.

Power Control

The Power Control lever provides convenient three-in-one, straightforward operation. Operators can shift between forward/reverse ranges as well as select neutral, leaving the right hand free.

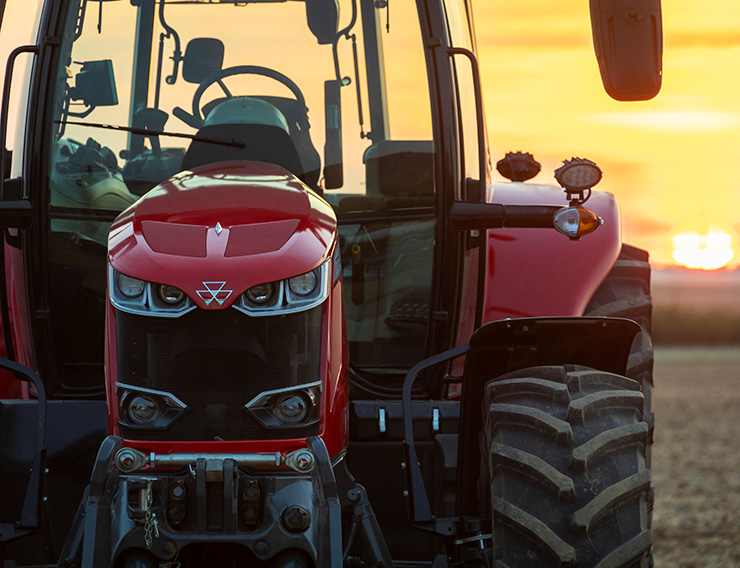

The cabs on the MF 7700 S provide an environment designed specifically to counter stress and fatigue by providing unparalleled comfort, simplicity and visibility. Features such as automatic beacon activation and comfort light delayed switch-off are a welcome addition.

Efficient Cab

This level, with its more advanced features, aims to cater for more intensive, larger-scale operations seeking cost-effective benefits for the business.

Panoramic Cab

Clear, unobstructed visibility to the right-hand side allows safe and efficient operation of side-mounted equipment. The wide, one-piece screen is extremely tough and protects the operator from any flying debris.

Mechanical Cab Suspension

Mechanical cab suspension makes the ride smooth.

New Dashboard with SIS

The slim dashboard design provides for quick, clear and easy analysis of operating data, presented on a 70mm x 52mm colour screen. SIS – the Setup and Information Screen.

Air-Conditioning

Air-conditioning is, of course, a standard feature and can be automatic to pre-set and monitor cab conditions. External mirrors can also be heated to maintain safety and convenience during winter work.

Attention to Detail

Creature comforts and ease of movement have been further enhanced, from cab access, to seating, to ambient air. A wide choice of seats is available, including heated, together with cool storage and Bluetooth radio (DAB option).

12 LED Lights

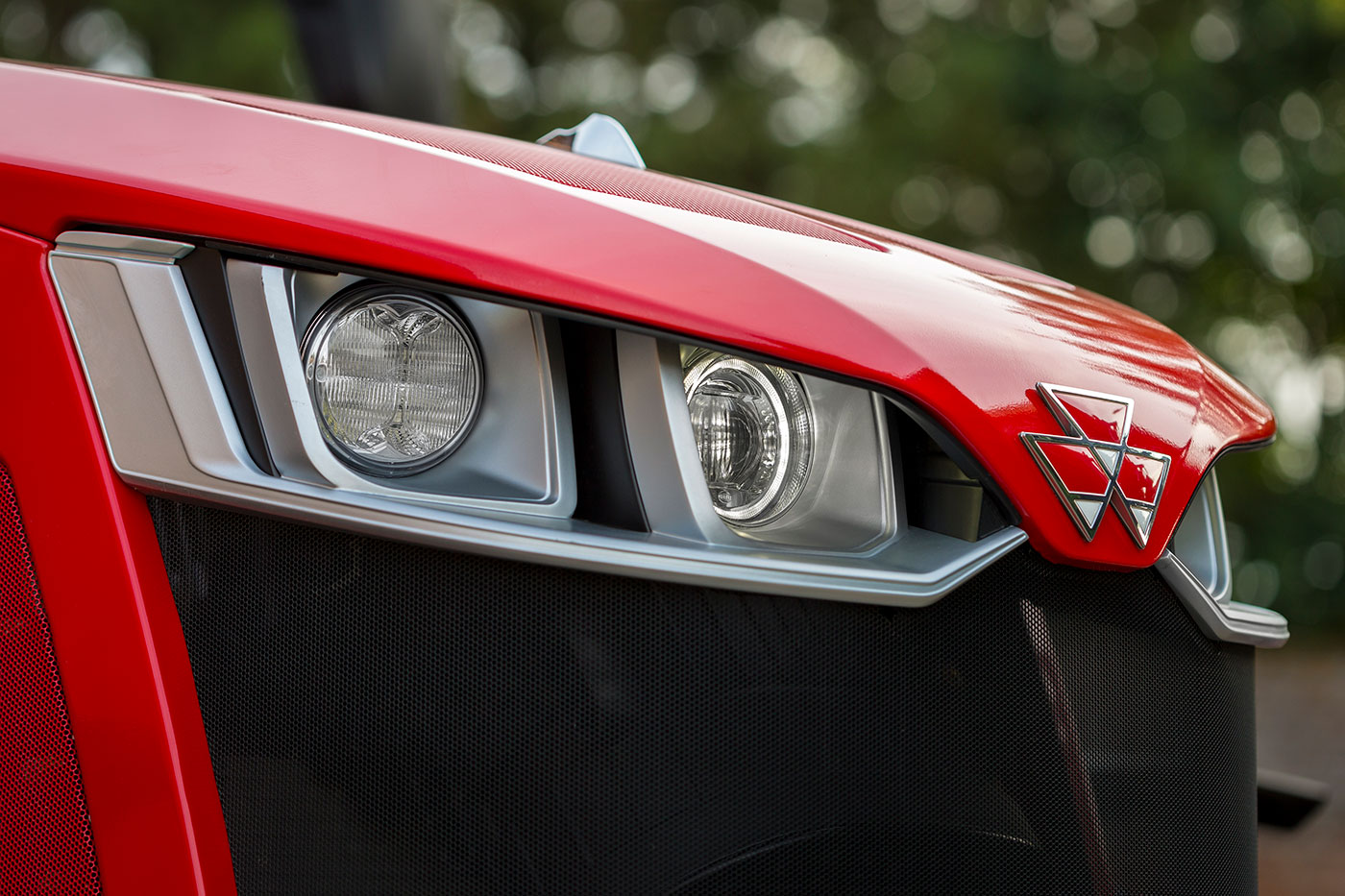

Outside, up to 12 LED lights turn night into day with outstanding brilliance and very low energy consumption The LED package is also visibly striking during daylight hours, as their design enhances the tractor‘s external appearance.

Modern implements are placing more and more demands upon the tractors that power them, which in turn, are asked to perform faster and respond better. The MF 7700 S comes with an immense capability to easily handle heavy-duty applications with outstanding lift and drive capacities for the very latest implements.

Load Sensing Hydraulic System

The MF 7700 S provides a load sensing hydraulic system as standard, delivering 110 lit/min (standard), 150 lit/min (optional) or 190 lit/min (Dyna-VT only).

REAR LINKAGE CAPACITY

The rear linkage offers a lifting capacity of 9,300 kg on MF 7720 S & MF 7722 S, and 9,950 kg on MF 7724 S & MF 7726. A total of up to five spool valves are available.

Electronic Linkage Control - ELC

The industry leading ELC is provided as standard. The system provides precise and responsive control of linkage functions ensuring accurate management of working depth for soil engaging implements.

Integrated Front Linkage System

A heavy duty Integrated Front Linkage System (IFLS) is available as an option and is designed to match the front suspension.

Accurate Draft Control

Massey Ferguson’s Electronic Lift Control (ELC) system gives the highest standards of draft control with more accurate depth settings.

2.88M WHEELBASE

The long wheelbase – 2.88m – ensures superior traction, while optimal weight distribution of very nearly 50:50 provides reassuring stability.

Dual Control

Dual Control can be achieved by adding this exclusive MF option, to ensure total synchronisation of both front and rear linkages via a single command. This is particularly effective in boosting efficiency on headlands.

Front PTO System

With the aim of offering extra flexibility, a front PTO system is also available. This makes the tractor more versatile.

Quadlink2 Suspension System

All models benefit from the Quadlink2 suspension, boosting both comfort levels for the operator and overall machine maneuverability and productivity.

Rear Hitches

The rear hitch with a choice of pintle pin, pick-up hitch, clevis, K80 ball or drawbar has been completely redesigned to make coupling quicker, easier and safer.

Active Transport Control

When driving across the headland or transporting heavy mounted equipment, implement ‘bounce’ can occur. Active Transport Control is a shock absorbing system which minimises the ‘pitching’ action – automatically adjusting for different implement weights.

Simple Daily Maintenance

The one-piece bonnet allows easy access to all the key service elements and the cooling system, which is positioned for quick and easy daily cleaning. The fuel fill-up point and tool box are easily accessible for optimum convenience.

The on and off-board technology solutions incorporated into the MF 7700 S Series are a clear indication of the pace of progress and innovation setting by Massey Ferguson. Information is power when it comes to get the job done more efficiently and more productively. This is the reason why Massey Ferguson delivers straightforward and dependable technology solutions resulting in unbeatable ease of use, improved productivity and profitability through higher yields, lower inputs costs and greater profits.

MF Connect

The MF Connect service enables you and your dealer to coordinate, optimize and seamlessly connect your fleet to manage maintenance and remotely monitor equipment in the field.

Fieldstar 5

The new optional Fieldstar 5 terminal is straightforward to use and is designed to create a more intuitive Precision Farming experience for the operator.

MULTIPAD CONTROL LEVER

From the control lever you have access to all the major functions of the tractor in one location.

MF Task Doc

TaskDoc records data quickly and easily to create field records, make job reports and keep accurate records of inputs. This information can be transferred simply, wirelessly from the terminal in a format compatible with most farm management software.

MF Guide

Massey Ferguson’s complete guidance system for hands-free steering, available factory fit on new tractors or as an after-market installation. The system uses Trimble - RangePoint, Trimble - CenterPoint and RTK corrected signals to increase efficiency.

AgControl

With the fully automatic Section Control for ISOBUS implements, operators can apply seeds, fertilizer or pesticides without overlapping.

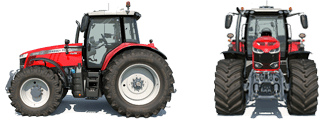

Available Models

Model	Max Power hp (kW)*	Engine	Transmission	Max Torque (Nm)**	Lift Capacity (kg)
MF 7720 S	200 (147)	AGCO Power 6.6 L, 6 cylinder	Dyna-6, Dyna-VT	923	9,300
MF 7722 S	215 (158)	AGCO Power 6 cylinder, 7.4 Litre	Dyna-6, Dyna-VT	974	9,300
MF 7724 S	235 (173)	AGCO Power 6 cylinder, 7.4 Litre	Dyna-6, Dyna-VT	1,030	9,950
MF 7726 S	255 (188)	AGCO Power 6 cylinder, 7.4 Litre	Dyna-6, Dyna-VT	1,050	9,950
* @ 1950 rpm \| ** @ 1,500 rpm
