MF 2200

Products

Outstanding Performance

Introducing the MF 2200

The Complete Package

The MF 2200 Series inherits the superior design of it's predecessor, the MF 2100 Series and includes additional features to further enhance performance.

These square balers make dense, well-formed bales, and are renowned for their reliability, longevity and low cost of ownership.

Key Benefits

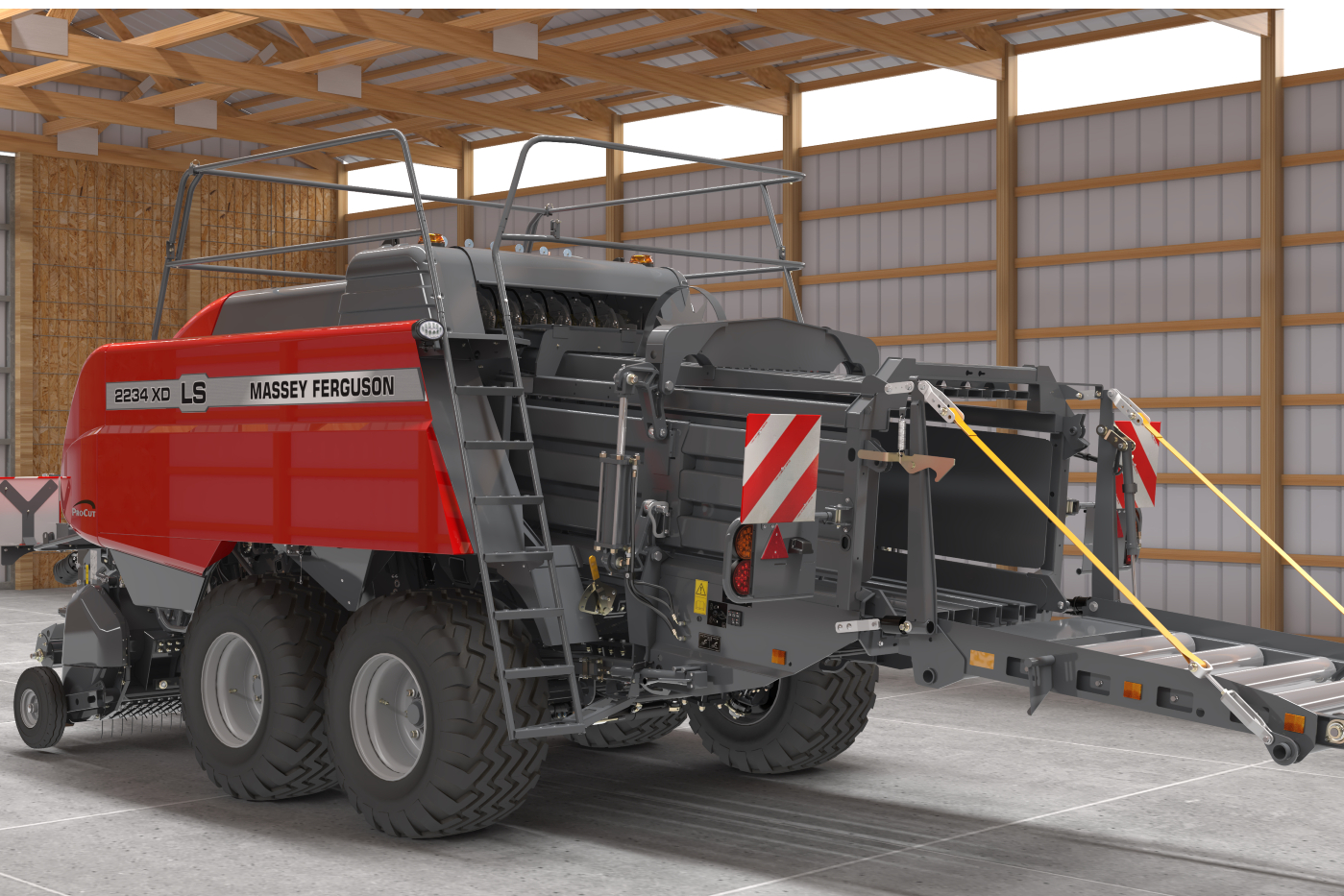

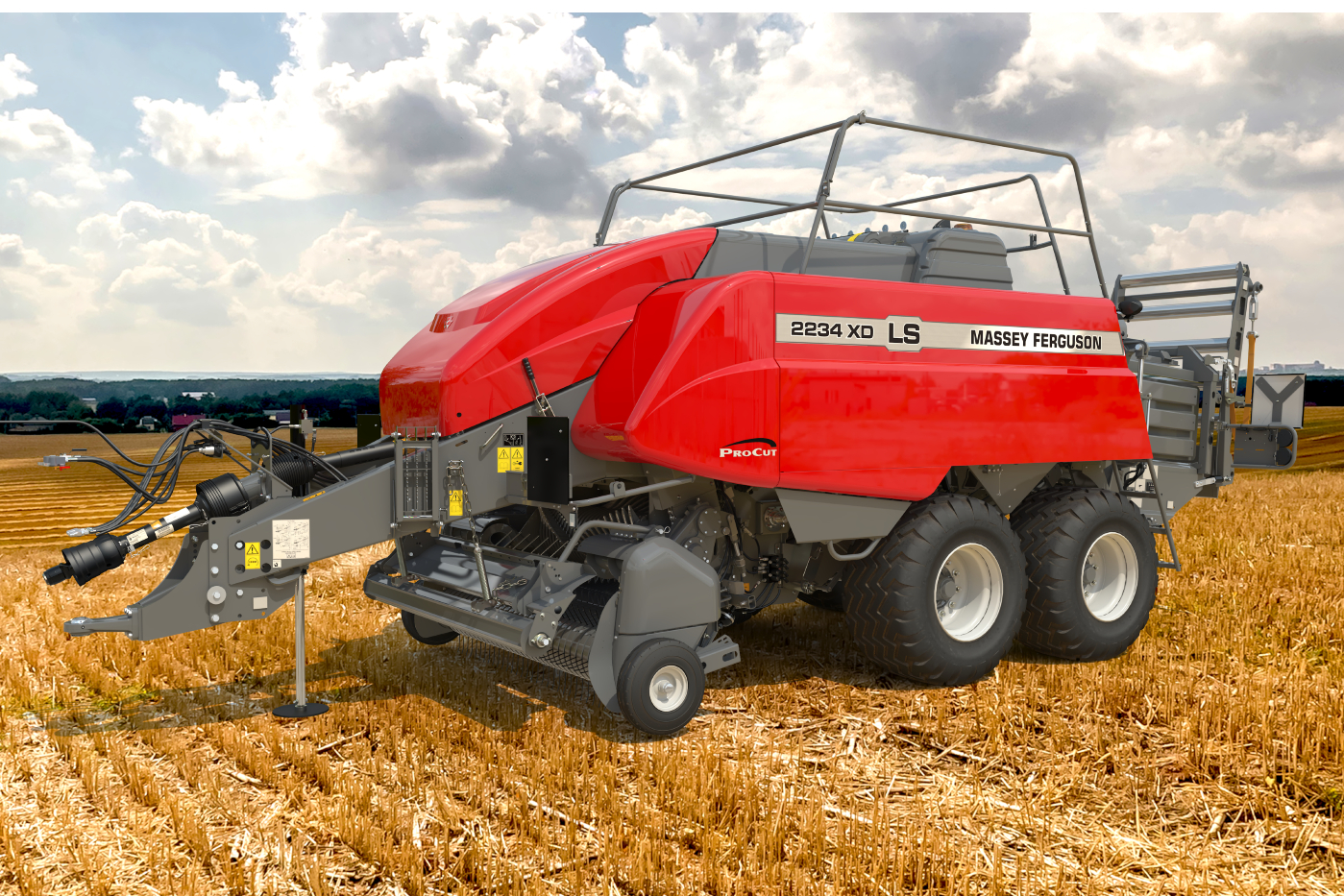

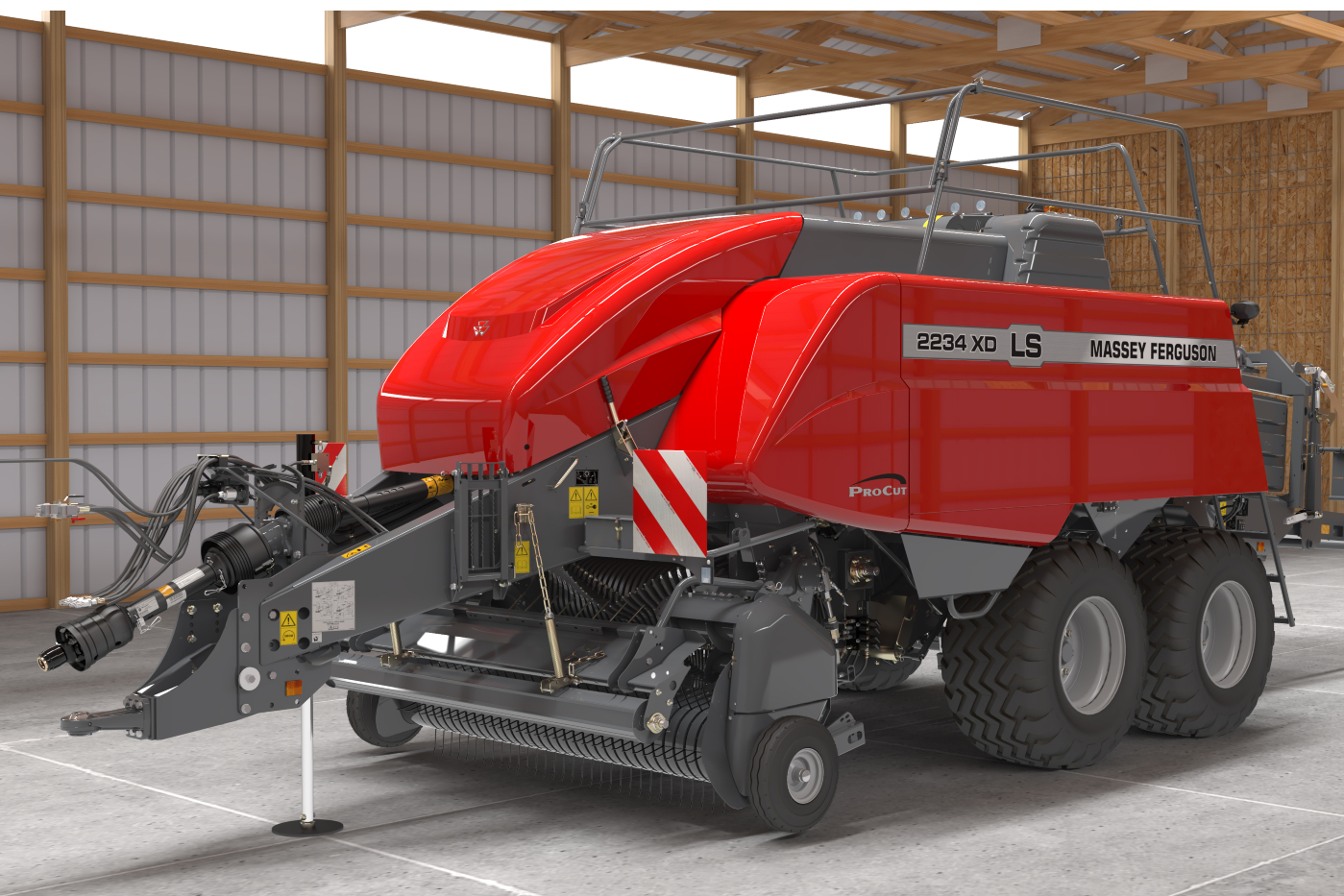

Image Gallery

Technology & Innovation

If you want consistently high output and superior bales, you need the right equipment.

ProCut

ProCut chops the crop to your required length and the packer tines ensure high capacity crop transition into the pre-compression chamber.

ProCut Knives

The MF 2250 have a cutter with 17 knives, whilst the MF 2260, MF 2270 and MF 2270 XD all have 26 knives. All knives engaged gives a chop length of 43.5mm and with a single knife-bank engaged 87mm.

Load Cells within Connecting Rods

Contained in these are load cells that measure the load on the plunger face. Information from the load cells is used to control the automatic density control system and also provides the operator with driving arrow guides if uneven swaths are encountered.

Pre-Compression Chamber

Massive capacity, industry leading bale density and superb shape all stem from the award-winning pre-compression chamber design.

Plunger

Driven by an enormous gearbox with massive strength, the plunger is connected via two heavy duty connecting rods.

Hydraulic Accumulators

Each bank of knives is protected by hydraulic accumulators that provide a very responsive safety system should a foreign object enter the cutting area.

Stuffer Fork

Only when the chamber is perfectly full will the trip door activate, and the stuffer fork powers the fully formed flake into the bale chamber.

OptiForm Bale Chamber

The MF 2270 XD and the MF 2290 baler feature the new OptiForm bale chamber, which ensures ‘Optimal Formation’ of the bale on these high capacity and high density models.

OptiForm Bale Chamber - Longer Doors

The doors on these two models are significantly longer than the previous models and have a refined profile which improves bale compression, ensuring even better bale shape and consistent density throughout the bale.

Packer System

The packer system ensures consistent flake formation producing perfect bale shape regardless of windrow shape and density.

MF 2270 XD Model

The MF 2270 XD has immense capabilities and easily produces between 15% and 20% more material per bale (than the standard MF 2270 model baler).

MF 2270 XD Bales

Designed specifically to lower transport costs with 1.2m x 0.90m bales, this machine produces much denser and heavier bales, further helping to optimise transport space and cut costs.

Pick-Up Capacity

One of the most impressive features on any MF 2200 Series model is the pick-up. The sheer volume of crop that each of these machines can consume has to be seen to be believed.

Double Acting Density Rams

Double acting density rams apply pressure to both the side and top chamber doors to give consistent bale density all controlled automatically via the Fieldstar 5 terminal.

Roller Crop Press Windguard

Even though the pick-up capacity is great, the windguard with the roller crop press ensures it is still gentle on the crop.

MF 2250 Procut Pick-up (1)

The new design of top auger has been optimised to provide a more even feed into the cutter rotor and work more efficiently in a wider range of crops and conditions.

MF 2250 Procut Pick-up (2)

The flighting on the auger will ensure positive feeding from the outside of the pick-up. The centre feeder bars help to feed the crop under and into the ProCut rotor. Also ensures an even feed into the cutting rotor of this narrower (80cm wide) machine.

C1000 Baler Monitor

The high quality, easy-to-read colour screen couldn’t be clearer, whatever time of the day or night, and the baler itself is fully ISO-compliant so it can be used on any tractor with an ISO VT terminal.

Video Cameras

The baler is pre wired in readiness for a video camera which can be displayed on the video compliant Fieldstar 5 terminal in cab.

Bale Weighing System

The Integrated Bale Weighing System weighs the bale as it exits the chamber onto the roller bale chute.

MF Fieldstar 5 Terminal (1)

For Model Year 2022 the new FieldStar 5 terminal will be standard equipment. With its 23cm (9”) touchscreen full colour display the user interface is easy read and control the baler whatever time of the day or night.
